Ubiquiti

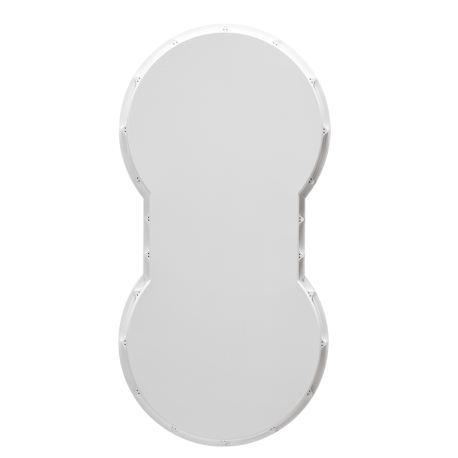

AirFiber5U 5.7-6.2GHz 1Gbps+ Backhaul 5GHz one unit

Specifications Dimensions 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08") Weight 16 kg (35.27 lb) Mount Included Max. Power Consumption 40 W Power Supply 50V, 1.2A PoE GigE Adapter (Included) Power Method Passive Power over Ethernet (42-58VDC) Certifications CE,... läs mer
Artikelnummer: UBI-AF-5U
Utgått ur sortimentet

Specifications

  • Dimensions 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08")
  • Weight 16 kg (35.27 lb) Mount Included
  • Max. Power Consumption 40 W
  • Power Supply 50V, 1.2A PoE GigE Adapter (Included)
  • Power Method Passive Power over Ethernet (42-58VDC)
  • Certifications CE, FCC, IC
  • Mounting Pole Mount Kit (Included)
  • Wind Loading 863 N @ 200 km/hr (194 lbf @ 125 mph)
  • Wind Survivability 200 km/hr (125 mph)
  • Operating Temperature -40 to 55° C (-40 to 131°F)

LEDs (12) Status LEDs:

  • Data Port Link/Activity
  • Data Port Speed
  • Management Port Link/Activity
  • Management Port Speed
  • GPS Synchronization
  • Master/Slave
  • Link Status
  • Modulation Mode 0.25x to 4x, 6x, 8x, 10x (Unlabeled), Overload
  • Remote and Local Displays (Calibrated Signal Strength)

Operating Frequency

  • FCC 15.247, IC RSS 21: 5725 - 5850 MHz
  • ETSI EN 302 502: 5725 - 5875 MHz
  • Other Regions: 5725 - 6200 MHz

Interface

  • Data Port (1) 10/100/1000 Ethernet Port
  • Management Port (1) 10/100 Ethernet Port
  • Auxiliary Port (1) RJ-12, Alignment Tone Port

System

  • Maximum Throughput 1.2+ Gbps
  • Maximum Range 100+ km (Dependent on Regulatory Region)
  • Packets per Second 1+ Million
  • Encryption 128-Bit AES
  • Uplink/Downlink Ratio 50% Fixed
  • Radio Frame Synchronization GPS
  • Dynamic Frequency Selection
  • CE, (FCC/IC Not Applicable)
  • GPS Clock Synchronization

Transceiver

  • EIRP ~50 dBm (Dependent on Regulatory Region and Frequency Band)
  • Frequency Accuracy ±2.5 ppm without GPS Synchronization
  • ±0.2 ppm with GPS Synchronization
  • Channel Bandwidth 10/20/30/40/50 MHz

Modulation

  • 1024QAM MIMO
  • 256QAM MIMO
  • 64QAM MIMO
  • 16QAM MIMO
  • QPSK MIMO
  • ½ Rate QPSK xRT
  • ¼ Rate QPSK xRT

Integrated Split Antenna

  • TX Gain 23 dBi
  • RX Gain 23 dBi
  • Beamwidth 6°
  • Front-to-Back Ratio 70 dB
  • Polarity Dual-Slant Polarization
  • Cross-Polarity Isolation > 28 dB
