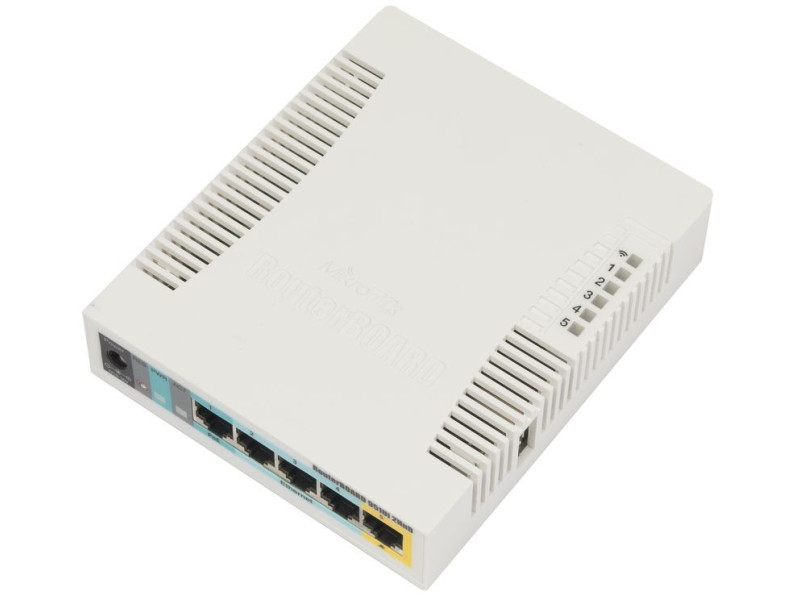

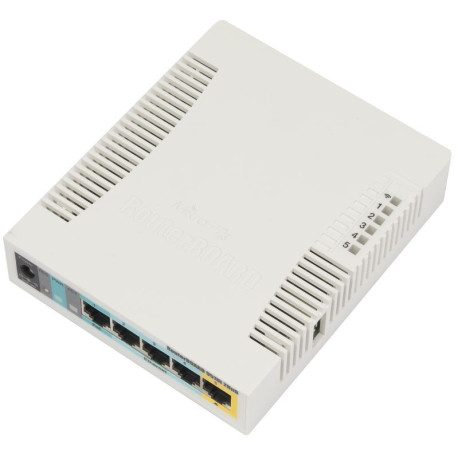

Mikrotik RB951ui-2HnD with 5xLAN w1xPOEout bgn radio 600MHz

Artikelnummer: RB951Ui-2HnD
Lagersaldo: 29st
The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in. It has a 600MHz CPU,128MB of RAM and PoE output funct... läs mer
683 kr
Ord. pris 790 kr
Kampanjpriset utgår om 7 dagar eller så långt lagret räcker.

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in.

It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.

Specifications
Product code RB951Ui-2HnD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 113x138x29mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -20C +50C
Powering
PoE in Passive PoE
PoE out Passive PoE
PoE in input Voltage 9-30 V
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 9-30 V
Max out per port output (input < 30 V) 500 mA
Max total out (A) 500 mA
Max power consumption 6.5 W
Wireless
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz standards 802.11b/g/n
Wi-Fi generation 4
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz chip model AR9344
Ethernet
10/100 Ethernet ports 5
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 25 -80
MCS0 30 -96
MCS7 23 -78
Specifications
Product code RB951Ui-2HnD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 113x138x29mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -20C +50C
Powering
PoE in Passive PoE
PoE out Passive PoE
PoE in input Voltage 9-30 V
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 9-30 V
Max out per port output (input < 30 V) 500 mA
Max total out (A) 500 mA
Max power consumption 6.5 W
Wireless
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz standards 802.11b/g/n
Wi-Fi generation 4
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz chip model AR9344
Ethernet
10/100 Ethernet ports 5
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 25 -80
MCS0 30 -96
MCS7 23 -78
