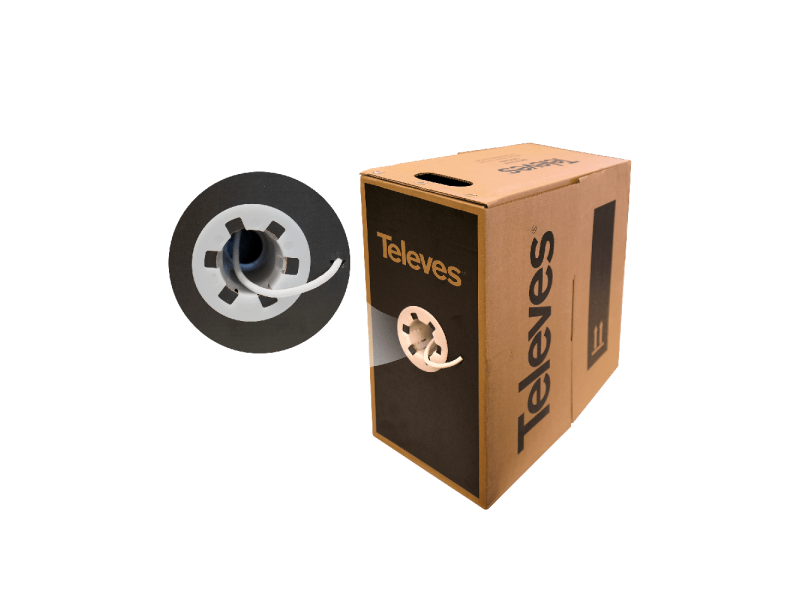

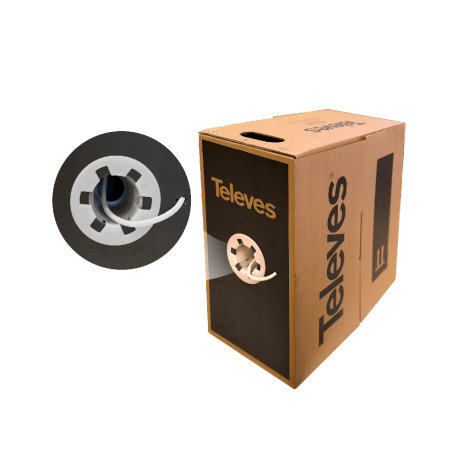

Network cable Cat6 U/UTP 305m drum LSFH 24AWG
Network cable Cat6 U/UTP 305m drum LSFH 24AWG
Televes

Network cable Cat6 U/UTP 305m drum LSFH 24AWG

Article no.: DK6000
Delivery time: Back order item

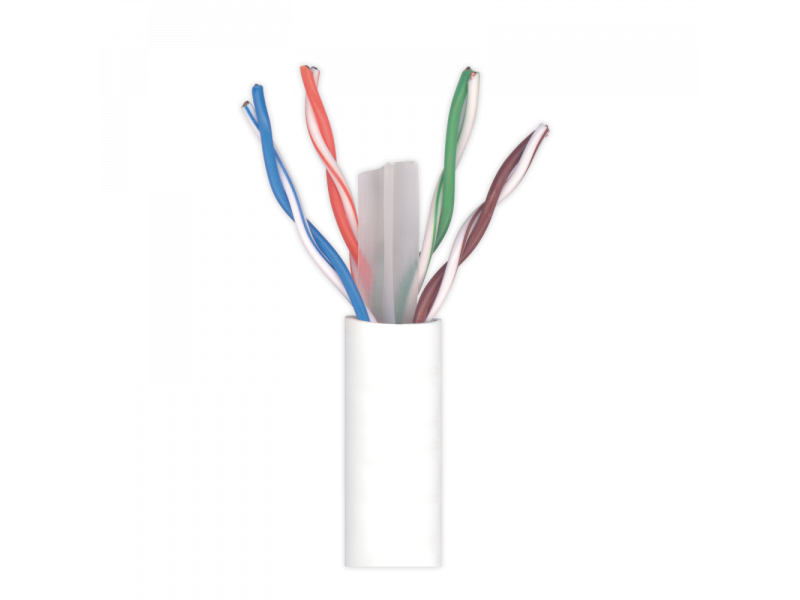

Cat 6 data cable meets the standard for Gigabit Ethernet cabling and is backward compatible with Cat 5/5e. Category 6 is an improvement over Category 5e, enabling transmission frequencies up to 250 MHz (per pair) and a data capacity of 1 Gbps. It is manufactured with characterist... read more
1 690 kr

Cat 6 data cable meets the standard for Gigabit Ethernet cabling and is backward compatible with Cat 5/5e. Category 6 is an improvement over Category 5e, enabling transmission frequencies up to 250 MHz (per pair) and a data capacity of 1 Gbps. It is manufactured with characteristics and specifications designed to minimize crosstalk and interference. This type of data cable can be used in 10BASE-T, 100BASE-T, and 1000BASE-T compatible systems.

Key features of our Category 6 (Cat6) cable:

  • Complies with TIA/EIA-568B.2-1

  • Transmission speed up to 1 Gbps

  • Frequency range up to 250 MHz (and up to 400 MHz in some references)

  • Includes an extra rip cord for easier stripping

  • Nominal impedance: 100 ohms

  • Maximum resistance per conductor: < 9.38 ohms/100 m

  • U/UTP data cable

  • Solid copper conductor (24 AWG)

  • Technically compatible with PoE/PoE+/PoE++ (Power over Ethernet), allowing network devices to be powered via the data cable

  • LSFH (Low Smoke Free of Halogen) outer jacket

  • 72% nominal velocity of propagation

  • Certified according to applicable regulations as defined in Declarations of Conformity, with performance documentation available

  • Tested and approved by Intertek (ETL Verified Mark) according to the available certification
