Sierra Wireless XR80 5G LTE WiFi
Sierra Wireless XR80 5G LTE WiFi
Sierra Wireless

Sierra Wireless XR80 5G LTE WiFi

Article no.: 1104787
Delivery time: Est. delivery 7d

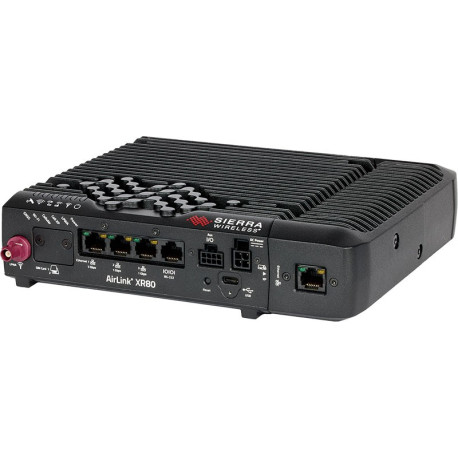

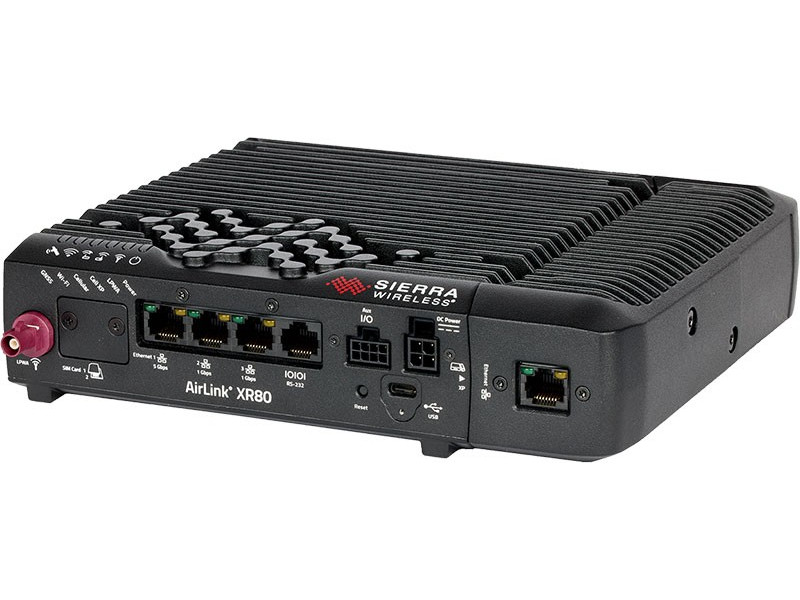

Sierra AirLink XR80 is a high-performance 5G LTE vehicle multi-network platform designed to provide secure, continuous connectivity for critical applications in public safety, transportation and field services. With expandable multi-network connectivity, the XR80 offers 5G LTE 4x... read more
24 939 kr

Sierra AirLink XR80 is a high-performance 5G LTE vehicle multi-network platform designed to provide secure, continuous connectivity for critical applications in public safety, transportation and field services.

With expandable multi-network connectivity, the XR80 offers 5G LTE 4x4, dual independent Wi-Fi 6 AP/STA and Ethernet (1x5Gbps, 2x1Gbps), with additions for Land Mobile Radio (LMR) and satellite systems.

AirLink XR80 offers up to 4 Gbps downlink and 660 Mbps uplink speed over 5G LTE Sub-6, 4x4 MIMO 802.11ax Wi-Fi 6 up to 2.4Gbps and 3-port Gigabit Ethernet. AirLink XR80 can manage up to 128 clients simultaneously and connect several mission-critical applications in and around the vehicle.

AirLink XR80 is designed for power supply in vehicles and does not require an external power source. It is optimized to survive extreme power spikes, temperatures and is sealed to meet IP64 and exceeds MIL-STD-810G specifications. The XR80 is also suitable for railway applications and is EN50155 certified.

The XR90 offers built-in vehicle-ready I/O, Bluetooth and vehicle telemetry interfaces and enables remote monitoring of devices and can collect vehicle OBD-II telemetry data.

p>

Supplied with DC cable only, antennas not included.

Supplied with 1 year AirLink Complete

  • AirLink Management Service (ALMS)
  • Direct 24/7 Technical Support
  • 1-year standard warranty

< p>Key Features:

  • 5G LTE - XR80 supports 5G LTE up to 4 Gbps downlink and 660 Mbps uplink.
    • < li>802.11ax Gigabit Wi-Fi 6 - 4X4 MIMO AP/STA and 1x1 MIMO STA, Dual Band 2.4/5GHz wireless network with speed up to 2.4 Gbps and 128 simultaneous users, WWPA2 Enterprise. WiFi as WAN and Captive Portal.
  • Power consumption - Powered by 7-36VDC and only requires about 55 mW in standby.
  • Extremely durable< /strong> - Built to withstand voltage drops down to 5V and withstand current spikes from -600 VDC to +200 VDC.
  • IP64 rated and exceeds MIL-STD-810G specifications for shock and vibration. Train certified EN50155.
  • Extra reliable - Possibility of automatic restart of the SIM card, radio module and the entire router if necessary. The router will do everything it can to keep communication going. Hardware and Software Watchdogs.
  • Vehicle I/O - Equipped with dual RS-232 serial ports, a digital I/O port for equipment monitoring.
  • High security - Comes with features such as port filtering and trusted IP that protect against intrusion.
  • VPN - XR80 provides secure and reliable VPN functionality for up to 10 simultaneous IPsec, GRE and OpenVPN sessions.
  • Remote administration - Can be remotely administered and monitored directly or via AirLink Mobility Manager (AMM) (See accessories).
    • li>

Product sheet PDF (English)

Product specification PDF (English)

Start guide PDF (English)< /a>

Online Manual (English)

Learn more about AirLink Mobility Manager (AMM)

LTE categories (LTE CAT) with speed

Read more about 4G / LTE bands and all frequencies

< tr> < /tr> < td valign="top"> < td valign="top">
Frequency band 600 MHz (5G)
< /td> 700 MHz (5G + 4G)
< /td> 800 MHz (5G + 4G + 3G)
850 MHz (5G + 4G + 3G)
900 MHz (5G + 4G + 3G)
1800 MHz (5G + 4G + 3G)
1900 MHz (5G + 4G + 3G)
2100 MHz (5G + 4G + 3G)< /td>
2600 MHz (5G + 4G)< /td>
2300, 2500, 3500, 3700, 4700 MHz (5G)
Transmission technology 5G (LTE/Sub-6), 4G (LTE Cat 20), UMTS (3G) with HSPA+
Firewall Yes, NAT mode or fully transparent mode.
Speed 5G (L TE) - Receive: 4.14 Gbps, Transmit: 660 Mbps
WLAN Dual radio 802.11 b/g/n/ax WiFi 6 (2.4 and 5 GHz simultaneously), 2.4 Gbps
Up to 128 simultaneous WLAN clients, Wi-Fi as WAN
WLAN Security WPA2 Enterprise, Captive Portal
VPN Protocol IPSec IKEv1/IKEv2 (3DES/AES128/AES256) Up to 10 IPSec tunnels
GRE/SSL
GPS 48 channels GNSS GPS, GLONASS, BeiDou , Galileo
Bluetooth Yes
Connections 3 pcs RJ45 (1x 5Gbps, 2x 1Gbps)
1 RS-232 serial port via Eth. 1 pc USB 3.2 type-C
1 I/O via power connector. Digital/analog input.
Working temperature - 30°C to +70°C
Power Supply 7-36V DC (DC cable included)

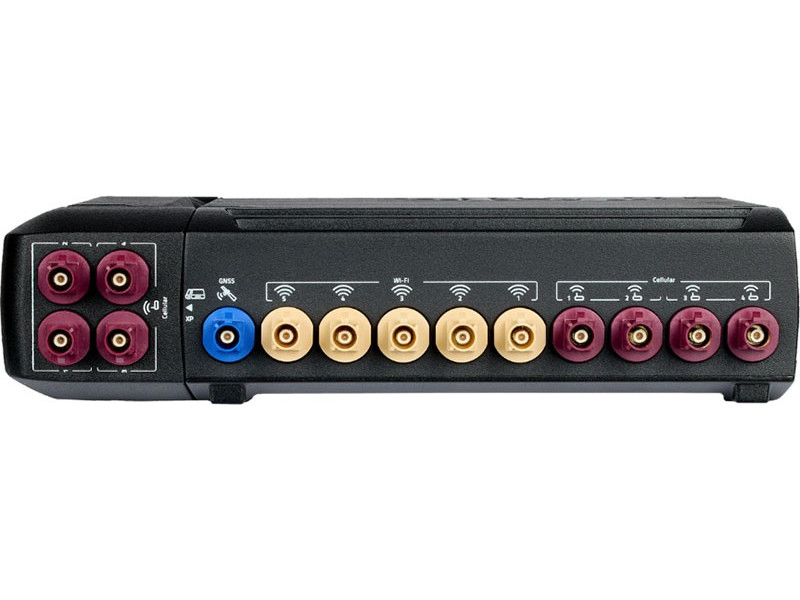

Antenna connection Cellular/Mobile 4 pcs FAKRA D-male, GPS 1 pc FAKRA C-male, WiFi 5 pcs FAKRA I-male
SIM card 2pcs Standard
DIN Bracket Accessories
Size/Weight 220 x 220 x 53 mm / 2.64kg
Supplied with DC cable, antennas and power adapter not included.
