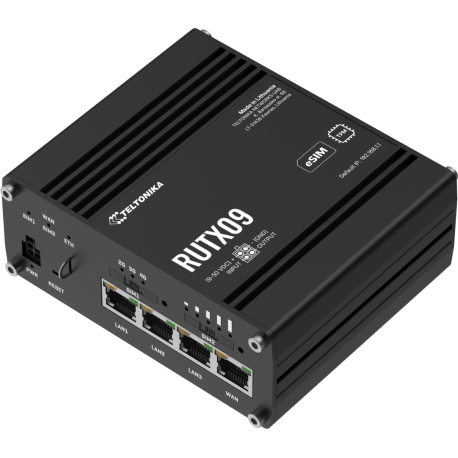

Teltonika RUTX09 LTE Cat6 router with dual SIM cards

Article no.: RUTX09
Delivery time: Unconfirmed
Data sheet
Quick Start Guide
Manual
Fyler
RUTX09 from Teltonika, reliable LTE Cat6 3G/4G router The router has 3 Gigabit LAN ports for connection to computer/printer or other. 1st WAN port for connecting e.g. ADSL modem or similar increases reliability. If, for example, the fiber connection goes down, 3G/4G automatica... read more
3,350 kr

RUTX09 from Teltonika, reliable LTE Cat6 3G/4G router

The router has 3 Gigabit LAN ports for connection to computer/printer or other. 1st WAN port for connecting e.g. ADSL modem or similar increases reliability. If, for example, the fiber connection goes down, 3G/4G automatically takes over. This router has 2 slots for SIM cards, the router can alternate between SIM cards based on availability. The WAN port can also be configured as a LAN port to get a total of 4 LAN ports.

Can be bridged to provide public IP from mobile broadband to an underlying device, eg computer or router. Teltonika RUTX09 also has a built-in GPS receiver to be able to deliver GPS position for display in either the router's admin page or to a third-party application

OpenVPN server and Site-To-Site VPN over GRE or IPSEC< /strong>
Built-in vpn servers to avoid an extra vpn box in your network. You can either use OpenVPN server to connect clients directly to the router, or configure Site-To-Site VPN over GRE / IPSEC tunnels, or combine these. Of course, the router also supports VPN passthrough for any existing VPN server.

Really stable in operation
The product is built to be as stable and reliable as possible. A built-in watchdog checks both hardware and software and can restart the router if, for example, network access would be lost. You can also restart it via SMS. It is also possible to connect an extra internet source in addition to 3G/4G. You choose which is primary, and if one goes down, the other automatically takes over.

Support for DDNS
Dynamically update a domain name to always have the same address to the router. All services that follow the DDNS standard are supported.

Ping reboot
Configure the device to automatically reboot upon loss of internet connection.

Other
SMA connectors (2 pcs main+aux) for 3G/4G antenna
3 antennas included (2 pcs 3G/4G / 1 pcs GPS)
This router has no WiFi access point

MOBILE
Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch (planed) 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed)
Black/White list Operator black/white list
Multiple PDN (planed) Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
ETHERNET
WAN 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover
Load balancing Balance your Internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
Authetication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port based and tag based VLAN separation
Mobile quota control Set up custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously
Stunnel (planed) Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
MONITORING & MANAGEMENT
WEB UI HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069 (planed) OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
Modbus (planed) Modbus TCP status/control, master and slave modes
MQTT MQTT Broker, MQTT publisher
RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH memory 256 MB SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided (planed)
LOCATION TRACKING
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server software Supported server software: TAVL, RMS
Mobile Network Geolocation Get approximate device location on RMS based on mobile cell tower position (without using GPS)
Geofencing Configurable multiple geofence zones
USB
Data rate USB 2.0
Applications Samba share (planed), custom scripts (planed)
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS
INPUT/OUTPUT
Input 1 x Digital Input
Output 1 x Digital Output
Events SMS, Email, RMS
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
Power consumption 11 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/Os 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 4 pin DC connector
Antennas 2 x SMA for LTE, 1 x SMA for GNNS
USB USB A port for external devices
Reset Factory reset button
PHYSICAL SPECIFICATION
Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 44 mm (H x W x D)
Weight 456 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory CE/RED, EAC, RoHS, WEEE
EMI IMMUNITY
Standards Draft EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0
EN61000-4-2:2009 ESD
RS EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge protection EN 61000-4-5:2014
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2014
RF
Standards EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.2, EN303 413 V1.1.1
SAFETY
Standards IEC 62368-1:2014, EN 62368-1:2014 + A11:2017
EN 50665:2017, EN 62311:2008
MOBILE
Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch (planed) 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed)
Black/White list Operator black/white list
Multiple PDN (planed) Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
ETHERNET
WAN 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover
Load balancing Balance your Internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
Authetication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port based and tag based VLAN separation
Mobile quota control Set up custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously
Stunnel (planed) Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
MONITORING & MANAGEMENT
WEB UI HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069 (planed) OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
Modbus (planed) Modbus TCP status/control, master and slave modes
MQTT MQTT Broker, MQTT publisher
RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH memory 256 MB SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided (planed)
LOCATION TRACKING
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server software Supported server software: TAVL, RMS
Mobile Network Geolocation Get approximate device location on RMS based on mobile cell tower position (without using GPS)
Geofencing Configurable multiple geofence zones
USB
Data rate USB 2.0
Applications Samba share (planed), custom scripts (planed)
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS
INPUT/OUTPUT
Input 1 x Digital Input
Output 1 x Digital Output
Events SMS, Email, RMS
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
Power consumption 11 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/Os 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 4 pin DC connector
Antennas 2 x SMA for LTE, 1 x SMA for GNNS
USB USB A port for external devices
Reset Factory reset button
PHYSICAL SPECIFICATION
Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 44 mm (H x W x D)
Weight 456 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory CE/RED, EAC, RoHS, WEEE
EMI IMMUNITY
Standards Draft EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0
EN61000-4-2:2009 ESD
RS EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge protection EN 61000-4-5:2014
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2014
RF
Standards EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.2, EN303 413 V1.1.1
SAFETY
Standards IEC 62368-1:2014, EN 62368-1:2014 + A11:2017
EN 50665:2017, EN 62311:2008

Write a review

Explanation of frequency bands

When choosing an antenna, pay attention to which frequency bands the antenna supports. Depending on which operator and where the antenna will be used, the frequency bands vary. Larger cities use 2600MHz while smaller towns use 800/900MHz with some support bands in between such as 1800/2100MHz.

A higher frequency band gives a higher speed but also has a shorter range. The same applies to the antenna, if you have a base station that transmits on 2600MHz, your antenna, antenna cable and the location of the antenna become more important than on a lower frequency band. Explanation of signal loss we will go through soon. Higher frequency bands also mean shorter range from the base station.

450MHz (coverage band) also known as the Net1 band is the frequency band that covers the most area in Sweden. Therefore, Net1 is known to be able to have reception where other operators don´t have a chance, but with low download and upload speeds. The reason why this band is called Net1 is because that the company Net1 has exclusive rights to this frequency band.

800MHz (coverage band) is used by all common operators, excluding Net1. The low frequency band means that 800MHz covers a lot of space. Therefore, the band is used outside big cities or smaller towns. 800MHz is the most used frequency band around Europe.

900MHz (coverage band) is the band that Tele2 and Telenor initially used as coverage band. 900MHz is a more unusual LTE band and in the beginning the band caused some problems when the clients (mobile phones etc.) could not connect to 900MHz. Today, the mobile phone manufacturers have adapted the mobile phones to be able to communicate on 900MHz.

1800MHz (capacity band) is the latest frequency band launched. All operators today use this band in metropolitan centers (apart from Net1).

2600MHz (capacity band) is a very well-used frequency band all over Europe. 2600MHz is the highest frequency band used for LTE, this means that the band also has the shortest range compared to 800/900MHz. Due to the high capacity, the band is used in metropolitan environments where many base stations are required to cover as much surface as possible and have as high a capacity as possible.

Frekvensplan 4G

Frequency band Net1 Tele2 Telia Telenor Tre
450MHz (Band 31)
800MHz (Band 20)
900MHz (Band 8)
1800MHz (Band 3)
2600MHz (Band 38)
