Antennkabel 10m XXX400 (0,19dB/m) SMA Hane-Hona

Article no.: KBL-010U
Availability: 16st

10 meter antenna cable of Ultra Low Loss type SMA male-female. Attenuation approx. 0.19 dB/meter at 2100 MHz. The cable is significantly thicker than normal antenna cable (approx. 10 mm thick) but still relatively bendable and flexible. Total attenuation on the entire cable (10 m... read more

890 kr

10 meter antenna cable of Ultra Low Loss type

SMA male-female. Attenuation approx. 0.19 dB/meter at 2100 MHz.

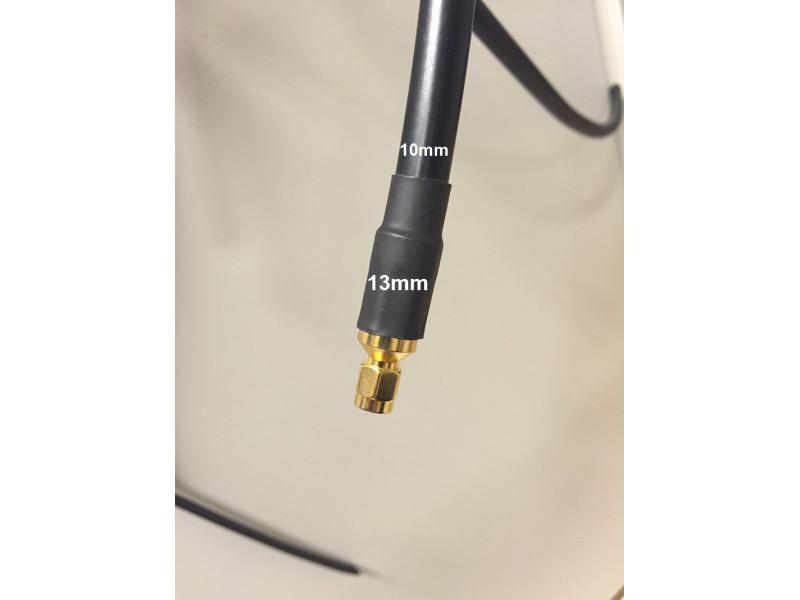

The cable is significantly thicker than normal antenna cable (approx. 10 mm thick) but still relatively bendable and flexible. Total attenuation on the entire cable (10 meters) is 1.9 dB, which is extremely low at these frequencies (2170 MHz). More cables can be spliced together, but remember to try to avoid a splice outdoors.

We have many different manufacturers and suppliers of antenna cable and we always ensure that our cable meets the specification of 400-degree cable regardless of whether it says CLF/LMR/SRF/KSR on the cable itself. The names are just trademarks from different manufacturers and nothing differs in terms of specifications between an LMR400 and an SRF400. See specification below.

Teknisk Specifikation
Kabelkvalité	Ultra Low Loss 400-grade
Dämpning	30 MHz - 0,024 dB/m 50 MHz - 0,030 dB/m 150 MHz - 0,050 dB/m 220 MHz - 0,061 dB/m 450 MHz - 0,089 dB/m 900 MHz - 0,128 dB/m 1500 MHz - 0,168 dB/m 2000 MHz - 0,196 dB/m 2500 MHz - 0,222 dB/m 5800 MHz - 0,355 dB/m
Impedans	50 Ohm vid 200MHz
Temperatur	-40 till +85 grader (installation + drift)
Kabellängd och tjocklek	10 m 10 mm Ø
Kontakter	SMA-Hane till SMA-Hona

Teknisk Specifikation

Kabelkvalité

Ultra Low Loss 400-grade

Dämpning

30 MHz - 0,024 dB/m
50 MHz - 0,030 dB/m
150 MHz - 0,050 dB/m
220 MHz - 0,061 dB/m
450 MHz - 0,089 dB/m
900 MHz - 0,128 dB/m
1500 MHz - 0,168 dB/m
2000 MHz - 0,196 dB/m
2500 MHz - 0,222 dB/m
5800 MHz - 0,355 dB/m

Impedans

50 Ohm vid 200MHz

Temperatur

-40 till +85 grader (installation + drift)

Kabellängd och tjocklek

10 m
10 mm Ø

Kontakter

SMA-Hane till SMA-Hona

Teknisk Specifikation
Kabelkvalité	Ultra Low Loss 400-grade
Dämpning	30 MHz - 0,024 dB/m 50 MHz - 0,030 dB/m 150 MHz - 0,050 dB/m 220 MHz - 0,061 dB/m 450 MHz - 0,089 dB/m 900 MHz - 0,128 dB/m 1500 MHz - 0,168 dB/m 2000 MHz - 0,196 dB/m 2500 MHz - 0,222 dB/m 5800 MHz - 0,355 dB/m
Impedans	50 Ohm vid 200MHz
Temperatur	-40 till +85 grader (installation + drift)
Kabellängd och tjocklek	10 m 10 mm Ø
Kontakter	SMA-Hane till SMA-Hona
