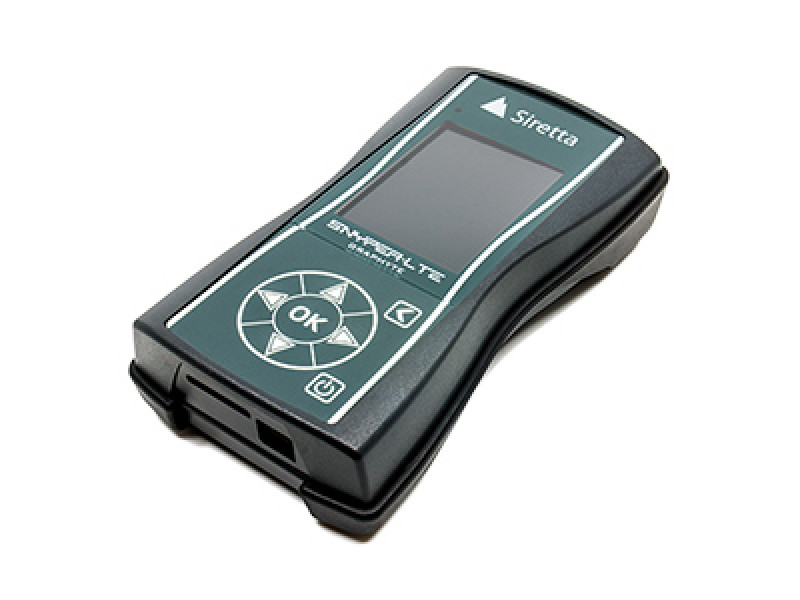

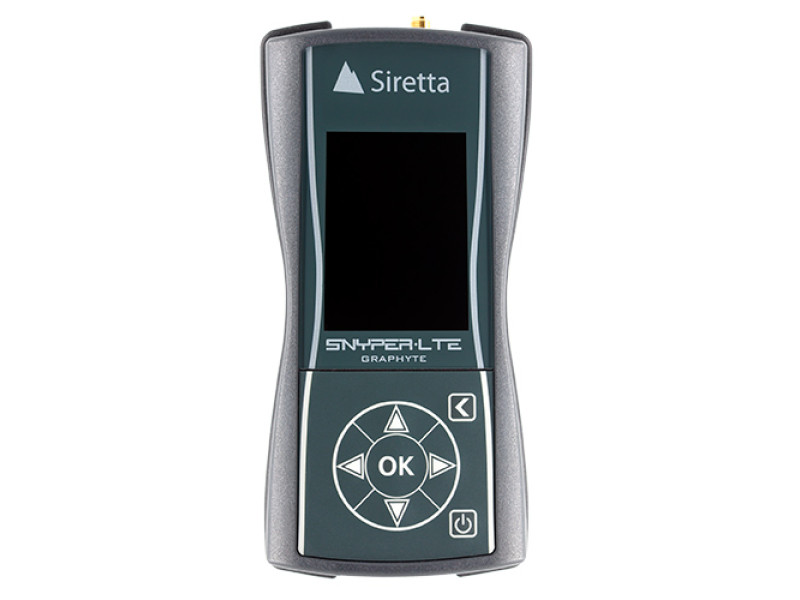

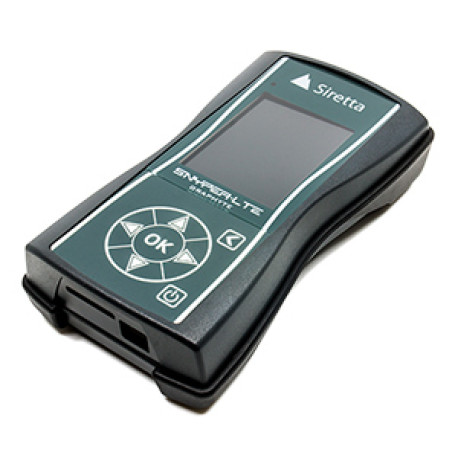

Siretta Snyper LTE+ Graphyte v2

Article no.: 61764
Delivery time: Est. delivery 7d
Advanced Mobile Network Meter - Sierra Snyper LTE+ Graphyte is a 4G/3G/2G signal strength and signal quality measurement tool. The instrument is specially designed to check mobile coverage for 3G calls/telephony but also works as a directional tool for mobile data antennas. Store... read more
20 819 kr

Advanced Mobile Network Meter - Sierra Snyper LTE+ Graphyte is a 4G/3G/2G signal strength and signal quality measurement tool. The instrument is specially designed to check mobile coverage for 3G calls/telephony but also works as a directional tool for mobile data antennas.

Stores 100+ complete measurements.

The device can be used without a SIM card to quickly analyze which operators and frequencies are available at the location. You then get a list of all operators, signal strength and quality. You can also choose to specifically search for only 4G, 3G or 2G/GSM.

Unique with this model is the ability to lock on a cell and measure continuously with a graph.

In addition, can The Graphyte model saves up to 1000 continuous measurement points with signal strength/quality.

The model is hand-held and has a rechargeable Li-Ion battery that lasts for many hours.

The instrument has a standard antenna connector (SMA female) so you can connect directly to an external antenna for easy adjustment.

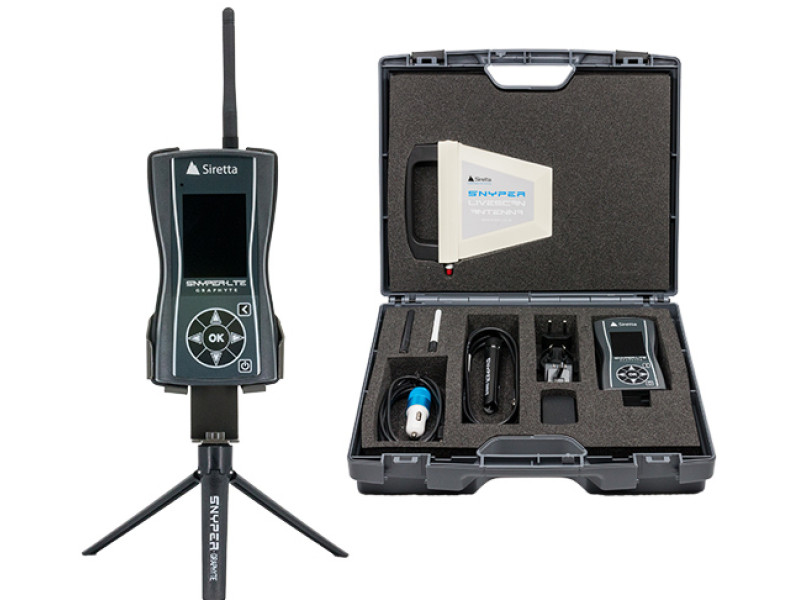

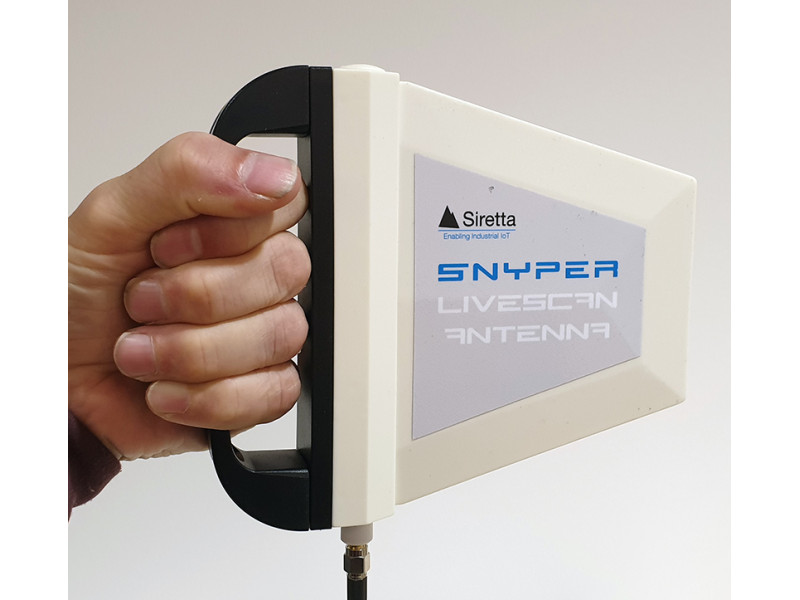

The package includes directional antenna with handle, rod antenna, power adapter, USB cable, bag and a tripod.

Features:

  • Export your measurements to a PC via the included USB cable. See example file in HTML format below.
  • Measurement of RSRQ or EC/IO values (signal/noise quality in LTE / UMTS).
  • Now shows both RSSI, RSRP / RSCP and RSRQ / Ec/Io

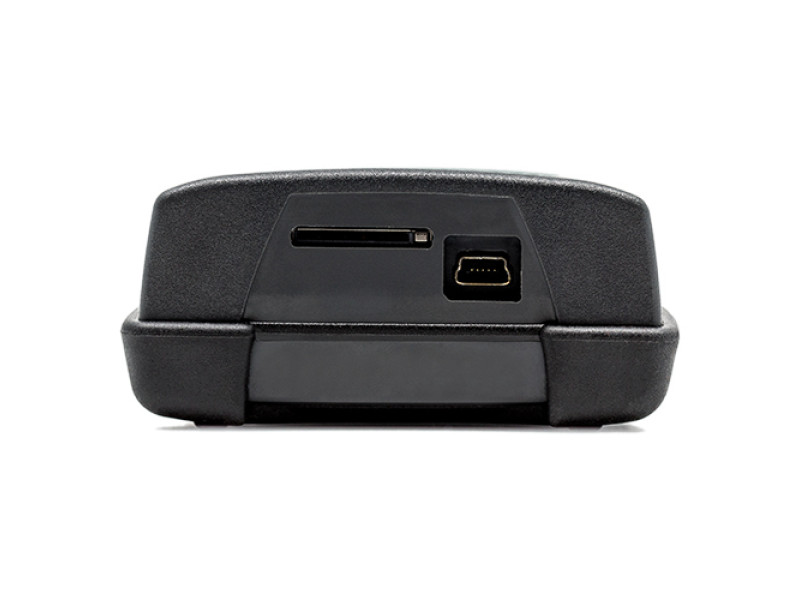

  • Mini USB connector also works for charging
  • Simultaneously measures 2G, 3G and 4G all frequency bands in one attempt.
< p>Areas of use:

  • Do a Site Survey of the best operators in the area in order to be able to choose the optimal provider of telephony services
  • Measure operators' signal over the time or when walking in a building.
  • Measure indoor 4G, 3G and GSM coverage
  • Measure signal strength and signal quality for best placement of external donor antenna for 3G repeater
  • li>
  • Measure the best location/direction (strength and quality) for 4G antennas for routers including information about frequency bands
  • Align directional antenna for repeaters. Not only to find the strongest transmitter but also to minimize crosstalk to/from other base stations.
  • Check repeater installation and repeater coverage indoors.

Siretta offers a portal where you can upload their measurements and let the portal calculate the locations of the base stations on a map based on the measurements that have been made. The more measurements uploaded, the better the accuracy. You as a user buy extra tokens on the portal to be able to upload and check your measurements. NOTE works best at slightly longer distances from the base stations. For example when targeting repeaters.

Siretta Snyper LTE Graphyte v2 61764

Product sheet PDF (English)

Manual PDF (English)

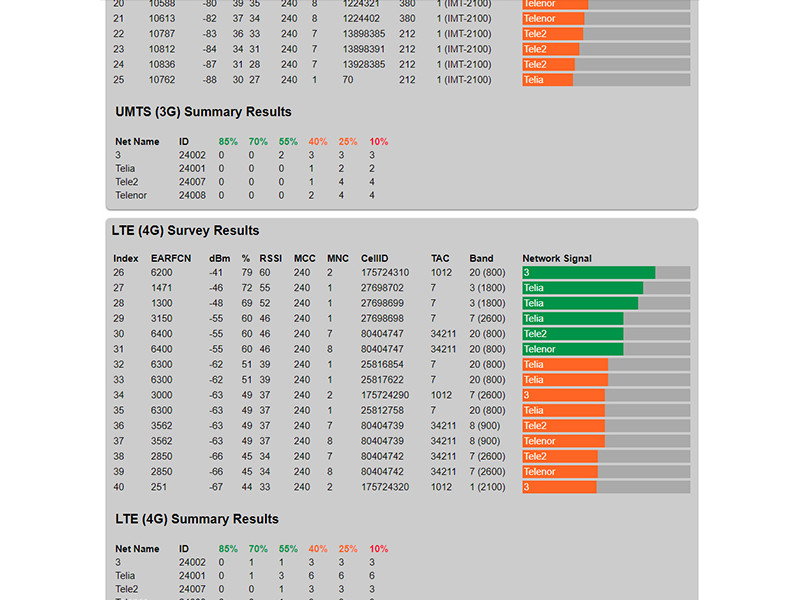

Example of export of measurement to PC (HTML)

Read more about 4G/LTE bands and frequencies

Read more about Swedish operators' bands, frequencies and common networks

< tr>
Frequency bands 700MHz (4G)
800MHz (4G)
90 0MHz (4G, 3G and GSM)
1800MHz (4G, 3G and GSM)
2100MHz (4G, 3G)
2600MHz (4G)
Antenna connection SMA female
Size 141 x 76 x 36 mm
Weight 200g
Comes with Directional antenna, rod antenna, power adapter, USB cable, bag< /td>
