TFA Weatherhub Temperaturvakt - Starter-kit med en temperatursensor med vattentät prob för värmesystem

Use the WEATHERHUB OBSERVER web platform for professional heating monitoring and documentation. The starter set includes a thermo-hygro transmitter for measuring the room air (temperature and humidity). At the same time, the temperature can be measured at a measuring point aroun... läs mer
Artikelnummer: 31.4016.02
Leveranstid: 5-15 dagar
999 kr

Use the WEATHERHUB OBSERVER web platform for professional heating monitoring and documentation.

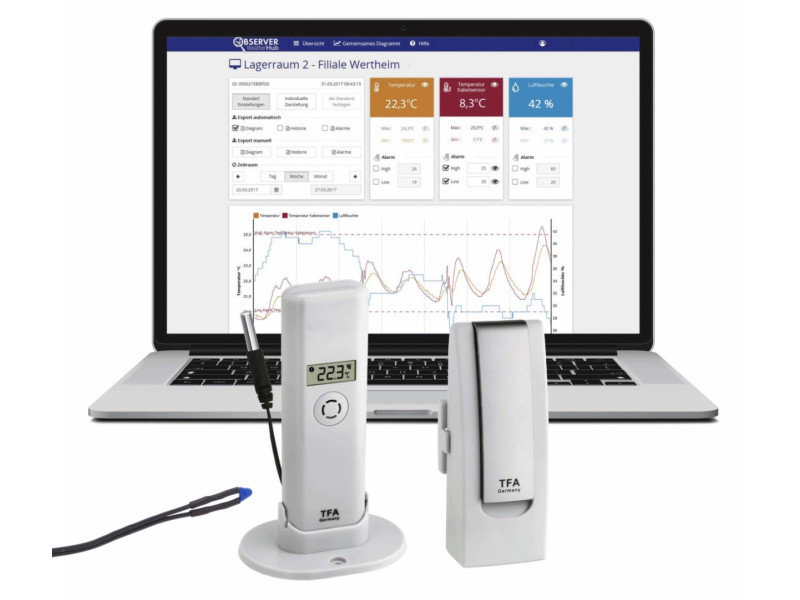

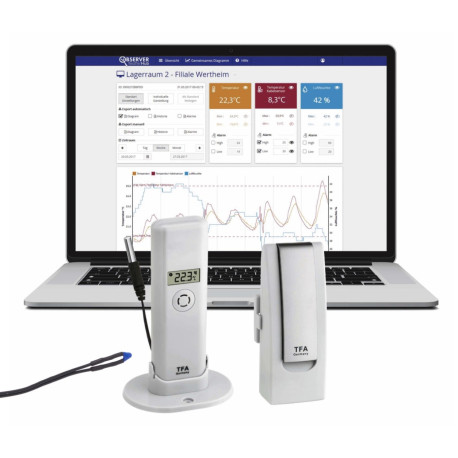

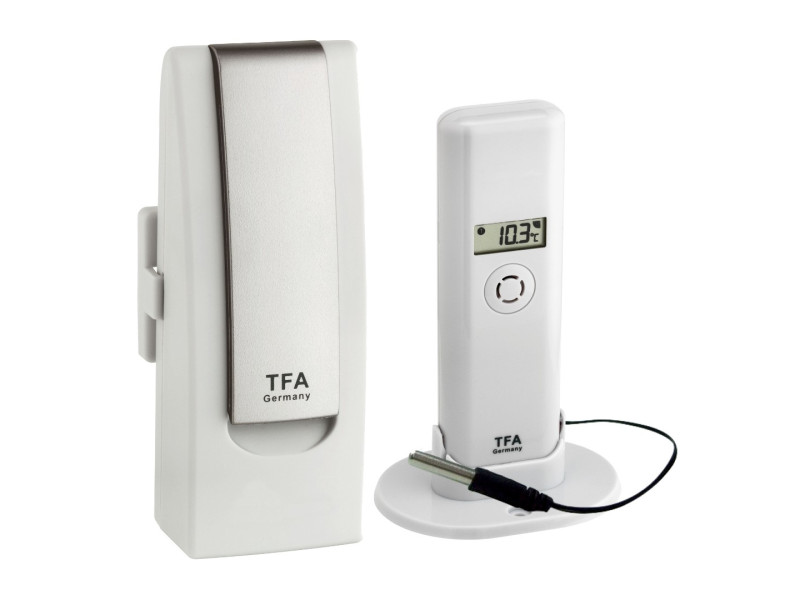

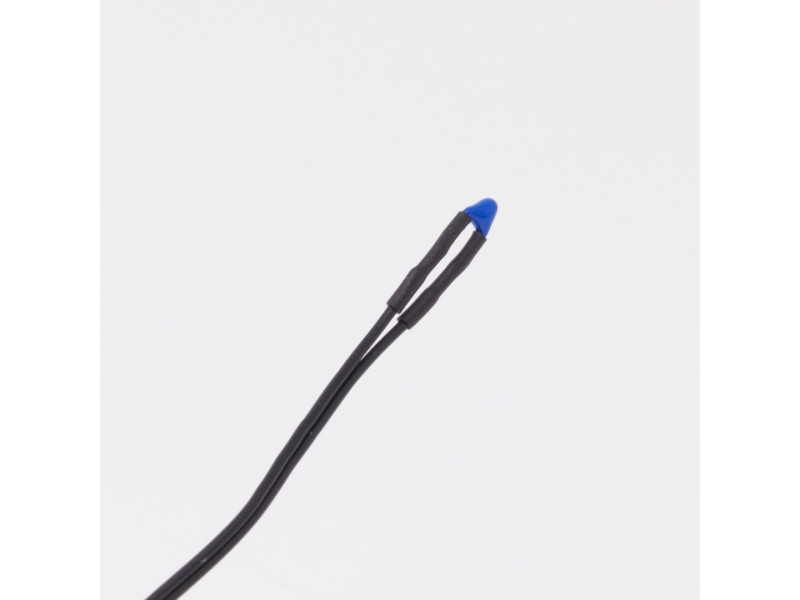

The starter set includes a thermo-hygro transmitter for measuring the room air (temperature and humidity). At the same time, the temperature can be measured at a measuring point around the heating system using the special extra-flat cable sensor. The mounting and insulation materials are included. As standard, the set also includes a waterproof professional temperature cable sensor, which can be used for other purposes as an option.

The wireless sensors send their measured values directly to a server via the gateway module and the Internet. There all data is available for at least 90 days.
Via the WEATHERHUB OBSERVER platform www.wh-observer.de the measured values can be called up at any time and from anywhere in the world via PC, tablet or smartphone and numerous additional functions can be used.

The values are displayed as a clear diagram that can be set to specific time intervals (day, week or month). The data can be exported graphically as PDF or as CSV file in text format. The export files can be sent by e-mail. The monitoring can be automated and there are extensive possibilities for setting up alerts. The platform is free of charge and requires no additional usage fee or subscription costs. Up to 50 transmitters can be connected.

The clear measured values can also be monitored with the WeatherHub App (available for iOS & Android).

Teknisk Specifikation
Delivery contents Gateway, temperature/humidity transmitter with professional cable-sensor, special extra-flat temperature cable sensor, power adapter, LAN cable, 2 x insulating adhesive pads, cable ties, instruction manual
Measuring range temperature Transmitter: -40...+60°C (-40...+140°F), cable sensor: -50...110°C (-58...230°F)
Measuring range humidity 0...99%
Cable length ca. 1.5 m
Maximum range 200 m
Transmitter included in delivery 30.3302.02
Transmission frequency 868 MHz
Material Plastic
Power consumption Power adapter, batteries
Batteries 2 x AAA 1.5 V (transmitter)
Batteries included No
Dimensions Gateway 40 (44) x 28 (32) x 104 mm
Weight Gateway 66 g, set 528 g
Teknisk Specifikation
Delivery contents Gateway, temperature/humidity transmitter with professional cable-sensor, special extra-flat temperature cable sensor, power adapter, LAN cable, 2 x insulating adhesive pads, cable ties, instruction manual
Measuring range temperature Transmitter: -40...+60°C (-40...+140°F), cable sensor: -50...110°C (-58...230°F)
Measuring range humidity 0...99%
Cable length ca. 1.5 m
Maximum range 200 m
Transmitter included in delivery 30.3302.02
Transmission frequency 868 MHz
Material Plastic
Power consumption Power adapter, batteries
Batteries 2 x AAA 1.5 V (transmitter)
Batteries included No
Dimensions Gateway 40 (44) x 28 (32) x 104 mm
Weight Gateway 66 g, set 528 g
