SMLIGHT SMHUB Nano Mg24

Artikelnummer: SMHUB-NANOMG24
Lagersaldo: 9st
SMHUB Nano Mg24 - Compact Linux PoE Smart Hub with On-Device Automation The SMHUB Nano series consists of compact, Linux-based smart hubs designed for fully local automation workloads. Each SMHUB Nano runs SMHUB-OS, enabling advanced applications to run directly on the dev... läs mer
699 kr

SMHUB Nano Mg24 - Compact Linux PoE Smart Hub with On-Device Automation

The SMHUB Nano series consists of compact, Linux-based smart hubs designed for fully local automation workloads. Each SMHUB Nano runs SMHUB-OS, enabling advanced applications to run directly on the device itself - no external server, no Raspberry Pi, no cloud required.

With Zigbee2MQTT, Node-RED, MQTT, WireGuard, OpenThread, and other applications running locally, the SMHUB Nano functions as a complete automation controller.
Thanks to Matterbridge, the hub can also passthrough Zigbee devices into Google Home and Apple Home, enabling seamless control through modern Matter-capable ecosystems.

This makes SMHUB Nano ideal for integrators, OEM partners, installers, and advanced home users who require a powerful yet compact automation platform.

Product Highlights:

  • Core Platform
    • CPU: SG2000 (Dual-core ARM)
    • RAM: 512 MB LPDDR4
    • Internal Storage: eMMC (8Gb) + microSD slot (up to 2Tb)
    • Operating System: SMHUB-OS (Linux-based)
  • Triple-radio architecture:
    • Silicon Labs EFR32MG24 (Zigbee/Thread capable)
    • AICSemi AIC8800 (Wi-Fi, 2.4/5Ghz)
    • AICSemi AIC8800 (Bluetooth)
  • USB Host Mode (remote USB over LAN)
  • Ethernet connectivity (100 Mbps) for stable and interference-free operation
  • PoE support for simplified installations
  • Power
    • USB-C 5 V
    • PoE via PoE splitter
    • SMLIGHT UPS support via USB-C
  • High output power 5dB external antennas for extended coverage and improved mesh performance
  • Linux-Based Smart Hub (SMHUB-OS)
    • All automation software runs on-device
    • Integrated web dashboard
    • OTA updates for OS + apps + radio firmware
    • SSH for developers
  • On-Device Automation Software (preinstalled)
    • Zigbee2MQTT
    • Matterbridge → passthrough Zigbee devices to Google Home / Apple Home
    • Node-RED
    • Mosquitto MQTT Broker
    • WireGuard VPN
    • OpenThread tools
    • NodeJS & Python runtime environments

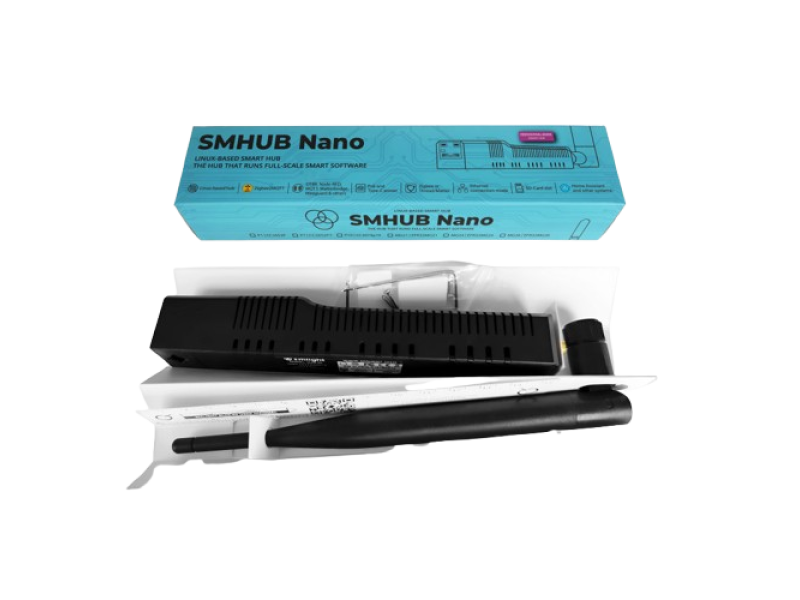

Packing content:

  • SMHUB Nano - 1 pcs
  • External antenna - 1 pcs
  • Double-sided adhesive sticks - 2 pcs
  • Screws - 2 pcs
  • Scredriver - 1 pcs
  • QR-link manual + screw helper - 1 pcs
  • Paperbox - 1 pcs
