Cable set for the accelerator pedal BMW F series

Article no.: 03-173-1
Availability: 86st
Cables with suitable connectors for connection to the accelerator pedal in the BMW F series. Fits both accelerator control 03-170 and H-CAN 03-140. NOTE! Don't forget to protect the connection to the car's original connector so it cannot be removed. E.g. with wire seal. Connectio... read more
390 kr

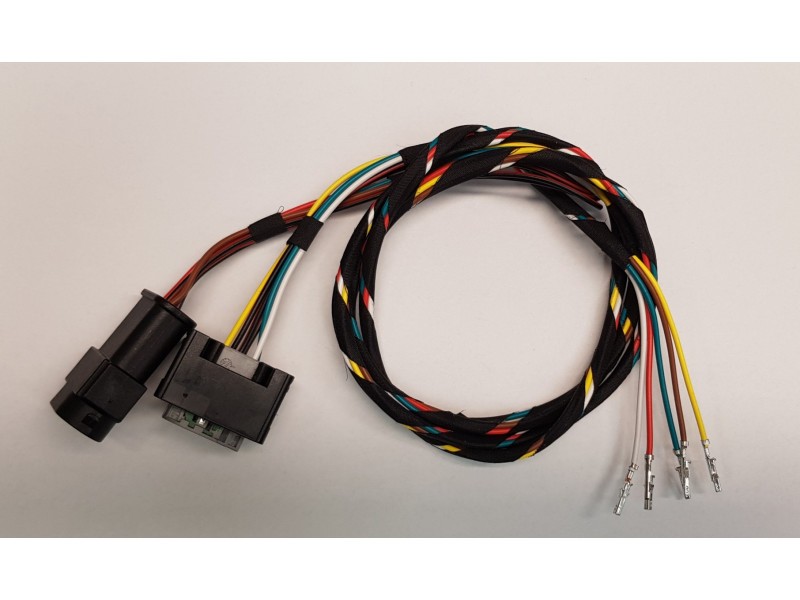

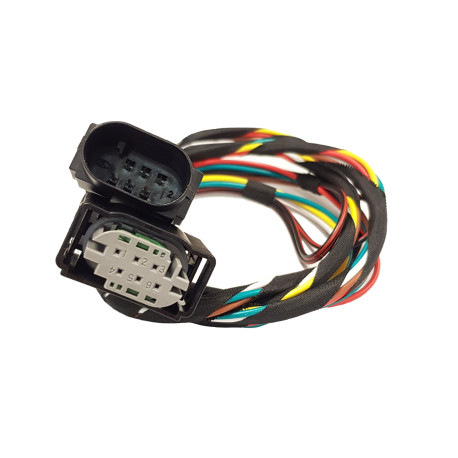

Cables with suitable connectors for connection to the accelerator pedal in the BMW F series. Fits both accelerator control 03-170 and H-CAN 03-140.

NOTE! Don't forget to protect the connection to the car's original connector so it cannot be removed. E.g. with wire seal.

Connection APP-Sensor (art no: 03-170)

< tr style="font-weight:bold;">
CABLE COLOR CONNECTION FUNCTION
BROWN IN 1 Sensor 1 in
ORANGE OUT 1 Sensor 1 out
WHITE IN 2 Sensor 2 in
YELLOW< /td> OUT 2 Sensor 2 out
GREEN 0V Ground< /td>

Connection H-CAN (art no: 03-140)

CABLE COLOR CONNECTION FEATURE
BROWN IN 1 Sensor 1 in
ORANGE OUT 1 Sensor 1 out
WHITE IN 2 Sensor 2 in
YELLOW OUT 2 Sensor 2 out
GREEN< /td> - Earth
