Lascar Electronics

EL-GFX-DTP tvåkanalig temperaturlogger med prob och skärm

Tvåkanalig temperaturlogger med probe och skräm This standalone USB data logger measures and stores over 250,000 temperature readings from two thermistor probes over a -40 to +125°C (-40 to +257°F) range at a resolution of 0.1ºC. EL-GFX-DTP Dual Channel Temperature ... läs mer
Artikelnummer: EL-GFX-DTP
Leveranstid: Obekräftat
Fri frakt
1 710 kr

Tvåkanalig temperaturlogger med probe och skräm

This standalone USB data logger measures and stores over 250,000 temperature readings from two thermistor probes over a -40 to +125°C (-40 to +257°F) range at a resolution of 0.1ºC.

EL-GFX-DTP

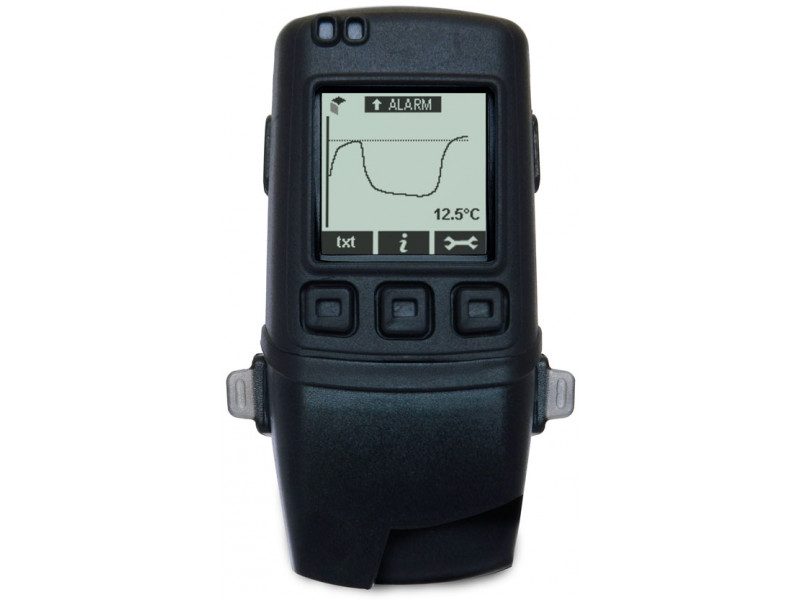

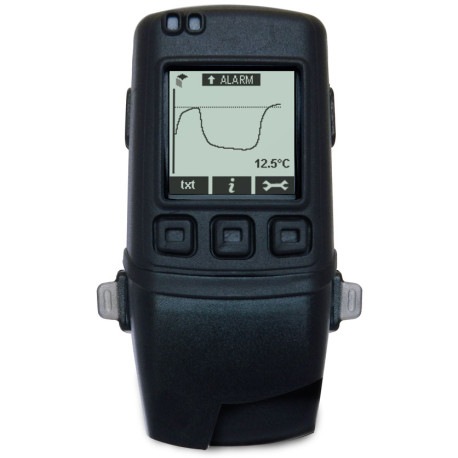

Dual Channel Temperature Probe Data Logger with Graphic Screen

  • Dual channel -40 to +125°C (-40 to +257°F) probe measurement range
  • Logging rates between 2 seconds and 1 hour
  • Immediate, delayed, push-button or temperature triggered start mode
  • Graphic LCD shows real-time readings, graph and current status
  • Stores over 250,000 readings per channel
  • Calibration certificate available

Using the Windows control software (available as a free download from www.easylogusb.com) the user can quickly set up the logger name, sample rate, alarm settings and start mode (immediate start, push to start, delayed start or temperature triggered start). This software can later be used to download the stored data which can be graphed, printed and exported to other applications.

The data logger features a dot-matrix LCD and three face-buttons to navigate through an on-screen menu. This menu provides the user with access to real-time trend analysis, data summaries and the ability to start, stop and restart the data logger without the need to connect the data logger to the host-PC. Users can reset the maximum/minimum reading using the on-screen menu; this introduces an ‘event marker’ into the data which can later be viewed in the graphing software (‘Mark Events’ option) and the data file after download.

The data logger is supplied with two replaceable ½AA batteries.

Specification Min. Typ. Max. Unit
Supplied probe measurement range -40 (-40)   +125 (+257) °C (°F)
Operating temperature range -10 (-14)   +40 (+104) °C (°F)
Internal resolution   0.1 (0.2)   °C (°F)
Accuracy (logger error)   ±0.1 (±0.2)*   °C (°F)
Logging rate Every 2s   Every 1hr -
1/2AA 3.6V lithium battery life   4**   Months
  • At 25°C. See probe accuracy curve on data sheet. Important - quoted accuracy is for the data logger only when measuring within the specified operating temperature. Thermistor error is not included and should also be taken into consideration
  • At 25°C and 10 minute logging rate, with no alarm LEDs or sounder and minimal LCD use
Specification Min. Typ. Max. Unit
Supplied probe measurement range -40 (-40)   +125 (+257) °C (°F)
Operating temperature range -10 (-14)   +40 (+104) °C (°F)
Internal resolution   0.1 (0.2)   °C (°F)
Accuracy (logger error)   ±0.1 (±0.2)*   °C (°F)
Logging rate Every 2s   Every 1hr -
1/2AA 3.6V lithium battery life   4**   Months
  • At 25°C. See probe accuracy curve on data sheet. Important - quoted accuracy is for the data logger only when measuring within the specified operating temperature. Thermistor error is not included and should also be taken into consideration
  • At 25°C and 10 minute logging rate, with no alarm LEDs or sounder and minimal LCD use
