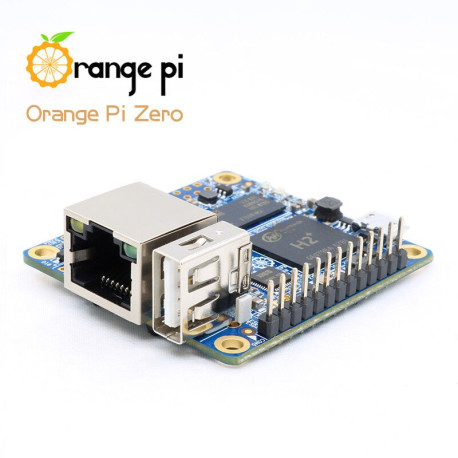

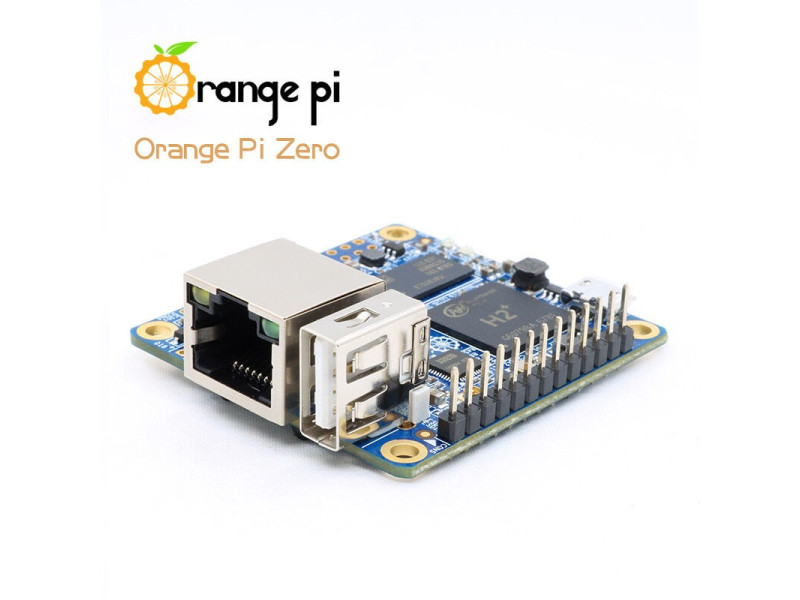

Orange Pi Zero LTS 512MB Development Board
Orange Pi

Orange Pi Zero LTS 512MB Development Board

Artikelnummer: OPI512DB
Utgått ur sortimentet

Orange Pi Zero LTS is an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian. It uses the AllWinner H2 SoC, and has 512MB DDR3 SDRAM, low running temperature and low power consumption.

Hardware specification:

  • CPU: H2+ Quad-core 4x1,20Ghz (ARM Cortex-A7)
  • GPU: ·ARM Mali 400 MP2 GPU @600MHz Supports OpenGL ES 2.0
  • Memory (SDRAM): 512MB DDR3 SDRAM (Share with GPU)
  • Storage: SD-Card (Max. 32GB) (not included in the scope of delivery)
  • Onboard Network: 10/100M Ethernet RJ45 / POE (deactivated)
  • Onboard WIFI: XR819, IEEE 802.11 b/g/n
  • Video Outputs: Supports external board via 13 pins
  • Power Source: Micro USB 5V 2A or Power over Ethernet (passive)
  • USB 2.0 Ports: 1x USB 2.0 HOST, 1x Micro USB 2.0
  • GPIO: 26 Pins Header, 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV)
  • LED: Power LED & Status LED
