Raspberry Pi Video Module PiNoir FYND

Artikelnummer: 790-2811-BULK
Utgått ur sortimentet

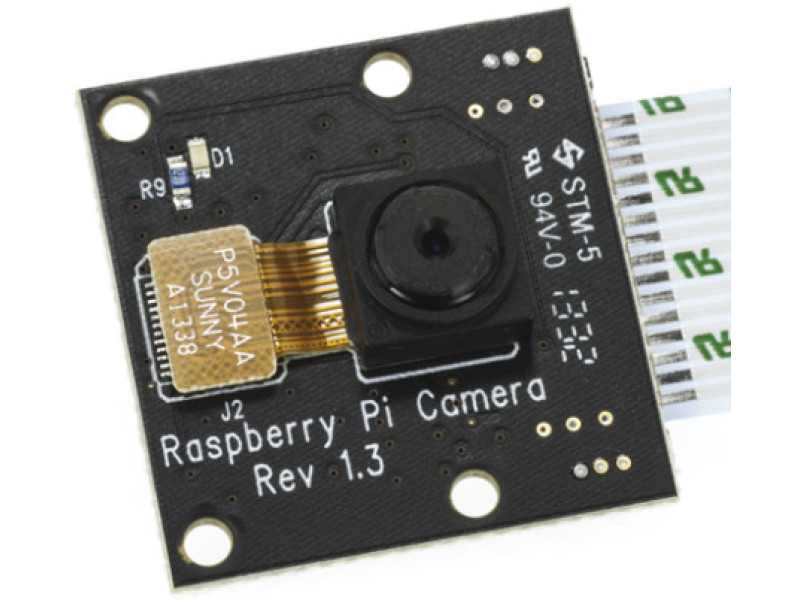

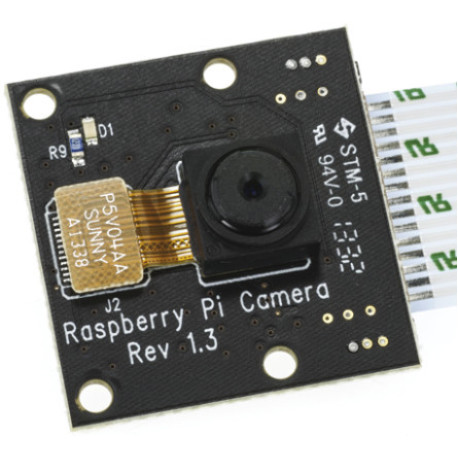

Raspberry Pi Video Module PiNoir

Anledning till nedsänkt pris är endast att förpackningen saknas. Ny.

Pi NoIR High-Definition Infrared-sensitive video camera for Raspberry Pi Model A, B, B+ and Compute.
Omnivision 5647 sensor in a fixed-focus module without infrared blocking filter
5MPixel sensor
Still picture resolution: 2592 x 1944
Max video resolution: 1080p
Max frame rate: 30fps @ 1080p
Size: 20 x 25 x 10mm
Connection by flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector S5 on Raspberry Pi computer board

Applications
Infragrams: Check on plant health. http://publiclab.org/wiki/near-infrared-camera
Astrophotography: improved sensitivity to hydrogen-alpha light for better pictures of red-emission nebulae
Night security: Keep watch for burglars without disturbing neighbours (Requires IR illumination, see Note)
Wildlife photography: Watch animals at night with a remote camera (Requires IR illumination)

Dimensions	20x25x10mm
Height	10mm
Length	25mm
Width	20mm
Maximum Frame Rate Capture	30 (1080p) fps, 60 (720p) fps
Maximum Operating Temperature	+70°C
Maximum Supported Resolution	2592 x 1944
Minimum Operating Temperature	-30°C
Supported Bus Interfaces	CSI-2
Type	Camera Module

Dimensions	20x25x10mm
Height	10mm
Length	25mm
Width	20mm
Maximum Frame Rate Capture	30 (1080p) fps, 60 (720p) fps
Maximum Operating Temperature	+70°C
Maximum Supported Resolution	2592 x 1944
Minimum Operating Temperature	-30°C
Supported Bus Interfaces	CSI-2
Type	Camera Module
