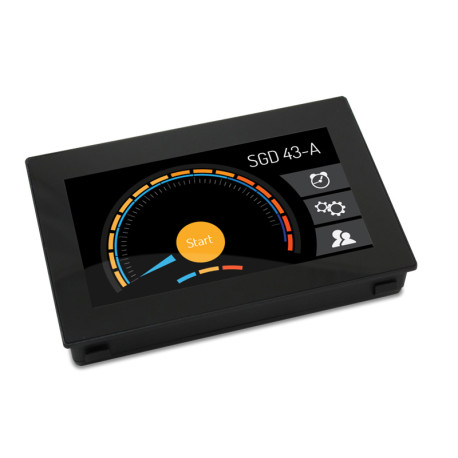

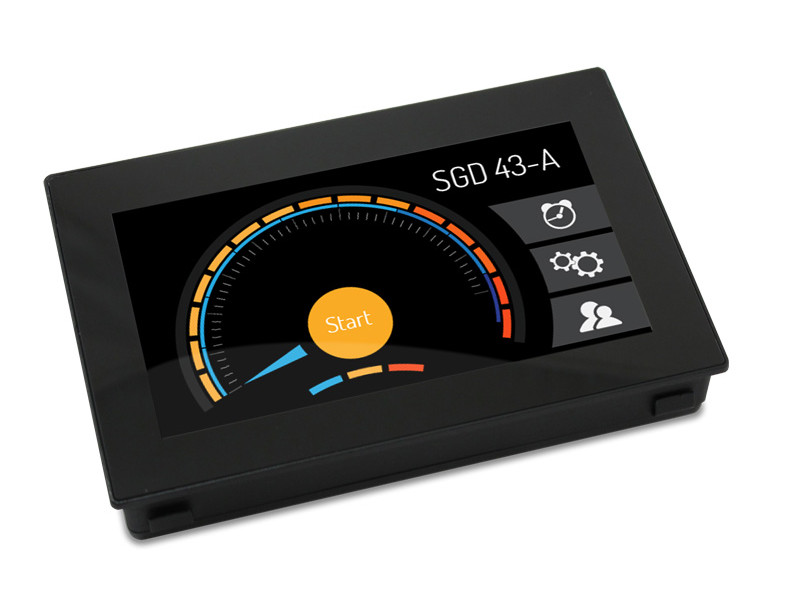

PanelPilotACE 4.3tum Display

PanelPilotACE 4.3tum Display * For measurement ranges up to ±10V. ** Hardware capability, but not available in software at launch Display 4.3” TFT with 262k colours Touchscreen Capacitive Resolution 480 x 272px Processor Freescale i.MX283 (454MHz, 32bit, ARM 9) An... läs mer
Artikelnummer: SGD43-A
Utgått ur sortimentet

PanelPilotACE 4.3tum Display

* For measurement ranges up to ±10V.
** Hardware capability, but not available in software at launch
Display 4.3” TFT with 262k colours
Touchscreen Capacitive
Resolution 480 x 272px
Processor Freescale i.MX283 (454MHz, 32bit, ARM 9)
Analogue Inputs 4 x ±40V or 4-20mA (16bit ADC with 0.05% ±1mV typical accuracy*)
Serial Buses RS232**, SPI**, I2C**, RS485**, Ethernet**
Memory 1Gbit DDR2 SDRAM and 2GB SD card
Operating Temperature 0 to 40°C (32 to 104°F)
Supply 5 to 30V d.c. (300mA typical at 5V d.c.)
Outside Dimensions 119.3 (4.7) x 79.8 (3.1) x 20.0 (0.8) mm (in)
