Stabilt mobilt bredband, 3G/4G och via befintligt WIFI för fordon, smidig antenn, RUTX11

Article no.: PAKET-RUTX11-3G-4G-WIFI-PUCK-5
Availability: In stock
Finished package for those who want a stable 3G/4G network with the option to connect to an existing WiFi network. This package is for those who are looking for a smooth installation and quality. Teltonika RUTX11 has many configuration possibilities such as OpenVPN and Site-To... read more
5 521 kr
Ord. price 5 936 kr

Finished package for those who want a stable 3G/4G network with the option to connect to an existing WiFi network.

This package is for those who are looking for a smooth installation and quality. Teltonika RUTX11 has many configuration possibilities such as OpenVPN and Site-To-Site VPN, Support for DDNS and Ping reboot. All the functions required for you to be able to take the system with you when you have to work out in the field or just want to enjoy some nice series on the plate.

In this package, the antenna already has 2 meters of antenna cable mounted directly on the element.

To install this package, you need to do the following:

  • Check the roof and see where the best mounting location for the antenna is, keep in mind that the antenna wants to be as free as possible.
  • Try to mount the router so that it is not in the way or will be damaged.
  • Configuration is handled via IP, the IP address is on the modem.
  • To connect to an existing network, browse to RUTX11 and scan for networks, click on the network you want to connect to and enter the password.

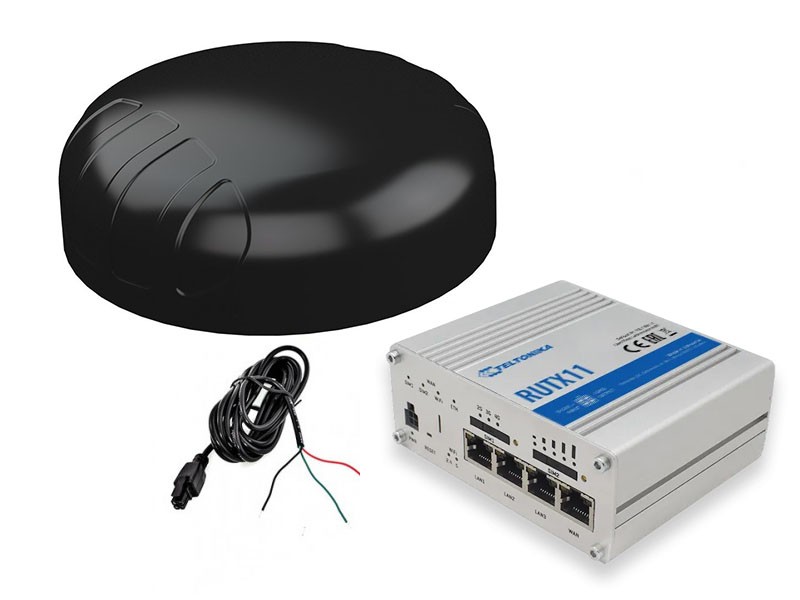

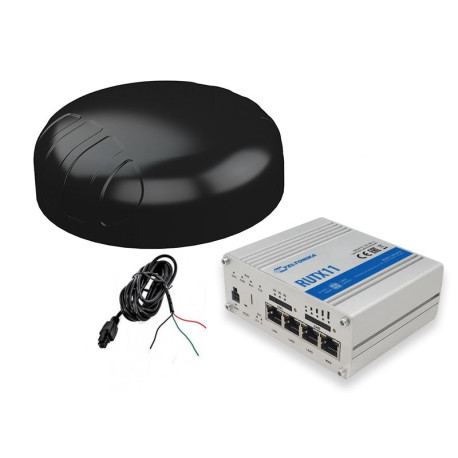

Bundle contains

1 st

Teltonika RUTX11 LTE Cat6 router with dual SIM cards and WiFi

RUTX11 RUTX11 from Teltonika, reliable LTE Cat6 3G/4G router with WiFi The router has 3 Gigabit LAN ports for connection to a computer/printer or other. 1
4083 kr/pcs 4390 kr Ord. price Incl Tax In Stock
1 st

Poynting PUCK-5 Omnidirectional 5G LTE MIMO WiFi GPS 6dBi

A-PUCK-0005-V1-01 Poynting PUCK is a new model that offers a small profile antenna for use in several different areas such as IoT/M2M, Smart Meter, Smart Utilities, Mar
1413 kr/pcs 1519 kr Ord. price Incl Tax In Stock
1 st

Teltonika 4-pin power cable with I/O

PR2FK20M Power cable with 4-pin connector to connect to Teltonika RUT2xx, RUT9xx, etc. Input connector, 4-way screw terminal Output connector,
166 kr/pcs 179 kr Ord. price Incl Tax In Stock

Write a review

Explanation of frequency bands

When choosing an antenna, pay attention to which frequency bands the antenna supports. Depending on which operator and where the antenna will be used, the frequency bands vary. Larger cities use 2600MHz while smaller towns use 800/900MHz with some support bands in between such as 1800/2100MHz.

A higher frequency band gives a higher speed but also has a shorter range. The same applies to the antenna, if you have a base station that transmits on 2600MHz, your antenna, antenna cable and the location of the antenna become more important than on a lower frequency band. Explanation of signal loss we will go through soon. Higher frequency bands also mean shorter range from the base station.

450MHz (coverage band) also known as the Net1 band is the frequency band that covers the most area in Sweden. Therefore, Net1 is known to be able to have reception where other operators don´t have a chance, but with low download and upload speeds. The reason why this band is called Net1 is because that the company Net1 has exclusive rights to this frequency band.

800MHz (coverage band) is used by all common operators, excluding Net1. The low frequency band means that 800MHz covers a lot of space. Therefore, the band is used outside big cities or smaller towns. 800MHz is the most used frequency band around Europe.

900MHz (coverage band) is the band that Tele2 and Telenor initially used as coverage band. 900MHz is a more unusual LTE band and in the beginning the band caused some problems when the clients (mobile phones etc.) could not connect to 900MHz. Today, the mobile phone manufacturers have adapted the mobile phones to be able to communicate on 900MHz.

1800MHz (capacity band) is the latest frequency band launched. All operators today use this band in metropolitan centers (apart from Net1).

2600MHz (capacity band) is a very well-used frequency band all over Europe. 2600MHz is the highest frequency band used for LTE, this means that the band also has the shortest range compared to 800/900MHz. Due to the high capacity, the band is used in metropolitan environments where many base stations are required to cover as much surface as possible and have as high a capacity as possible.

Frekvensplan 4G

Frequency band Net1 Tele2 Telia Telenor Tre
450MHz (Band 31)
800MHz (Band 20)
900MHz (Band 8)
1800MHz (Band 3)
2600MHz (Band 38)
