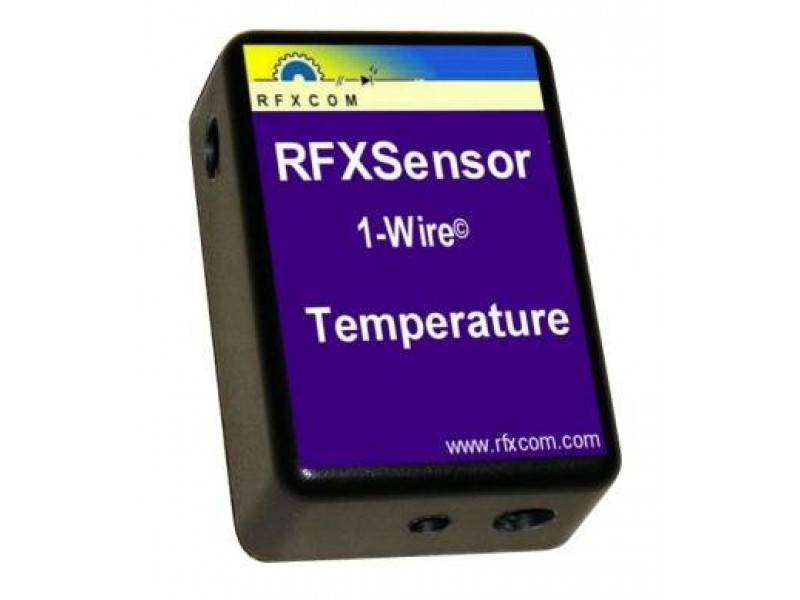

RFXcom External temperature sensor (DS2438)
RFXcom External temperature sensor (DS2438)
195 kr
RFXCOM

RFXcom External temperature sensor (DS2438)

Artikelnummer: 60011
Lagersaldo: 2st
Redo för omgående leverans.
Eftersom vår leverantör har 0st i sitt lager så kan vi skicka direkt från dem. Beställning skickas så snabbt som möjligt!

195 kr
External DS2438 temperature sensor for wired connection to an RFXSensor Build-in DS2438 temperature sensor Supply voltage sensor A/D sensor 0-10V DC Description of the External 1-Wire Sensors. The external 1-wire sensor can be connected to an RFXSensor using a 3 wire cab... läs mer

External DS2438 temperature sensor for wired connection to an RFXSensor

Build-in DS2438 temperature sensor
Supply voltage sensor
A/D sensor 0-10V DC

Description of the External 1-Wire Sensors.
The external 1-wire sensor can be connected to an RFXSensor using a 3 wire cable (supply voltage, data signal and ground) and the 3 pole jack connector. Best is to use a 2 wire screened cable where the screen is used as ground connection. The maximum cable length tested is 10 meters. A longer cable length is possible but depends highly on the quality of the cable. A daisy chain connected is preferred above the star topology.
For the connections see the RFXSensor documentation.
The A/D input of a DS2438 can be used for a HIH4000 humidity sensor, a MPXA4115A barometer pressure sensor. If no humidity or barometric sensor is connected the A/D input can be used to measure a DC voltage within the range 0 - 10Volts.
