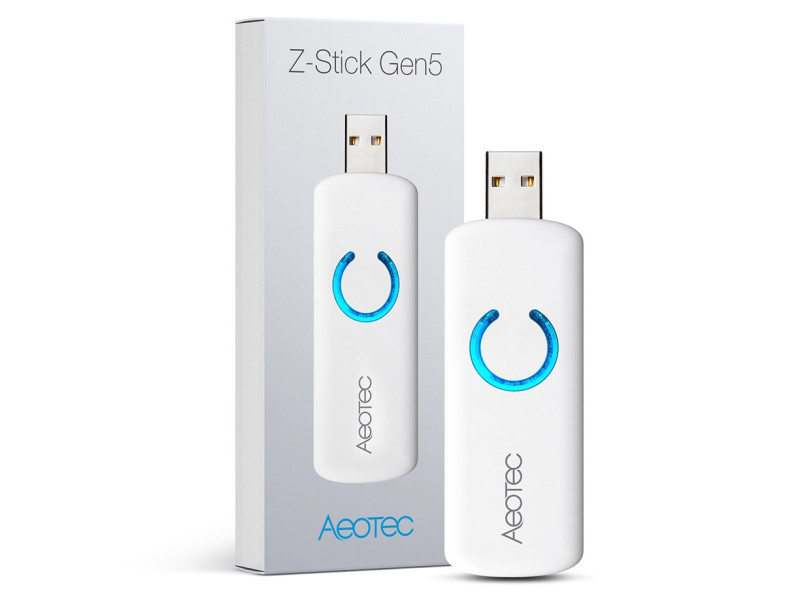

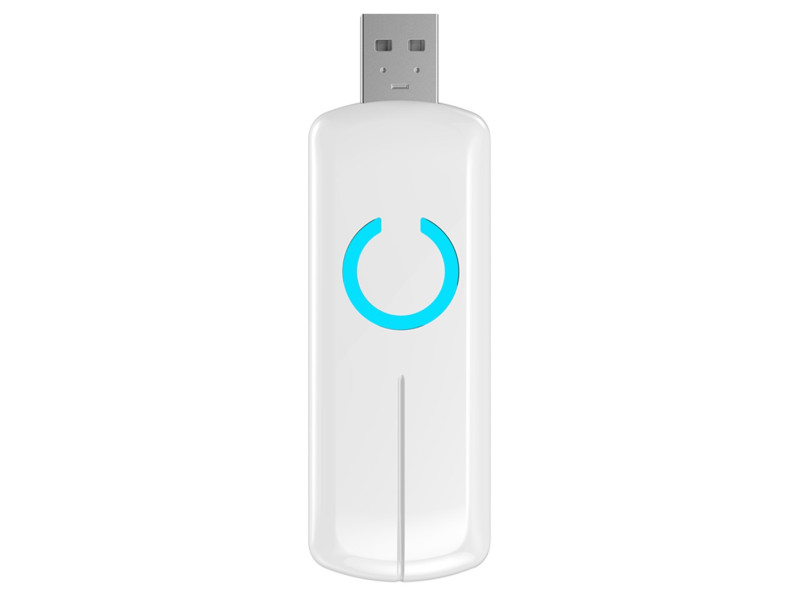

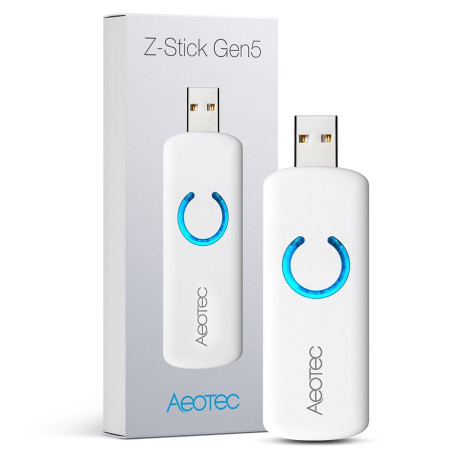

Aeotec Z-Stick USB Adapter with Battery - GEN5

Article no.: ZW090
Availability: 5st

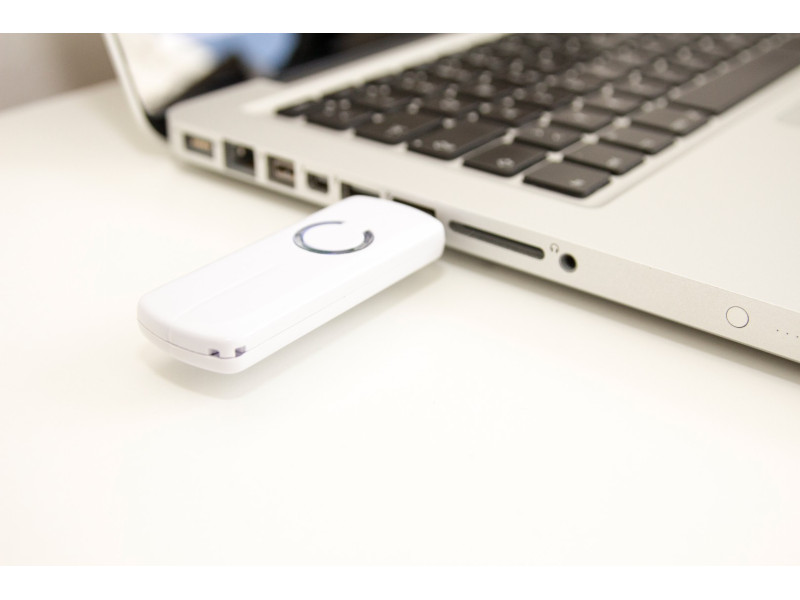

That’s your simple entry into the world of smart home: Plug the Z-Stick by Aeotec (Aeon Labs) into your PC, Notebook, Barebone, Raspberry Pi etc. and turn it into a Z-Wave smart home control center. The control of the Z-Wave network is realized via "Z-Wave Serial AP" (accor... read more

507 kr

Ord. price 609 kr
Promotional price expires in 23 days or while stocks last.

Add to Wish List

The control of the Z-Wave network is realized via "Z-Wave Serial AP" (according to "Z-Wave Application Programmers Guide, INS10247"). It’s also used by well-known Z-Wave control programs such as IP Symcon, Homeseer etc. This allows you to use the Aeotec Z-Stick universal with other Z-Wave software solutions.

Thanks to the integrated battery, you can also include or exclude any devices in your Z-Wave network by pushing on the local button, when PC or Notebook is turned off.

Features:

USB-Stick turns PC, Notebook etc. into a Z-Wave gateway
Manages up to 232 Z-Wave devices
Universal useable with different Z-Wave software solutions
Wireless Technology: Z-Wave

Teknisk Specifikation
Device Type	Z-Wave USB Controller
Z-Wave Plus Certified:	Yes
Power Supply	USB DC 4.75V to 5.25V Built-in rechargeable lithium battery 3.7V, 100mAh.
Max Standby Current	30uA
Max Operating Current	98mA in PA mode or 40mA in normal mode
Sensitivity of the RF receiver	9.6kbps @ -90 dBm 100kbps @ -90 dBm
Transmitting power	Disabled PA @ 2.91 dBm
Operating Temperature	0 C to 50 C
Storage Temperature	-20 C to 70 C
Operating Distance	Up to 500 feet/150 metres outdoors in normal mode 1310 feet/400 metres outdoors in PA mode.

Teknisk Specifikation
Device Type	Z-Wave USB Controller
Z-Wave Plus Certified:	Yes
Power Supply	USB DC 4.75V to 5.25V Built-in rechargeable lithium battery 3.7V, 100mAh.
Max Standby Current	30uA
Max Operating Current	98mA in PA mode or 40mA in normal mode
Sensitivity of the RF receiver	9.6kbps @ -90 dBm 100kbps @ -90 dBm
Transmitting power	Disabled PA @ 2.91 dBm
Operating Temperature	0 C to 50 C
Storage Temperature	-20 C to 70 C
Operating Distance	Up to 500 feet/150 metres outdoors in normal mode 1310 feet/400 metres outdoors in PA mode.

What is Z-Wave Plus?

Z-Wave Plus™ is a certification developed to help users identify products that use the "new generation" also known as the "500 series" of Z-Wave hardware. Z-Wave Plus™ offers a bunch of extra functions and possibilities that improve your use and make the installation of Z-Wave devices easier.

Z-Wave has been the market leader in interoperable smart home devices since 2004. With the introduction of Next-Gen (Z-Wave 500 series) hardware, Z-Wave saw new opportunities, including longer range, longer battery life, Over The Air upgrade (OTA), more RF channels and much more. All this and they are backwards compatible with existing Z-Wave devices.

For consumers, home owners, integrators and service providers, this upgrade turned out to be very beneficial in terms of much easier installation, richer device profiles, improved self-healing and longer battery life.
