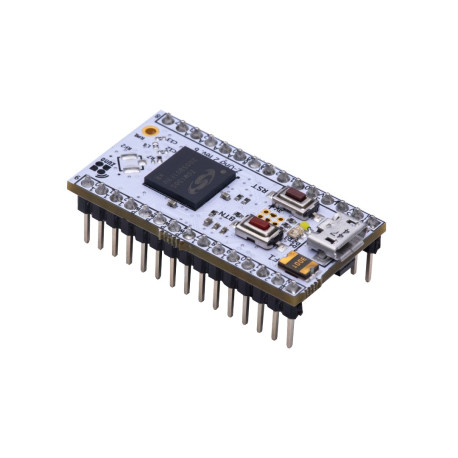

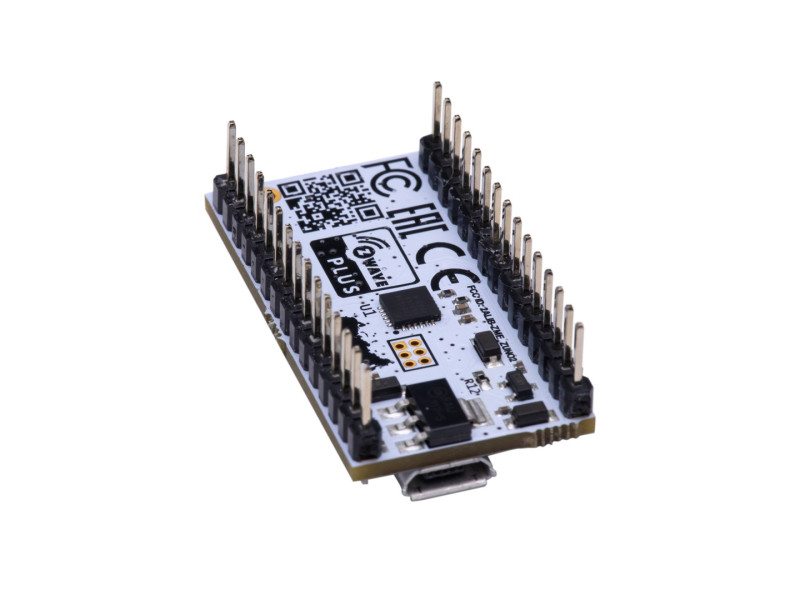

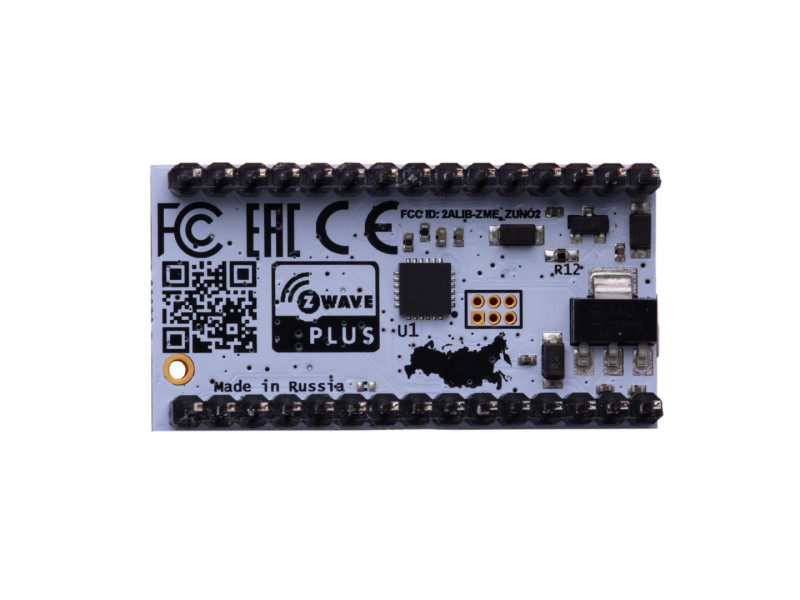

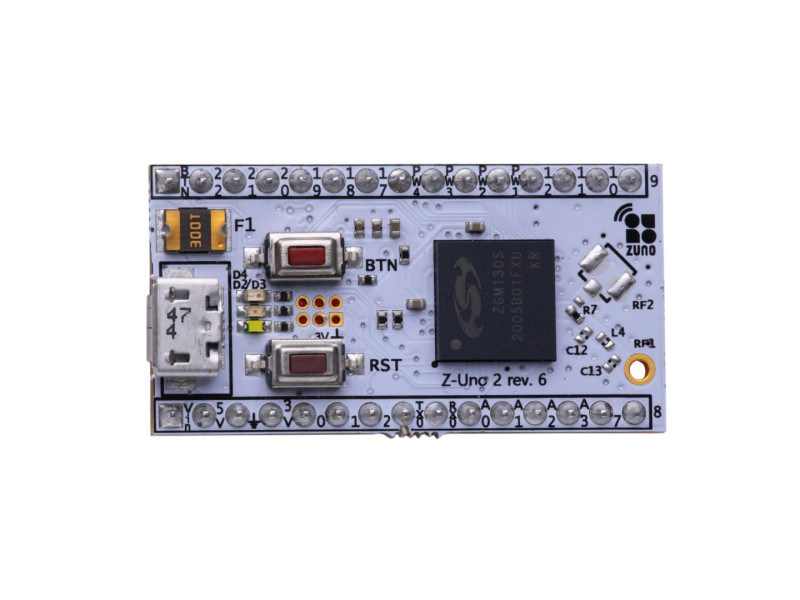

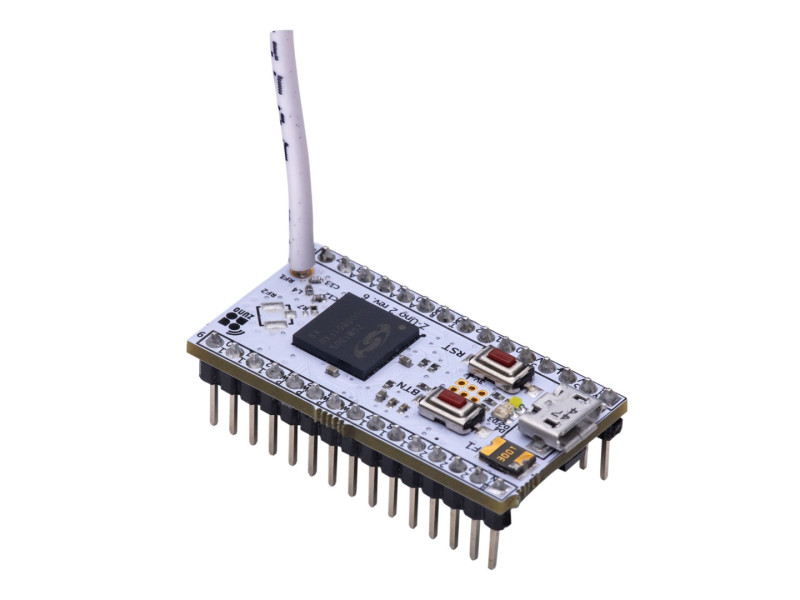

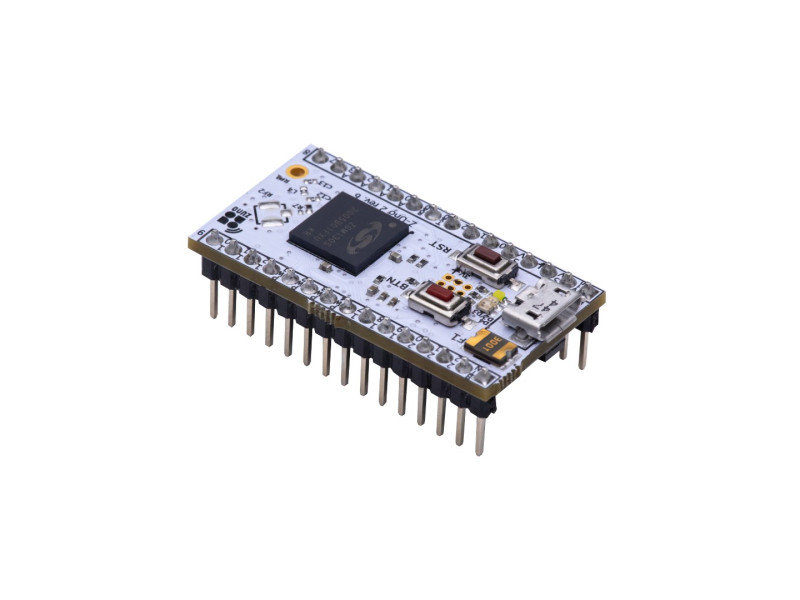

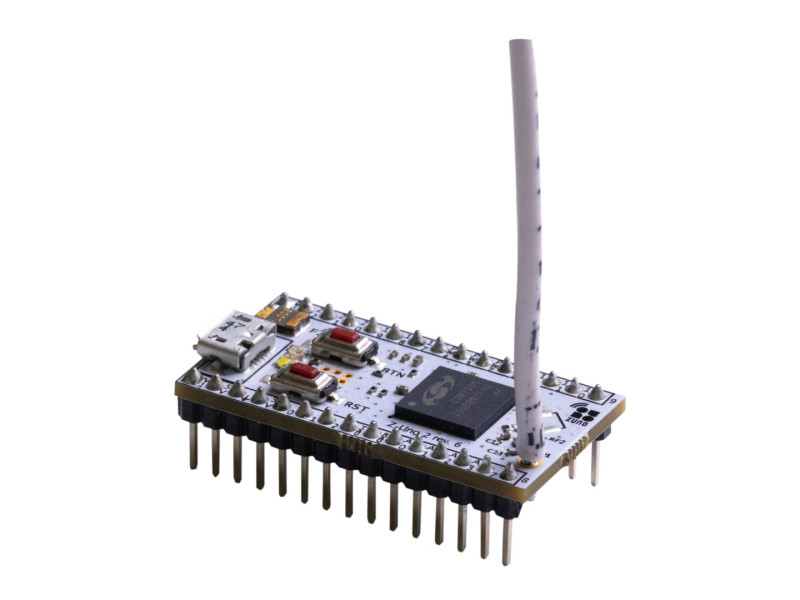

Z-Wave.Me Z-Uno 2 - Z-Wave Board for Arduino

The Z-Wave.Me Z-Uno 2 - Z-Wave Board for Arduino is the perfect solution for DIY-Scenarios! Connect LEDs, buttons, switches, motors or any low voltage sensor including most of Arduino compatible sensors. Create your personalized Z-Wave device by writing sketch in simplified ... läs mer
Artikelnummer: ZMEEZUNO2
Lagersaldo: 5st
525 kr

The Z-Wave.Me Z-Uno 2 - Z-Wave Board for Arduino is the perfect solution for DIY-Scenarios! Connect LEDs, buttons, switches, motors or any low voltage sensor including most of Arduino compatible sensors.

Create your personalized Z-Wave device by writing sketch in simplified C language. Z-Wave.Me Z-Uno 2 is the optimal companion for your RaZberry gateway. Get more informations on https://z-uno.z-wave.me

Features:

  • Control any Arduino compatible peripherals
  • Define your own logic by modifying your sketch
  • Use Arduino IDE and language to write and upload sketches
  • Easy-to-use
  • Requires no knowledge of Z-Wave protocol
  • Complete DIY solution
  • Z-Wave 700 series

Hardware Specification:

  • 40 kB Flash Flash memory for your sketches
  • 8 kB RAM
  • 2 kB EEPROM
  • Z-Wave RF transmitter at 9.6/40/100 kbps
  • 26 GPIO, 15 are 5V tollerant, 5 are able to wakeup device from deep sleep
  • 4 ADC
  • 4 PWM
  • 3 UART
  • 3 SPI
  • 16 interrupts
  • 1 I2C
  • 2x 16 Bit timers, 1x 32 Bit timer (GPT)
  • 1-Wire (software) (overlaps with special hardware controllers)
  • 2 service LEDs
  • 1 service button
  • 1 user test LED
  • CSEN interface for capacitive touch-buttons
  • LDMA controller for fast data transfers
  • 32Bit Cortex M4F @ 39Mhz CPU

Channel Types:

  • Binary Switch
  • Multilevel Switch
  • Color Switch
  • Binary Sensor
  • Multilevel Sensor
  • Meter

Z-Wave supported features:

  • Z-Wave Plus V2 compliant
  • Support of Z-Wave Smart Start technology
  • Z-Wave Long Range support
  • All Z-Wave frequencies
  • AES 128 bit Security S2 and S0 modes
  • OTA or USB Firmware updates
  • Multichannel (32 channels)
  • 32 Association groups
  • Controls switches, dimmers, door locks and scenes
  • Works with gateways and/or directly with other Z-Wave devices
