Aeotec Door/Window Sensor 6 - GEN5

Door / Window Sensor 6 Any door. Any window. Any home. Invisibly. Is a door opened or closed? Is a window? Have they been opened when they shouldn’t be? Simple questions. Powerful questions. Designed to blend into any home and any décor, Door / Window Sensor 6 ... läs mer
Artikelnummer: ZW112
Utgått ur sortimentet

ZNet Lite

Enheten fungerar helt och hållet
Se produkt


Se produkt


Enheten fungerar helt och hållet
Se produkt

Home Center

Enheten fungerar helt och hållet i HC2 och HCL
Se produkt


Enheten fungerar helt och hållet
Se produkt


Se produkt


Enheten fungerar helt och hållet
Se produkt

Door / Window Sensor 6

Any door. Any window. Any home. Invisibly.

Is a door opened or closed? Is a window? Have they been opened when they shouldn’t be?

Simple questions. Powerful questions.

Designed to blend into any home and any décor, Door / Window Sensor 6 has been engineered to make your home smarter. Intelligence is what makes the connected home a smart one. With Door / Window Sensor 6 your Z-Wave system will have intelligence about the key doors and windows in your home. It’ll know when they’re open. It’ll know when they’re shut. And it’ll know when they’ve been opened and they shouldn’t be.

Door / Window Sensor 6 will provide intelligence to 2 of the core tasks that any home intelligence system should be responsible for: its security and its control of your home.

With Z-Wave your home is smarter. With Door / Window Sensor 6 your Z-Wave security system is also smarter. Monitoring your entrances 24/7, this tiny sensor can detect when a door or window has been opened. If your connected-alarm is armed, Door / Window Sensor 6 can trip it, control lights and sirens, and send notifications about a potential emergency direct to your mobile phone.

Intelligence for more than just security, Door / Window Sensor 6 can be used to manage your home in real-time. Able to control any other Z-Wave device, when something in your home is opened or closed you’ll be able to control everything from welcome lights to thermostats, and to keep logs and send notifications.

Amazingly slim.

Traditional security sensors have always been bulky. They’ve been stuck onto doors and windows, and they’ve stuck out over 1 inch. There’s no nice way to say it: they’ve been ugly. Door / Window Sensor 6 changes all that.

More than 50% thinner than its competition, Door / Window Sensor 6 marries form with function. It offers the same, necessary functionality that you need from a security device but it packages it all within a beautifully designed device that is only 9mm deep and 72mm along the edge. It’s what we consider to be subtle security.

Any door.
Any window.
Any décor.

Designing a device that was small enough to not be noticed wasn’t enough for us. We wanted Door / Window Sensor 6 to be nearly invisible.

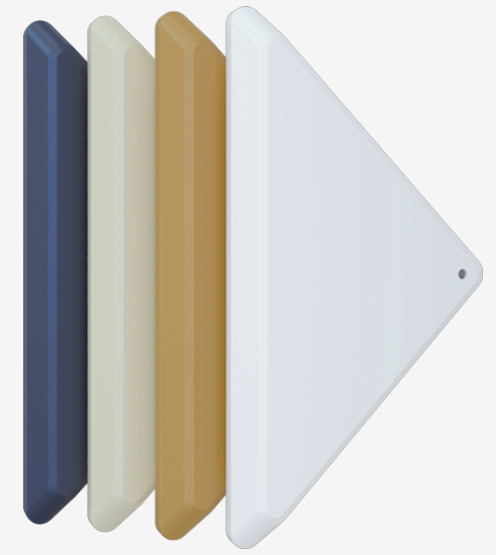

Crafted from ABS plastic, Door / Window Sensor 6 has been designed to be painted. So whether your door is white or wood, or whether your windows dark aluminum or something more traditional, Door / Window Sensor 6 can be painted to blend in. Finally, there’s a security sensor designed to complement your décor.

Utter accuracy.

Despite being so slim, Door / Window Sensor 6 doesn’t compromise on accuracy or quality.

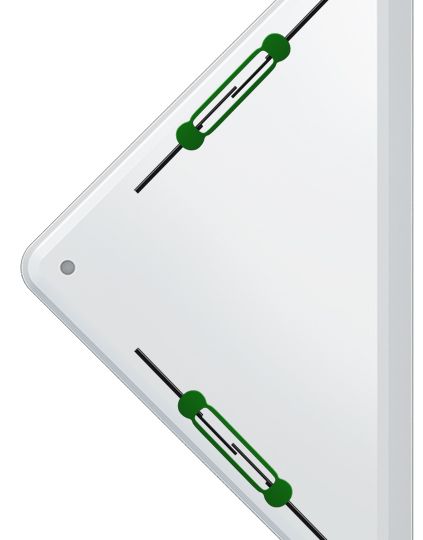

Whenever a door or window is opened, you want to know and this tiny sensor will detect it faultlessly. Door / Window Sensor 6 is built with 2 powerful magnetic reed switches placed along its edge. They’ll communicate with a provided slim-line magnet that measures is only 0.09” / 2mm wide and can be placed up to 2.2cm / 0.9” away.

Batteries that last.

You want intelligence from a sensor but not to have to change its batteries every few months. Built from technology originally designed for leading smart phones, Door / Window Sensor 6’s lasts over 1 year on windows and 10 months on frequently used doors. When it needs it, simply remove the sensor from its mounting plate and recharge it over a few hours via USB.

Door / Window Sensor 6’s perfect mix of slim design and strong battery performance is possible because it’s powered by 500mAH batteries and Aeon Labs’ Gen5 Z-Wave technology. That means a strong battery performance is coupled with wireless technology that uses 67% less power to communicate.

Simple to use.
Just as simple to install.

To use it, all you have to do is open the door or the window its attached to. Installing Door / Window Sensor 6 is just as easy.

Door / Window Sensor 6 has been engineered with 3 parts; a sensor, an invisible mounting bracket and a slim magnetic shard. Each part isn’t only responsible for making Door / Window Sensor 6 so powerful, but also for making it so easy to install.

Both the mounting bracket and the magnetic shard can be installed in moments with options including double sided tape, tiny screws and even a dab of glue. Once that’s done, the main sensor simply needs to be connected to a Z-Wave network and attached to its mounting plate. In minutes, you’re done.

Engineered to be smaller.
Engineered to be better.

Wireless range

The better the wireless range, the more reliable the product, and Door / Window Sensor 6 offers a class-leading antenna. Optimised for reliability, this tiny sensor can wireless communicate over 150 metres / 492 feet.


The best antenna. The best Z-Wave. Door / Window Sensor 6 is built upon Z-Wave Plus and Aeotec’s leading Gen5 technology to offer you the fastest response times and optimal battery life between recharges.

Secure security

If you’re using a sensor for security you want its communication to be secure. That’s why Door / Window Sensor 6 utilises AES-128 wireless data encryption to keep it secure from prying eyes and hackers.

Wireless updates.

Whether used for home intelligence or security, you want your sensor to always stay up to date. Whenever firmware udpdates are made for it, you’ll be able to upgrade Door / Window Sensor 6 via Microsoft Windows or select Z-Wave gateways.

Skriv en recension

Vad är Z-Wave Plus?

Z-Wave Plus™ är en certifiering som är utvecklad för att hjälpa användare att identifiera produkter som använder den "nya generationen" även känd som "500 serien" av Z-Wave hårdvara. Z-Wave Plus™ erbjuder en drös med olika extra funktioner och möjligheter som förbättrar ditt användande och gör att installationen av Z-Wave enheter blir enklare.

Z-Wave har varit ledande på marknaden inom driftskompatibla smarta enheter för hemmet sedan 2004. Med introduktionen av Next-Gen (Z-Wave 500 serien) hårdvaran så såg Z-Wave nya möjligheter, inkluderat med längre räckvidd, längre batteritid, Over The Air uppgradering (OTA), fler RF kanaler och mycket mer. Allt detta och dom är bakåtkompatibla med existerande Z-Wave enheter.

För konsumenter, husägare, integratörer och tjänsteleverantörer så blev denna uppgradering väldigt fördelsfull i termerna av mycket enklare installation, rikare enhetsprofiler, förbättrad självläkning och längre batteritid.


  • 50% Längre batteritid
  • 67% Längre räckvidd
  • 250% Mer bandbredd
  • 3 F kanaler för förbättrad störningsskydd och högre bandbredd
  • Ny Plug-n-Play nätverks-bred inkluderingsprocess
  • Förbättrad självläkning och feltolerans med Explorer Frame funktion
  • Standardiserad metod för Over the Air firmware uppdateringar (OTA)
  • Förbättrad information för produkt certifierings databasen

För att vara säker på vad som är Z-Wave Plus certifierat så notera denna bild över produktbilderna på vår hemsida (Z-Wave Plus)
