1 Channel Z-Wave 7 Day Time Control and RF Room Thermostat
1 Channel Z-Wave 7 Day Time Control and RF Room Thermostat
1 390 kr
Secure

1 Channel Z-Wave 7 Day Time Control and RF Room Thermostat

The SEC_SCP318-SET combines a 7-day single channel time switch with a wireless Z-Wave room thermostat and can be used for adding an extra zone into an existing installation. Because of its TPI energy saving software the user can start to save up to 10% energy consumption. The con... läs mer
Artikelnummer: SEC_SCP318-SET
Leveranstid: Levereras inom 48-72h
Leverantörs lager: 318st
1 390 kr
Lägg till i önskelista
Bevaka produkt


ZNet Lite

Obekräftat


RaZberry

Obekräftat


Vera

Obekräftat


Home Center

Obekräftat


Homey

Obekräftat


Nexa

Obekräftat


Zipabox

Enheten fungerar inte alls

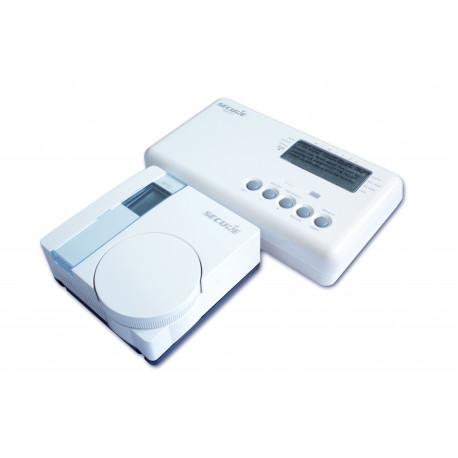

The SEC_SCP318-SET combines a 7-day single channel time switch with a wireless Z-Wave room thermostat and can be used for adding an extra zone into an existing installation. Because of its TPI energy saving software the user can start to save up to 10% energy consumption. The control unit and the room thermostat communicate with each other via Z-Wave commands.

Thermostat (Transmitter):
The battery-operated SRT321 wall thermostat has a big adjusting wheel which can be used to preset the desired target temperature in the room in a range of 5°C – 30°C. By verifying the target temperature with the measured real temperature closed to the device, the unit decides how to operate a wirelessly attached power switch that is attached to the heater. In parallel, a central gateway or Z-Wave control software can set the target temperature using Z-Wave. This enables to realize a time scheduled zone heating. The thermostat itself does not have any internal timers but executes the wireless settings and the local setup.

Controller Uni (Receiver):
The controller unit of SEC_SCP318 will allow up to 3 ON/OFF settings per 24 hours, 7 days a week. To temporarily override current settings, the device has an 1 hour manual Boost Function, which allows the user to boost the system to be currently OFF for 1 hour, and an Advance Function button, which allows the user to shift the system to ON when currently OFF or switch the system OFF when currently ON. Additionally, the device has a programming switch allowing permanent selection of: OFF/ON/AUTO/ALL DAY.

Features:

  • Set with Thermostat SRT321 and relay switch
  • Up to 3 ON/OFF settings daily programmable
  • 1hour Boost Function
  • Thermostat with display and adjusting wheel
  • Controller unit with local control buttons
  • Wireless Technology: Z-Wave
  • Dimensions Thermostat SCS317: 87x87x37 mm
  • Dimensions Controller Unit SSR303: 87x236x44 mm
