RTL-SDR

RTL-SDR V3 R820T2 RTL2832U 1PPM TCXO SMA Software Defined Radio with Dipole Antenna Kit

Artikelnummer: R820T2RTL2832U-KIT
Lagersaldo: 54st
Färdigt paket med en väldigt populär usb-sticka för att komma igång med Software Defined Radio, SDR. Denna mottagare kan ta frekvenser från 24Mhz till 1,5Ghz. Includes 1x RTL-SDR Blog brand R820T2 RTL2832U 1PPM TCXO SMA V3 Dongle, 1x Dipole Antenna Base with 60cm RG1... läs mer
599 kr

Färdigt paket med en väldigt populär usb-sticka för att komma igång med Software Defined Radio, SDR.

Denna mottagare kan ta frekvenser från 24Mhz till 1,5Ghz.

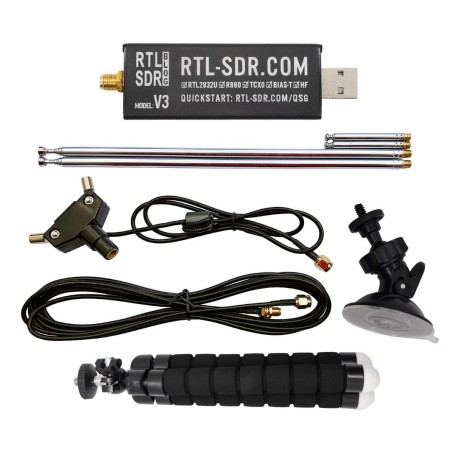

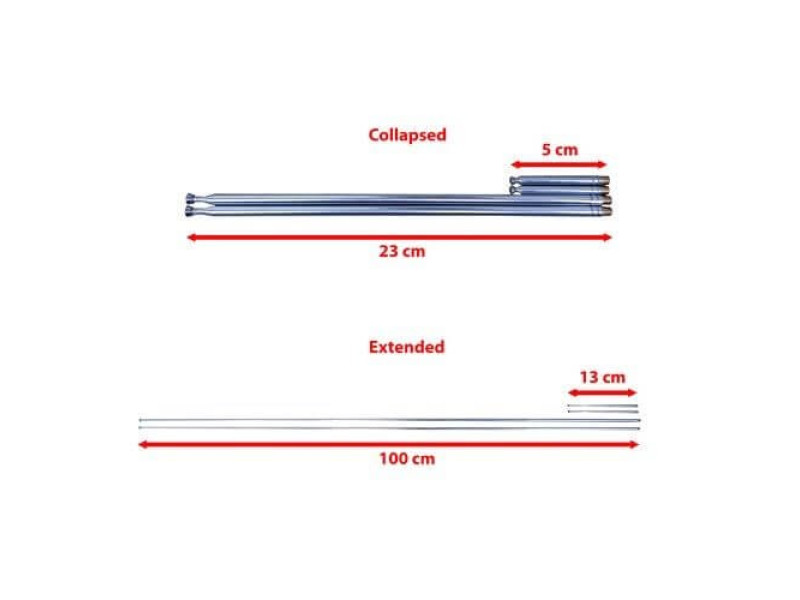

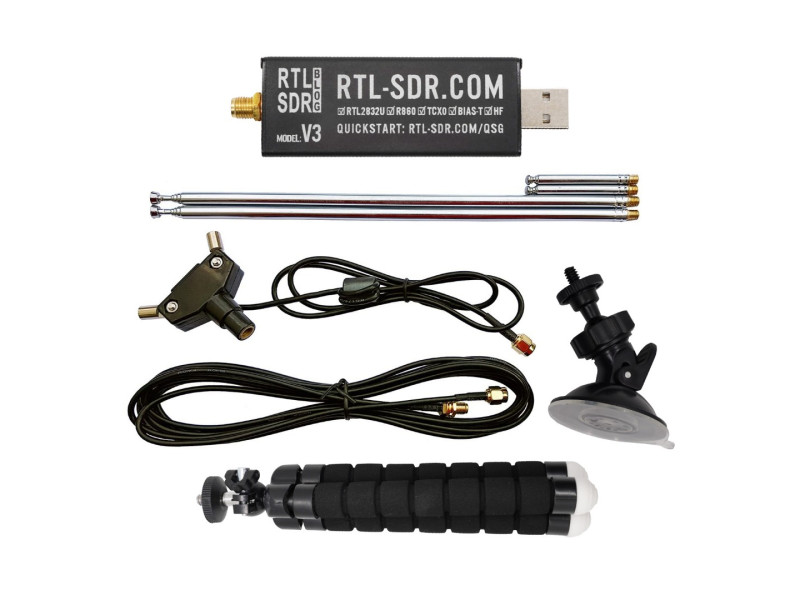

Includes 1x RTL-SDR Blog brand R820T2 RTL2832U 1PPM TCXO SMA V3 Dongle, 1x Dipole Antenna Base with 60cm RG174, 2x 23cm to 1m telescopic antenna, 2x 5cm to 13cm telescopic antenna, 1x 3 meter RG174 extension cable, 1x Flexible Tripod Mount, 1x Suction Cup Mount.

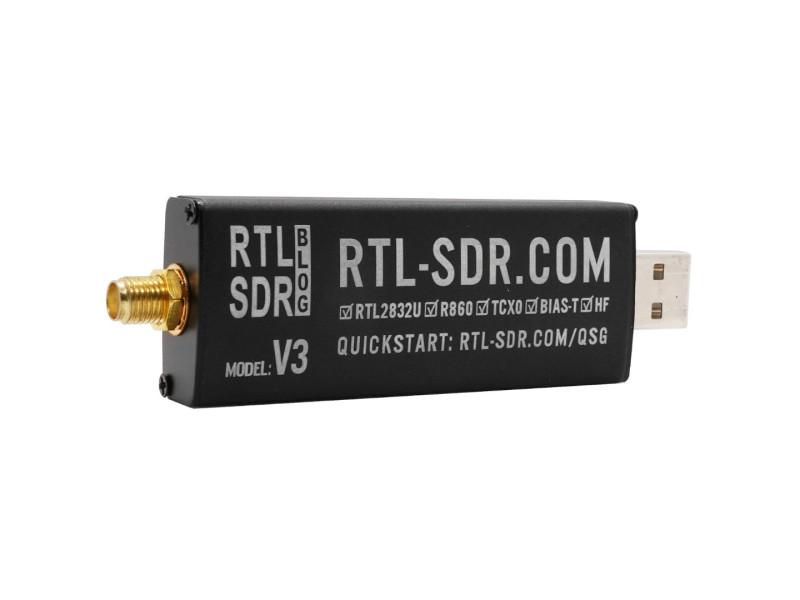

The best value RTL-SDR on the market! Several improvements over generic TV tuner brands including use of the R820T2 tuner, a 1 PPM temperature compensated oscillator (TCXO), SMA F connector, aluminum case with passive cooling, software switchable bias tee circuit, additional ESD protection, lower overall noise and built in direct sampling for basic HF reception.

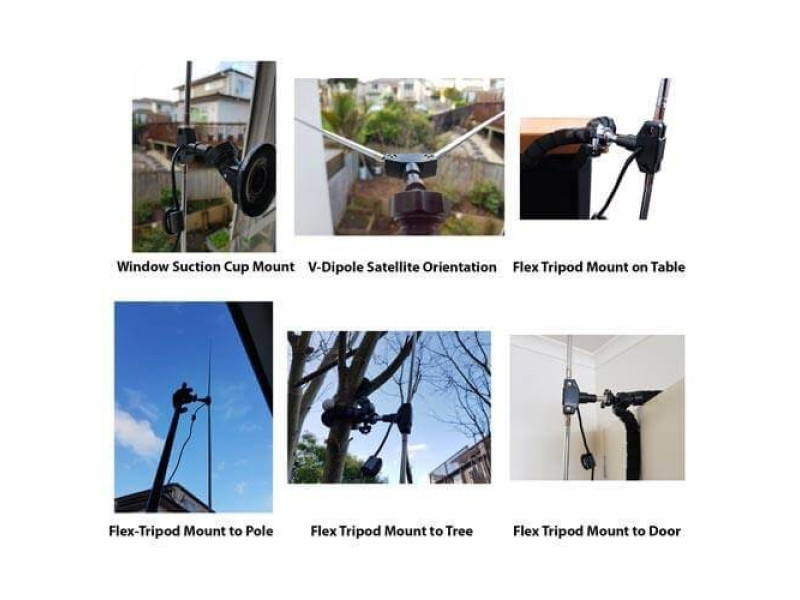

Comes with our portable dipole antenna kit. Great for beginners as it allows for terrestrial and satellite reception. Easy to mount outdoors and designed for portable and temporary outside usage. Please do not use outside during poor weather conditions.

  • 1 PPM temperature compensated oscillator (TCXO) – Accurate tuning and almost zero temperature drift (2 PPM initial offset, 1 PPM temperature drift)
  • SMA female antenna port – Most dongles use the less common MCX or PAL antenna ports. Ours use SMA which is much more common so more adapters and antennas are available for it. It is also more durable and has lower insertion losses.

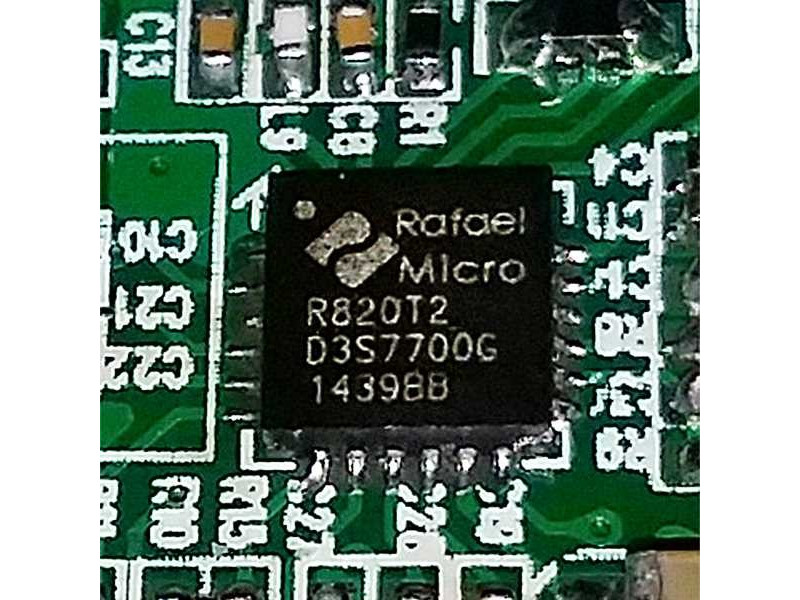

  • R820T2 tuner – More sensitive/lower noise floor than the older R820T tuner. 100% compatible with software for the older R820T.
  • Improved component tolerances – Allows the RTL-SDR to work more optimally over all frequencies.

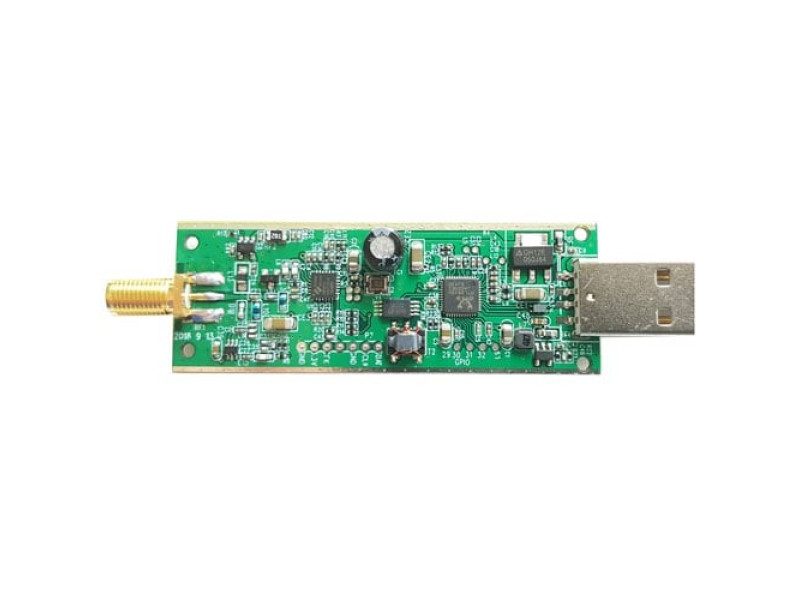

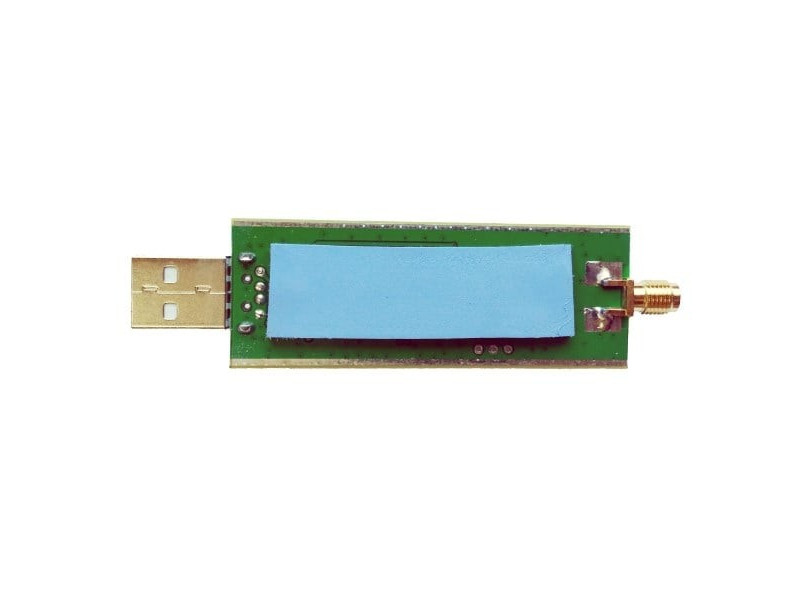

  • Experimental: 4.5V USB powered bias tee - Can be enabled by soldering two pads on the PCB together. This allows the RTL-SDR to power LNA’s (like the LNA4ALL and HABAMP) and active antennas through the coax cable.
  • Experimental: Break out pads for direct sampling - Allows easier soldering to pins 4 & 5 on the RTL2832U for enabling the direct sampling mod.

Mer information om denna SDR-sticka, och även fri mjukvara.

Några av de mjukvaror som kan användas:

SDR#  ("SDR sharp")
HDSDR
SDR-RADIO.COM V2
Linrad (linux)
GQRX(linux)
