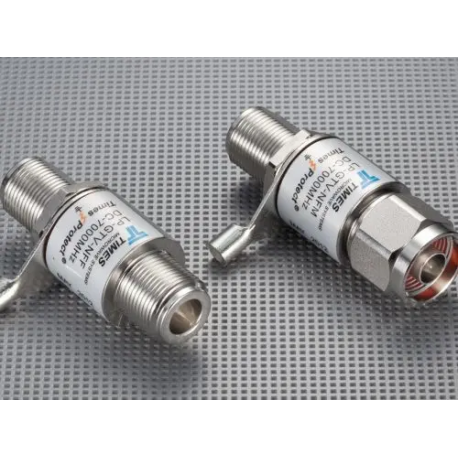

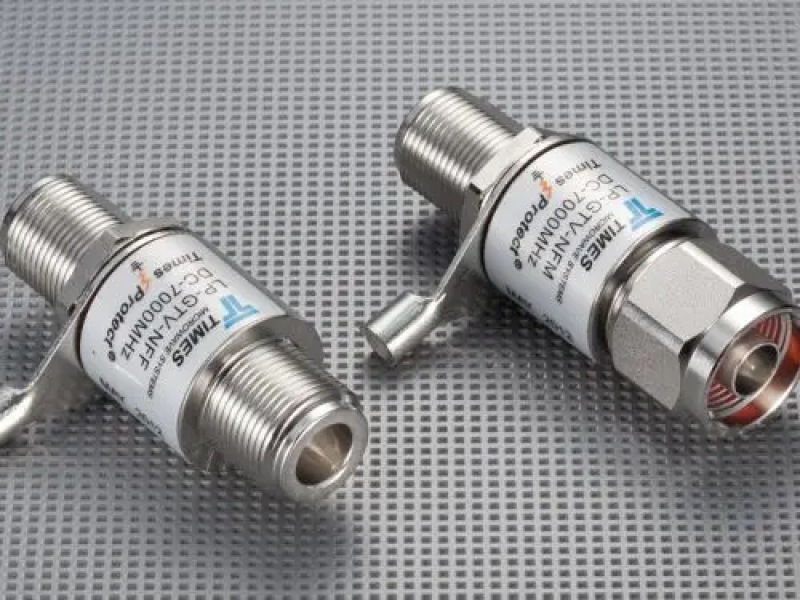

Times Protect LP-GTV-NFF åskskydd N-hona till N-hona
Times Protect LP-GTV-NFF åskskydd N-hona till N-hona
Artikelnummer: LP-GTV-NFF
Leveranstid: Obekräftat Datablad
Leveranstid: Obekräftat Datablad
The Times-Protect® LP-GTV-N series is an exceptional broadband DC pass design for lightning protection applications requiring DC power to be supplied to the electronics.
These devices exhibit outstanding RF performance with high surge current handling characteristics and cove... läs mer
549 kr
The Times-Protect® LP-GTV-N series is an exceptional broadband DC pass design for lightning protection applications requiring DC power to be supplied to the electronics.
These devices exhibit outstanding RF performance with high surge current handling characteristics and cover a broad range of applications requiring up to 150W of RF power handling.
Its fully weatherized housing meeting IP67 standard allows for outdoor as well as indoor installation.
The N connector designs cover the entire frequency spectrum from DC through 7000MHz.
Advantages Include:
- DC Pass Multi-Strike Design
- Broadband Bidirectional Design
- Excellent IL/RL Performance Over the Entire Operating Frequency Band
- Fully Weatherized Housing
- White Bronze Plated for Durability and Long Life
The LP-GTV-NFF is a direct, drop-in replacement for
- Polyphaser GT-NFF-AL (Spike Guard)
- Polyphaser GT-NFSF-AL
LP-GTV-N Series:
- LP-GTV-NFF (150W) N Female connectors on both sides – bidirectional
- LP-GTV-NFM (150W) N Male connector on one side & N Female connector on the other side – bidirectional
Impedance | 50 Ω |
Frequency Range | DC-7000 MHz |
VSWR/Return Loss | < 1.2:1 / <-20dB (DC-6700MHz)
< 1.3:1 / <-17dB (6700-7000MHz) |
Insertion Loss | < 0.2dB (DC-6700MHz)
< 0.3dB (6700-7000Mhz) |
Maximum Surge Current | 10kA multiple (8×20µs wave-form) |
Impulse Sparkover | 700V (1kV/µs) |
Turn On | 180Vdc |
Average Power | 150 Watts |
Protection Circuit | DC Pass |
