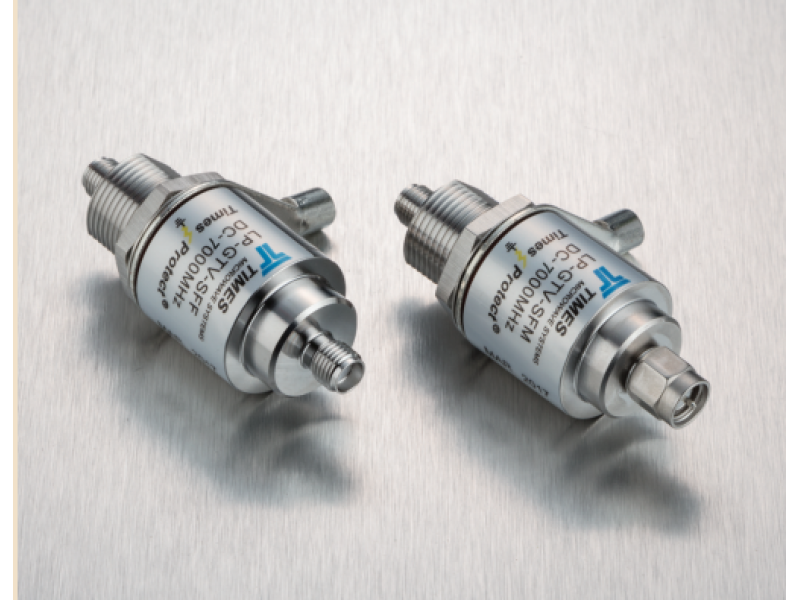

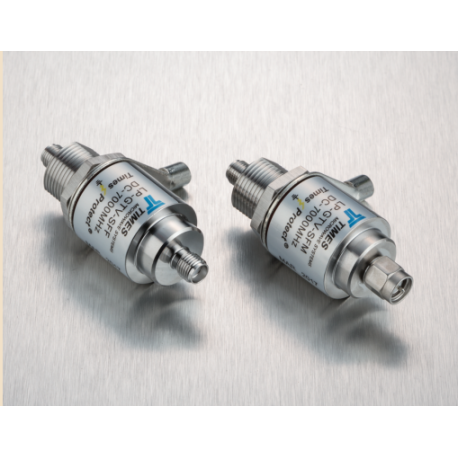

Times Protect LP-GTV-SFM åskskydd SMA-hona till SMA-hane

Artikelnummer: LP-GTV-SFM
Lagersaldo: 1st - Passa på
Datablad
The Times-Protect® LP-GTV-SFM series is an exceptional broadband DC pass design for lightning protection applications requiring DC power to be supplied to the electronics. These devices exhibit outstanding RF performance with high surge current handling characteristics and co... läs mer
467 kr
Ord. pris 549 kr
Kampanjpriset utgår om 7 dagar eller så långt lagret räcker.

The Times-Protect® LP-GTV-SFM series is an exceptional broadband DC pass design for lightning protection applications requiring DC power to be supplied to the electronics.

These devices exhibit outstanding RF performance with high surge current handling characteristics and cover a broad range of applications requiring up to 150W of RF power handling.

Its fully weatherized housing meeting IP67 standard allows for outdoor as well as indoor installation.

The SMA connector designs cover the entire frequency spectrum from DC through 7000MHz.

Advantages Include:

  • DC Pass Multi-Strike Design
  • Broadband Bidirectional Design
  • Excellent IL/RL Performance Over the Entire Operating Frequency Band
  • Fully Weatherized Housing
  • White Bronze Plated for Durability and Long Life
Impedance 50 Ω
Frequency Range DC-7000 MHz
VSWR/Return Loss < 1.2:1 / <-20dB (DC-6700MHz)



< 1.3:1 / <-17dB (6700-7000MHz)

Insertion Loss < 0.2dB (DC-6700MHz)



< 0.3dB (6700-7000Mhz)

Maximum Surge Current 10kA multiple (8×20µs wave-form)
Impulse Sparkover 700V (1kV/µs)
Turn On 180Vdc
Average Power 150 Watts
Protection Circuit DC Pass
