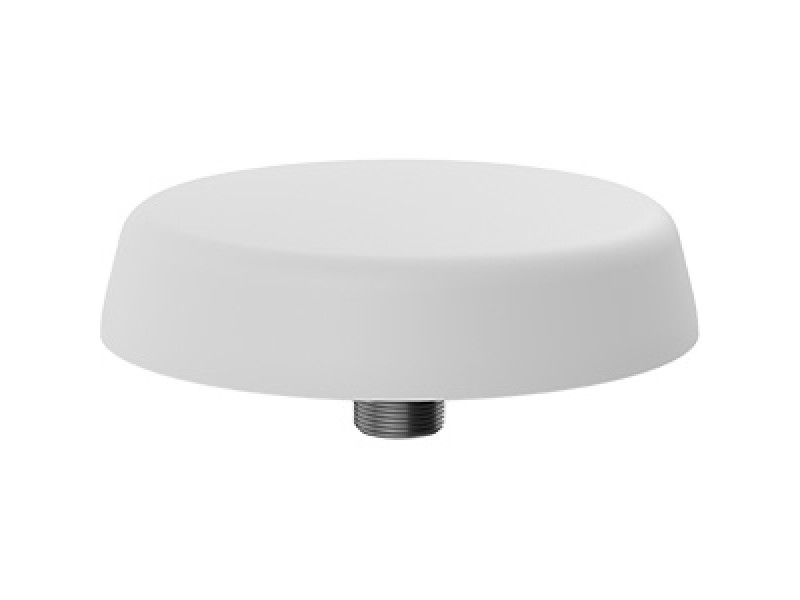

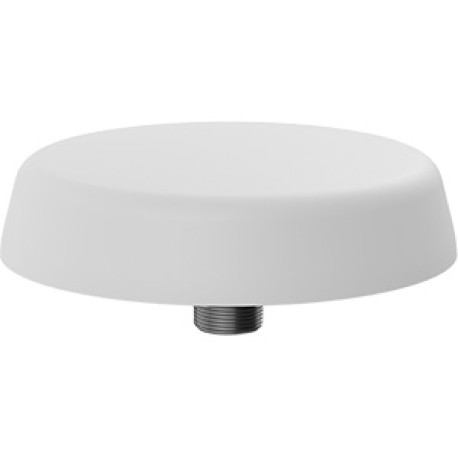

Panorama Fordonsantenn 4x4 MIMO WiFi Fakra White

Article no.: LPM4W-24-58-4FIJ
Discontinued

The Panorama CM[X]-24-58 series has been designed to provide MiMo dual band WiFi coverage in an ultra-low profile design. The compact, robust shell contains up to four antenna elements with effective isolation and low correlation covering 2.4-2.5/4.9-6GHz. The antenna is designed for ceiling mounting and can be mounted on a conductive or non-conductive panel.

Supplied with integrated flame retardant CS32 cables (Compatible with UNECE 118.01 and EN45545-2) and a halogen-free flame retardant which makes the antenna suitable for many environments.

An EN45545-2 and EN50155 approval means that the antenna is suitable for mounting on and inside rolling stock and the low height makes the product suitable for mounting with low clearance.

Ultra Low Profile
Certified EN45545-2 and EN50155
Certified IP69K and IK10
Available as models up to 4 x 4 MiMo Dual Band WiFi< /li>

Teknisk specifikation
Frekvensband	2400-2500 MHz 4900-6000 MHz
Förstärkning	6 dBi, 2400-2500 MHz 9 dBi, 4900-6000 MHz
Impedans	50 Ohm
Fäste	Genomföring, diameter 18 mm
Placering	Utom-/Inomhus
Max uteffekt	10W
Antennsladd	4x 4 meter, CS32 halogenfri, flamskyddsbehandlad
Kabelanslutning	4st FAKRA I Beige
Jordplan	Inbyggt
Storlek	115 x 30 mm
Vikt	0,85 kg
Temperatur	-30°C till +70°C
IP-klassning	IP69, IK10

Teknisk specifikation
Frekvensband	2400-2500 MHz 4900-6000 MHz
Förstärkning	6 dBi, 2400-2500 MHz 9 dBi, 4900-6000 MHz
Impedans	50 Ohm
Fäste	Genomföring, diameter 18 mm
Placering	Utom-/Inomhus
Max uteffekt	10W
Antennsladd	4x 4 meter, CS32 halogenfri, flamskyddsbehandlad
Kabelanslutning	4st FAKRA I Beige
Jordplan	Inbyggt
Storlek	115 x 30 mm
Vikt	0,85 kg
Temperatur	-30°C till +70°C
IP-klassning	IP69, IK10

Explanation of frequency bands

When choosing an antenna, pay attention to which frequency bands the antenna supports. Depending on which operator and where the antenna will be used, the frequency bands vary. Larger cities use 2600MHz while smaller towns use 800/900MHz with some support bands in between such as 1800/2100MHz.

A higher frequency band gives a higher speed but also has a shorter range. The same applies to the antenna, if you have a base station that transmits on 2600MHz, your antenna, antenna cable and the location of the antenna become more important than on a lower frequency band. Explanation of signal loss we will go through soon. Higher frequency bands also mean shorter range from the base station.

450MHz (coverage band) also known as the Net1 band is the frequency band that covers the most area in Sweden. Therefore, Net1 is known to be able to have reception where other operators don´t have a chance, but with low download and upload speeds. The reason why this band is called Net1 is because that the company Net1 has exclusive rights to this frequency band.

800MHz (coverage band) is used by all common operators, excluding Net1. The low frequency band means that 800MHz covers a lot of space. Therefore, the band is used outside big cities or smaller towns. 800MHz is the most used frequency band around Europe.

900MHz (coverage band) is the band that Tele2 and Telenor initially used as coverage band. 900MHz is a more unusual LTE band and in the beginning the band caused some problems when the clients (mobile phones etc.) could not connect to 900MHz. Today, the mobile phone manufacturers have adapted the mobile phones to be able to communicate on 900MHz.

1800MHz (capacity band) is the latest frequency band launched. All operators today use this band in metropolitan centers (apart from Net1).

2600MHz (capacity band) is a very well-used frequency band all over Europe. 2600MHz is the highest frequency band used for LTE, this means that the band also has the shortest range compared to 800/900MHz. Due to the high capacity, the band is used in metropolitan environments where many base stations are required to cover as much surface as possible and have as high a capacity as possible.
