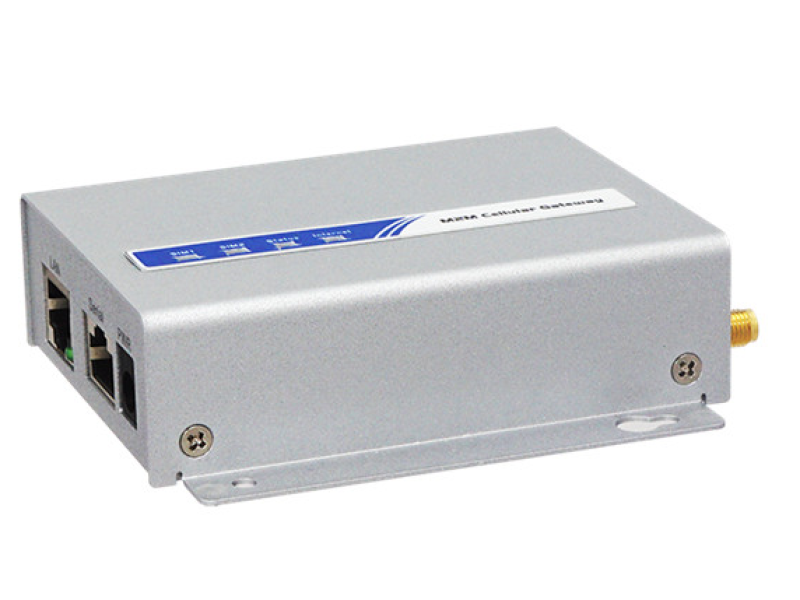

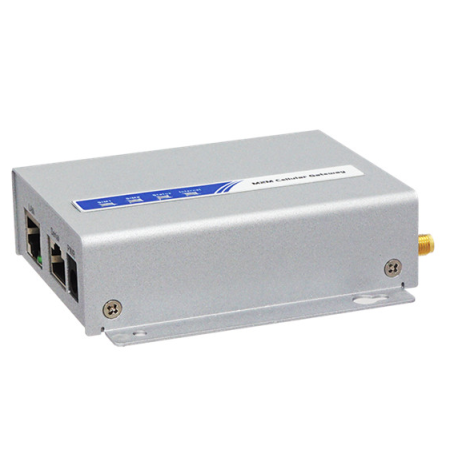

Amit IDG500AM 3G router med dubbla SIM-kort
Amit IDG500AM 3G router med dubbla SIM-kort
Artikelnummer: IDG500-0P001
Utgått ur sortimentet
Utgått ur sortimentet
Detta paket saknar PSU, därav kampanjpris!
Detta är en proffsig och driftsäker 3G router från Amit. Observera att denna router använder micro-sim storlek i bägge sim-platserna. Strömmatas +5vdc. Kan väggmonteras.
- M2M Cellular Gateway for Retail POS, and Self-Service Stations, like ATM, vending machine, and digital signage applications.
- Equip with a dual-SIM HSPA+, provide WAN failover function for highly reliable requirement, without geographic limit.
- 1*RJ45 fast Etherent port for network device connection.
- 1*RS232 serial port for remote console and out of band management.
- Fully protocol with NAT/Routing/IPv6 compatible with most IP network.
- IPSec, OpenVPN, PPTP, and L2TP VPN support up to 3 concurrent tunnels with max 20Mbps throughput (IPSec).
- Firewall with SPI and IPS prevent hacker attacking and enhance network efficiency.
- SNMP, Telnet CLI, and TR-069 for administrator to manage system.
|
Device Interface1 |
|
| Uplink | 1*HSPA+ module (dual SIM) |
| LAN | 1*RJ45 FE |
| Communication Bus | 1*RJ45 RS232 |
| 3G/4G Band2 |
UMTS: 850(or 900)/1900/2100 MHz,
GPRS/EDGE: 850/900/1800/1900 MHz
|
| Antenna | 2*3dBi detachable ant. (3G/4G) |
| Power Source | DC 5V / 2A |
|
WAN Functions |
|
| WAN | Cellular WAN, Dual SIM Failover |
| Cellular | 2G/3G/HSPA+, IP Pass-through |
|
Basic Functions |
|
| Ethernet | LAN IP, Subnet Mask |
| Port Fordwarding |
Virtual Server/Computer, DMZ Host,
PPTP/L2TP/IPSec Pass-Through
|
| Routing | Static, Dynamic: RIP1/RIP2, OSPF, BGP |
|
Object Definition |
|
| Scheduling | Time Schedule List |
| Grouping | Host Grouping List |
| External Server | Email, Syslog, RADIUS, SCEP, FTP |
| Certificate | My Certificate, Trusted Certificate, Issue Certificate |
|
Field Communication |
|
| Virtual COM | RFC 2217, TCP Client, TCP Server, UDP |
|
Security |
|
| VPN Tunneling |
IPSec, OpenVPN, PPTP, L2TP, GRE;
Tunneling with Full Tunnel, Tunnel Failover
|
| VPN Scenario | Site to Site, Site to Host, Host to Site, Host to Host, Hub and Spoke, Dynamic VPN |
| VPN Capability | IPSec: up to 3 tunnels |
| Firewall | SPI Firewall with Stealth Mode, IPS |
| Access Control | Packet Filter, URL Blocking, MAC Filter |
|
Service |
|
| Cellular Toolkit | SMS, Data Usage, SIM PIN, USSD, Network Scan |
| Event Handling |
Managing / Notifying Events;
SMS, Syslog, SNMP Trap, Email Alert, Reboot
|
|
Administration |
|
|
Configure & Management |
Web, Telnet CLI, Command Script, TR-069, SNMPv3 standard & AMIT MIB |
| System Operation |
MMI, System Information, System Time, System Log, Backup & Restore,
Reboot & Reset
|
| Diagnostic | Diagnostic Tools |
|
Dimension |
|
|
Device (LxWxH) |
93x90x27mm |
|
Environment |
|
| Operation Temp. | -20? ~ 60 ? |
| Storage Temp. | -40? ~ 85 ? |
| Humidity | 10% ~ 95% (non-condensing) |
|
