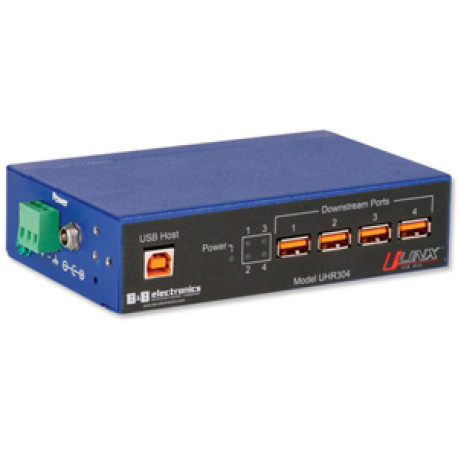

B+B U-Linx USB Hub 4 port Industriell Isolerad 4KV
B&B Electronics

B+B U-Linx USB Hub 4 port Industriell Isolerad 4KV

Artikelnummer: UHR304
Utgått ur sortimentet
Features and Benefits:
High ESD protection ensures product will keep running with no system downtime
High retention USB connectors provide strong, reliable connections - even in high vibration environments
Wide temperature (-40 to 80°C) operation to withstand extreme temperature conditions
Rugged design in metal case suitable for harsh industrial environments
Panel or DIN Mount to fit into your application with flexible mounting configurations
4000 V isolation meets EN60601-1-2 for medical applications (Model UHR304)
Shock and vibration tested for 50G shock and 4g vibration
Applications
- Industrial - Instrumentation - OEMs - Vehicle - Medical - Security
Specifications:
USB Standards: USB 1.1 and 2.0 compatible
Upstream port:1 USB Type B Female – High retention (withdrawal >15 N)
Downstream ports: 4 USB Type A Female – High retention (withdrawal > 15 N)
Speed: 12Mbps, 1.5Mbps
Isolation: 4 kV, Upstream port isolated from downstream ports
ESD: 8 kV contact, 15 kV air
Input Power Voltage: 10-30 VDC, external power via terminal block or locking barrel plug input
Downstream Power: Bus Power = up to 100mA (per port), External Power = up to 500mA (per port)
Dimensions: 5.5 x 3.5 x 1.4 in (139 x 87 x 35 mm) without panel brackets
Operating Temperature: -40 to 80°C (-40 to 176°F)
One DIN and two panel brackets included
