Times Microwave Systems

N-hane till LMR-600 för crimp

Artikelnummer: EZ-600-NMH-X
Lagersaldo: 20st
EZ-600-NMH-X Denna crimpkontakt med N-hane passar LMR-600 kabel. Kontakten består av flera delar, om någon av delarna går sönder måste den ersättas med en helt ny kontakt, reservdelar finns ej för kontakter. The EZ-600-NMH-X LMR connectors set a new gold standard a... läs mer
152 kr
Ord. pris 199 kr
Kampanjpriset utgår om
0 dagar, 6 timmar och 10 minuter dagar eller så långt lagret räcker.

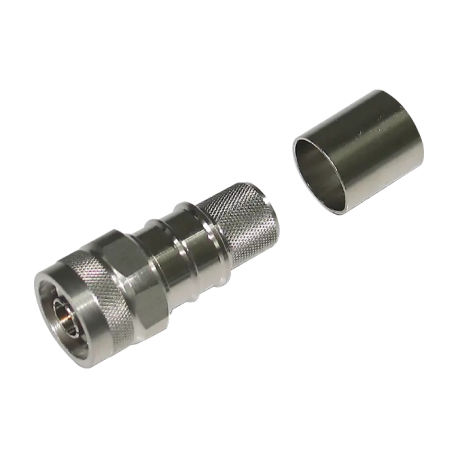

EZ-600-NMH-X

Denna crimpkontakt med N-hane passar LMR-600 kabel. Kontakten består av flera delar, om någon av delarna går sönder måste den ersättas med en helt ny kontakt, reservdelar finns ej för kontakter.


The EZ-600-NMH-X LMR connectors set a new gold standard as the easiest connectors to terminate to flexible coaxial cables in the industry – most terminations can be completed in under 30 seconds – with consistent resulting superior broadband VSWR performance.

Consisting of only 2 parts -the crimp tube and the complete connector body- the EZ-600-NMH-X connectors feature a solderless, push fit /snap on spring finger centre pin design and crimp outer – making them ideal for field installations where no power or soldering is required or permitted in many cases – such as in tunnel installations.

The connector body comes with the centre pin already pre-installed, fully captivated and compliant with the interface specifications of MIL-C-39012 /MIL-STD-348 – thereby eliminating the need to set or check pin/dielectric heights to ensure that no damage occurs during mating due to proud centre pins or dielectrics.

EZ-600-NMH-X Key Advantages

The X Series connectors have been engineered to offer the additional key advantages and features over our competitors’ products; –

  • Albaloy/Tri-Plate plating – resulting in superior Corrosion/Salt Fog resistance performance.
  • No braid trim feature – saves time during termination
  • Excellent broadband VSWR performance
  • Centre pins plated with substantial 50 micro inches of gold- enhanced mate/de-mate life.
  • IP 67 Waterproof rated when used with the Times WSB strain relief Weather Sealing Boots.
  • Rugged Design with hex Coupling nut feature on Male connectors -enabling the use of torque tools to ensure proper mating force
  • Compatible with Times assembly aid tooling such as CST and CT strip/crimp tools
  • Solderless rapid assembly design
  • Indelible Laser marked with the Times part number
  • Superior pull strength /connector retention designs.

EZ-600-NMH-X LMR Connectors Superior Plating

All X series Times Microwave connectors come with Tri-metal/Albaloy plating – offering high reliability performance in saturated or wet environments due to market leading corrosion resistance.

How does the Solderless Design work?

EZ-600-NMH-X LMR connectors have gold plated spring fingers on the rear of the connector which securely snap on to the centre conductor of the cable when inserted into the connector, the spring fingers compress on to the centre conductor, achieve a low DC Bond and secure connection and eliminate the need for soldering.
