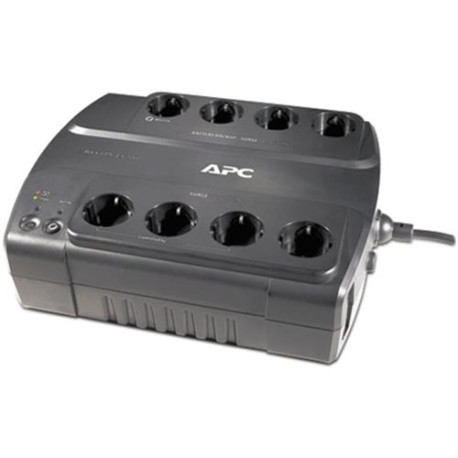

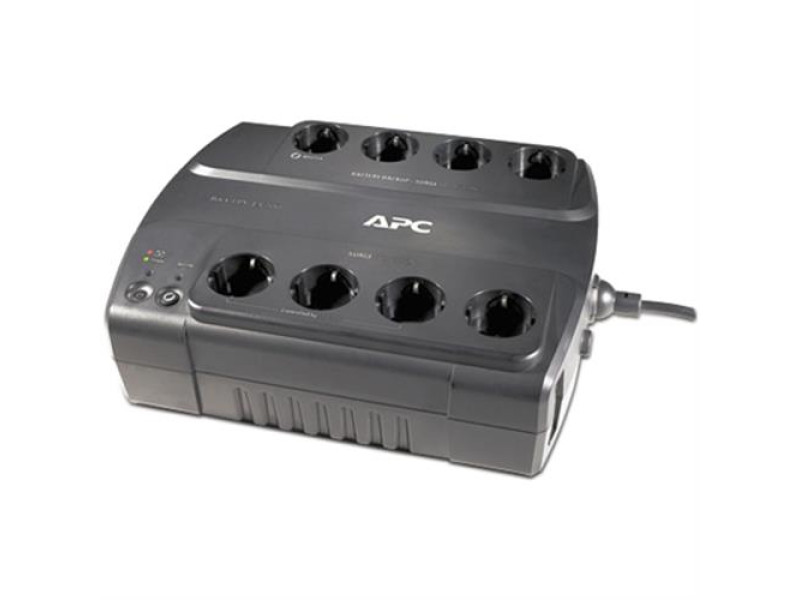

APC Back-UPS ES 700VA/405W, 8 utgångar
APC

APC Back-UPS ES 700VA/405W, 8 utgångar

Artikelnummer: BE700G-GR
Utgått ur sortimentet

APC Power-Saving Back-UPS ES 8 Outlet 700VA 230V CEE 7/7

Includes: CD with software, Cord management straps, Telephone Cable, User Manual

Output

  • Output Power Capacity: 405 Watts / 700 VA
  • Nominal Output Voltage: 230V
  • Output Frequency (sync to mains): 47 - 63 Hz
  • Waveform Type: Stepped approximation to a sinewave
  • Output Connections: (4) Schuko CEE 7 (Battery Backup), (4) Schuko CEE 7 (Surge Protection)
  • Output Voltage Tolerance: +/- 5% static and 100% load step

Input

  • Nominal Input Voltage: 230V
  • Input Frequency: 50/60 Hz +/- 5 Hz (auto sensing)
  • Cord Length: 1.83 meters
  • Maximum Input Current: 10A

Batteries & Runtime

  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time: 16 hour(s)
  • Replacement Battery: RBC17
  • Typical Backup Time at Half Load: 13.3 minutes (202.5 Watts)
  • Typical Backup Time at Full Load: 3.5 minutes (405 Watts)

Communications & Management

  • Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators

Surge Protection and Filtering

  • Surge energy rating: 310 Joules
  • Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
  • Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-45 connector),Network line - 10/100 Base-T Ethernet (RJ-45 connector)

Physical

  • Maximum Height: 89.00 mm
  • Maximum Width: 224.00 mm
  • Maximum Depth: 311.00 mm
  • Net Weight: 6.93 KG
  • Shipping Weight: 7.84 KG
  • Shipping Height: 127.00 mm
  • Shipping Width: 279.00 mm
  • Shipping Depth: 400.00 mm
  • Master Carton Weight: 16.36 KG
  • Color: Black
  • SCC Codes: 1073130427170 0

Environmental

  • Operating Environment: 0 - 40 °C
  • Operating Relative Humidity: 0 - 95%
  • Operating Elevation: 0-9000 meters
  • Storage Temperature: -15 - 40 °C
  • Storage Relative Humidity: 0 - 95%
  • Storage Elevation: 0-9000 meters
  • Audible noise at 1 meter from surface of unit: 0.00 dBA

Conformance

  • Regulatory Approvals: CE
  • Standard Warranty: 2 years repair or replace,3 years repair or replace for European Union countries
  • Equipment protection policy: Lifetime : 100000 Euro
  • Environmental Compliance: RoHS
