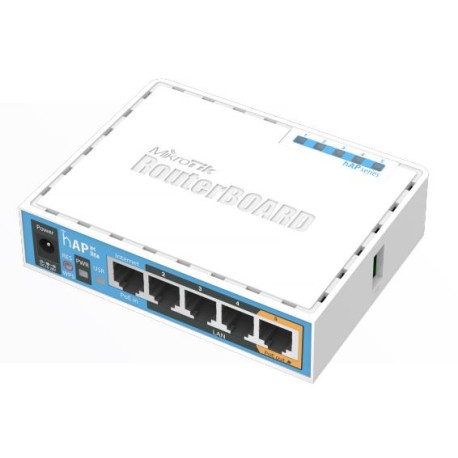

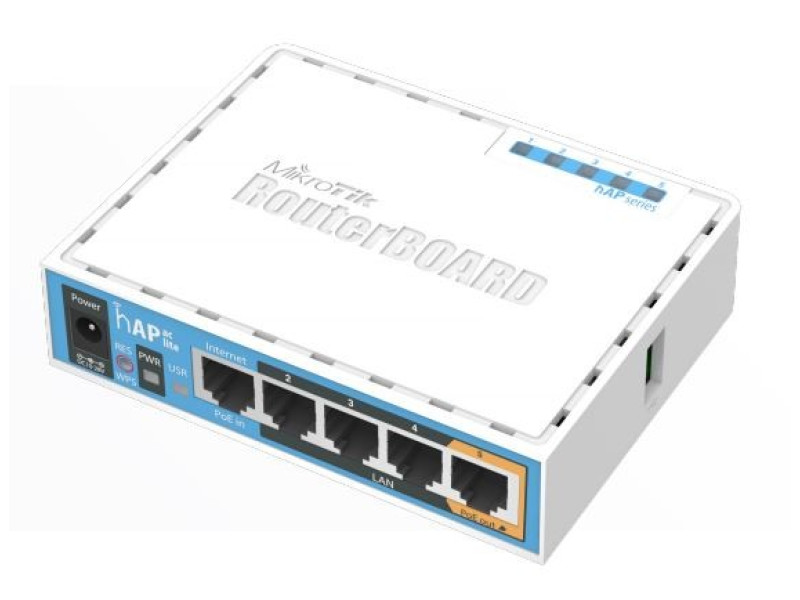

Mikrotik hAPaclite 5xLAN dualband 3x3 2.4 1x1 5GHz

The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time.  The device is very small and will look good in any home or office, wall mounting anchor holes are provided.  The hAP ac lite can be powered fr... läs mer
Artikelnummer: MKT-RB952UI-5AC2ND
Leveranstid: Beställningsvara
679 kr

The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time.

The device is very small and will look good in any home or office, wall mounting anchor holes are provided.

The hAP ac lite can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included. Unit provides PoE output function for port 5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

The hAP ac lite is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.

Mer information hos Mikrotik, klicka här

Specifications
Product code RB952Ui-5ac2nD
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 113 x 89 x 28mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -30°C to 70°C
Powering
PoE in Passive PoE
PoE out Passive PoE
PoE in input Voltage 12-30 V
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 10-30 V
Max out per port output (input < 30 V) 500 mA
Max total out (A) 500 mA
Max power consumption 8 W
Wireless
AC speed AC750
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz standards 802.11b/g/n
Wi-Fi generation 5
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 5 GHz Max data rate 433 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz chip model QCA9531
Wireless 5 GHz number of chains 1
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2
Wireless 5 GHz chip model QCA9887
Ethernet
10/100 Ethernet ports 5
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 23 -93
54MBit/s 20 -75
MCS0 23 -93
MCS7 19 -71
MCS9 16 -63
Specifications
Product code RB952Ui-5ac2nD
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 113 x 89 x 28mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -30°C to 70°C
Powering
PoE in Passive PoE
PoE out Passive PoE
PoE in input Voltage 12-30 V
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 10-30 V
Max out per port output (input < 30 V) 500 mA
Max total out (A) 500 mA
Max power consumption 8 W
Wireless
AC speed AC750
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz standards 802.11b/g/n
Wi-Fi generation 5
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 5 GHz Max data rate 433 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz chip model QCA9531
Wireless 5 GHz number of chains 1
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2
Wireless 5 GHz chip model QCA9887
Ethernet
10/100 Ethernet ports 5
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 23 -93
54MBit/s 20 -75
MCS0 23 -93
MCS7 19 -71
MCS9 16 -63
