TP-Link

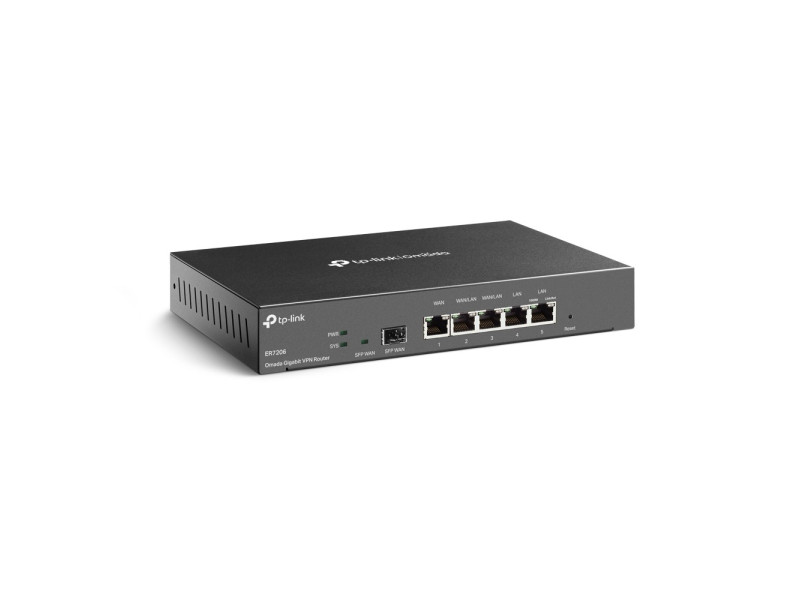

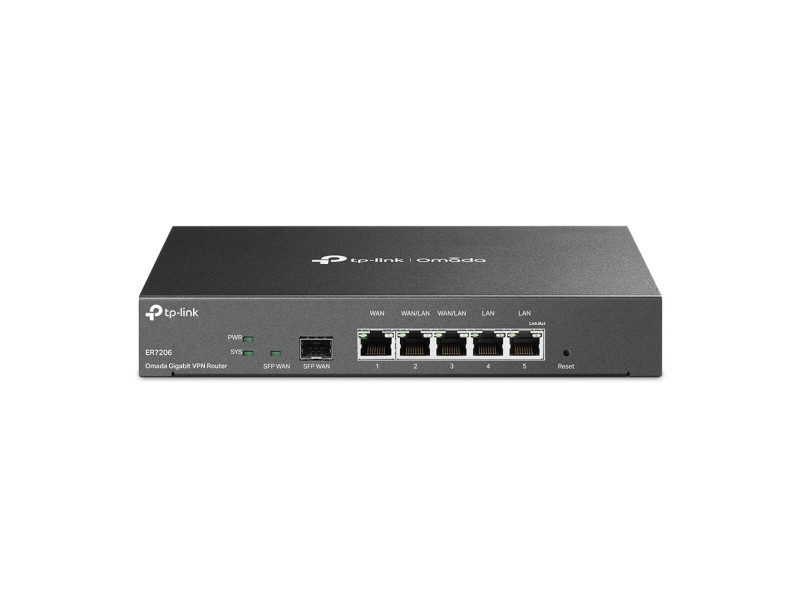

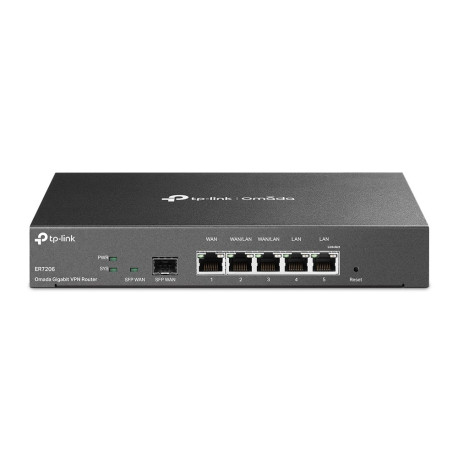

TP-Link Omada Router ER7206, SafeStream, Gigabit Multi-WAN VPN Router

Artikelnummer: ER7206
Leveranstid: Obekräftat
Datablad
Integrerad i Omada SDN: Zero-Touch Provisioning (ZTP)**, centraliserad molnhantering och intelligent övervakning. Centraliserad hantering: Molnåtkomst och Omada-appen för extrem bekvämlighet och enkel hantering. Gigabit-portar: 1 gigabit SFP och 5 gigabit RJ45-portar g... läs mer
Fri frakt
2 114 kr
Ord. pris 2 225 kr
  • Integrerad i Omada SDN: Zero-Touch Provisioning (ZTP)**, centraliserad molnhantering och intelligent övervakning.
  • Centraliserad hantering: Molnåtkomst och Omada-appen för extrem bekvämlighet och enkel hantering.
  • Gigabit-portar: 1 gigabit SFP och 5 gigabit RJ45-portar ger höghastighetskabelanslutning.
  • Upp till 4 WAN-portar: 1 gigabit SFP WAN-port, 1 gigabit RJ45 WAN-port, 2 gigabit WAN/LAN-portar optimerar bandbreddsanvändningen.

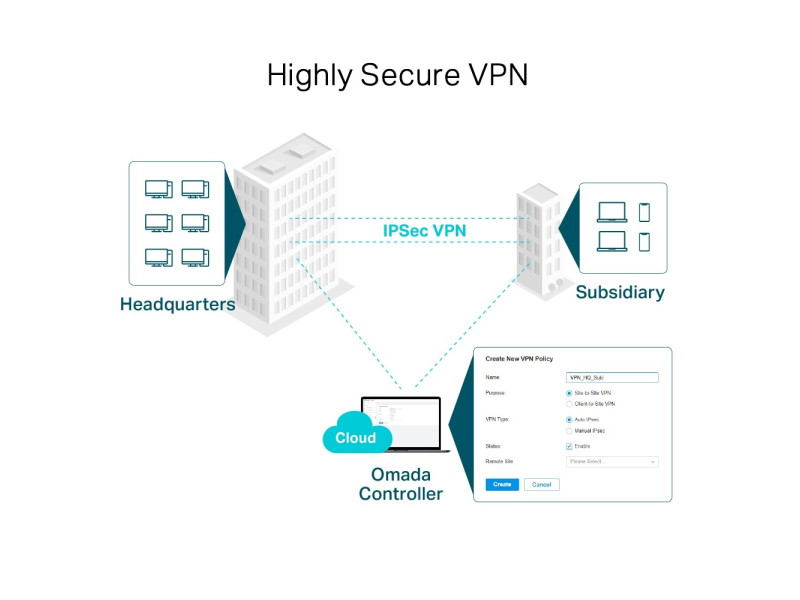

  • Mycket säker VPN: Stöder upp till 100× LAN-till-LAN IPsec, 50× OpenVPN*, 50× L2TP och 50× PPTP VPN-anslutningar.< /li>

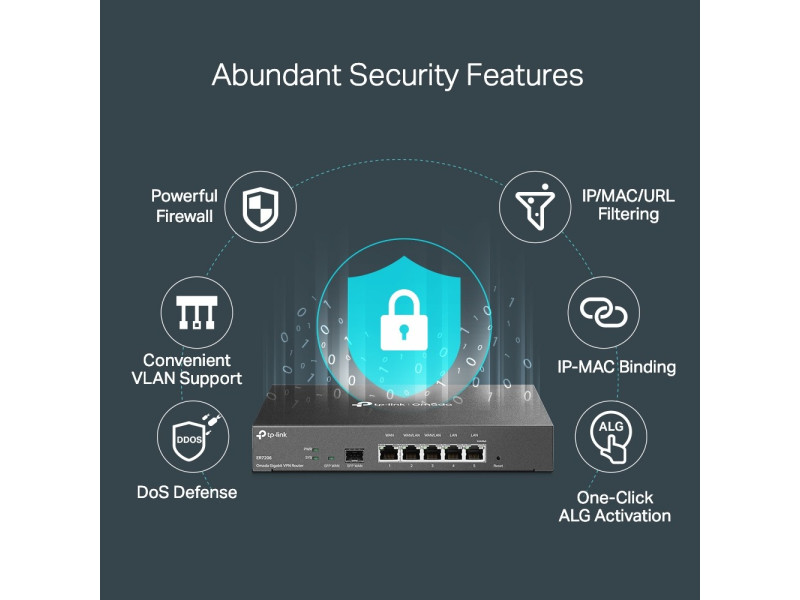

  • Rikliga säkerhetsfunktioner: Avancerade brandväggspolicyer, DoS-försvar, IP/MAC/URL-filtrering och fler säkerhetsfunktioner skyddar ditt nätverk och din data.
SECURITY
Access Control Source/Destination IP Based Access Control
Filtering WEB Group Filtering§
URL Filtering
Web Security§
ARP Inspection • Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

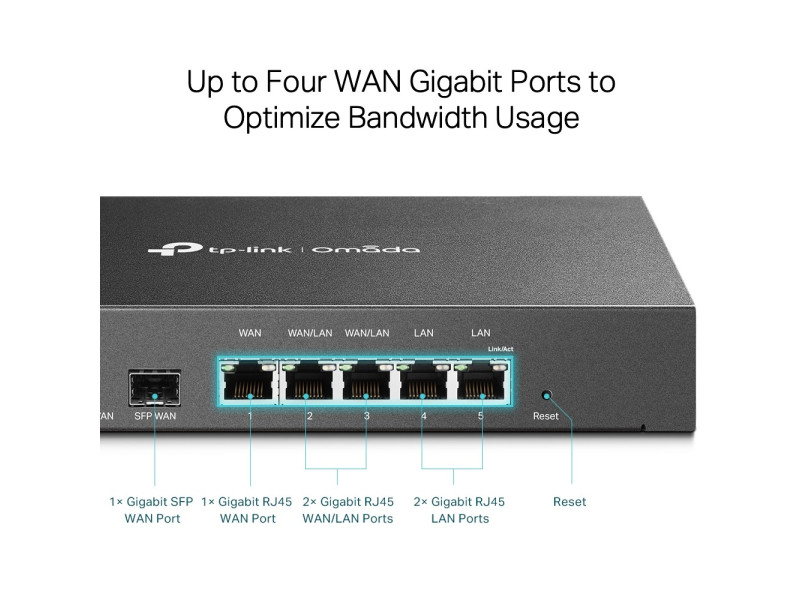

Interface • 1 Fixed Gigabit SFP WAN Port
• 1 Fixed Gigabit RJ45 WAN Port
• 2 Fixed Gigabit RJ45 LAN Ports
• 2 Changeable Gigabit RJ45 WAN/LAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Fan Quantity Fanless
Button Reset Button

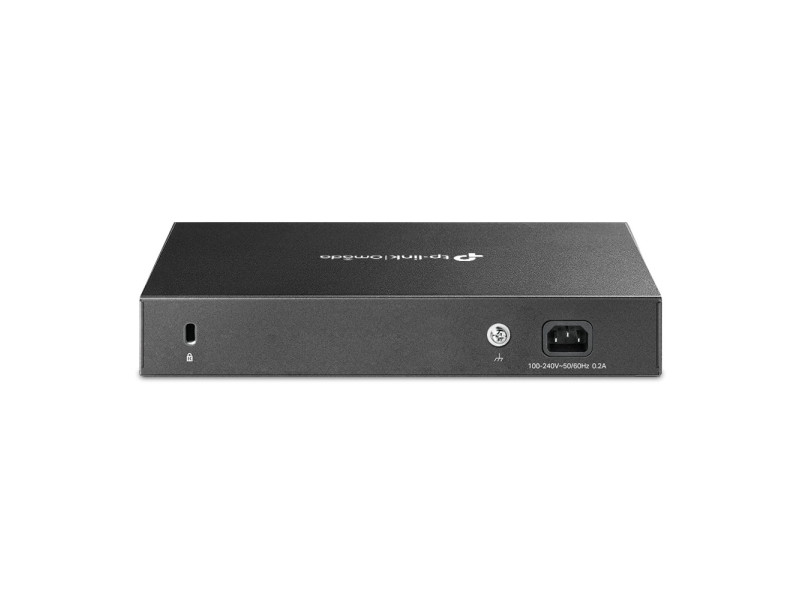

Power Supply 100–240 V~50/60 Hz
PoE Budget -
Flash SPI 4MB + NAND 128MB
DRAM 512MB
LED PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting Desktop
Max Power Consumption 8.95W
PERFORMANCE
WireGuard VPN 177.2 Mbps
Concurrent Session 150,000
New Sessions /Second 5,500
NAT (Static IP) 940.3 Mbps / 940.2 Mbps
NAT(DHCP) 940.3 Mbps / 940.4 Mbps
NAT(PPPoE) 939.7 Mbps / 937.9 Mbps
NAT (L2TP) 918.0 Mbps / 917.9 Mbps
NAT (PPTP) 918.9 Mbps / 914.7 Mbps
64 Byte Packet Forwarding Rate -
IPsec VPN Throughput (AES256) 291.6 Mbps
IPsec VPN Throughput 291.6 Mbps
OpenVPN 34.2 Mbps
L2TP VPN Throughput Unencrypted: 1360.3 Mbps
Encrypted: 202.3 Mbps
PPTP VPN Throughput Unencrypted: 1379.3 Mbps
Encrypted: 115.6 Mbps
SSL VPN Throughput -
66 Byte Packet forwarding rate 486,918 pps / 488,372 pps
1,518 Byte Packet forwarding rate 81,274 pps / 81,274 pps
BASIC FUNCTIONS
WAN Connection Type • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
MAC Clone Modify WAN/LAN MAC Address
DHCP • DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces*
• Multi-Net DHCP*
IPv6 Yes
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing
• Policy Routing
Bandwidth Control • IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection
NAT • One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security • SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
Session Limit IP-based Session Limit
VPN
SSL VPN -
IPsec VPN • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• 10 PPTP VPN Clients**
• 50 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• 10 L2TP VPN Clients**
• 50 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server*
• 10 OpenVPN Clients*
• 50 OpenVPN Tunnels*
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password*
• Hotspot(Local User / Voucher* / SMS* / Radius*)
• External Radius Sever
• External Portal Sever*
• Facebook*
MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Contents • ER7206
• Power Cord
• Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
