Mikrotik GrooveA 52 ac

Mikrotik GrooveA 52 ac är en mångsidig accesspunkt, utformad för att sitta utomhus och kan tex ta emot ett wifi-nätverk och skicka vidare på nätverkskabeln alternativt agera accesspunkt med mera. Levereras med strömadapapter, poe injektor och antenn. Detta är ett komplett... läs mer
Artikelnummer: RBGROOVEGA-52HPACN
Leveranstid: Obekräftat

Quick-start guide
Datablad
1 245 kr

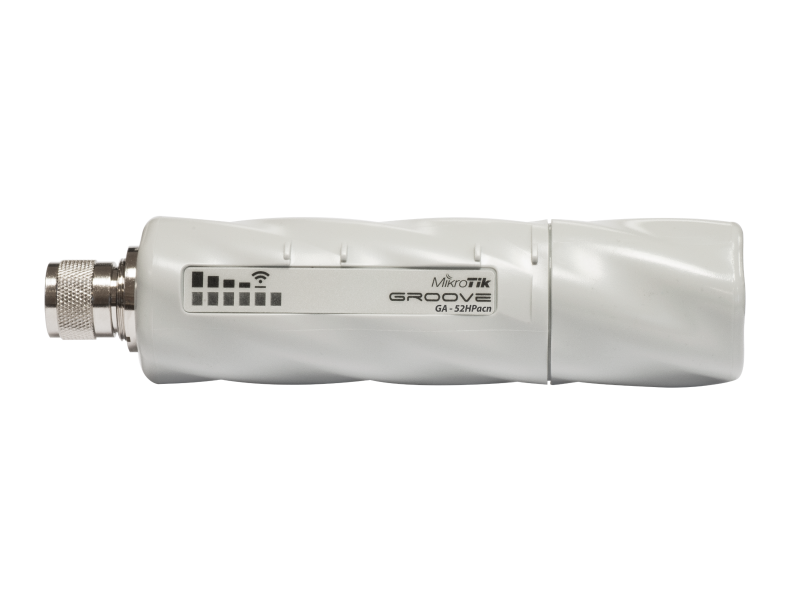

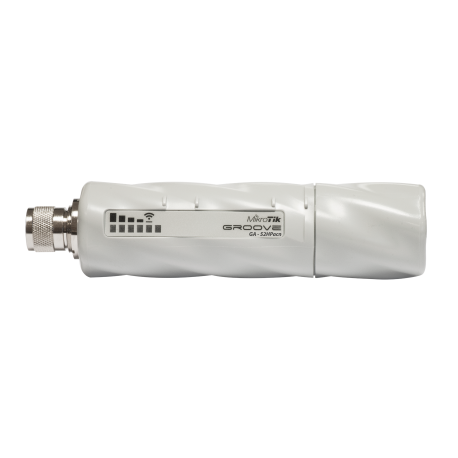

Mikrotik GrooveA 52 ac är en mångsidig accesspunkt, utformad för att sitta utomhus och kan tex ta emot ett wifi-nätverk och skicka vidare på nätverkskabeln alternativt agera accesspunkt med mera. Levereras med strömadapapter, poe injektor och antenn. Detta är ett komplett paket med alla tillbehör du behöver för att komma igång.

Weatherproof, durable and ready to use. Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilise the full benefit of 802.11ac high speed wireless.

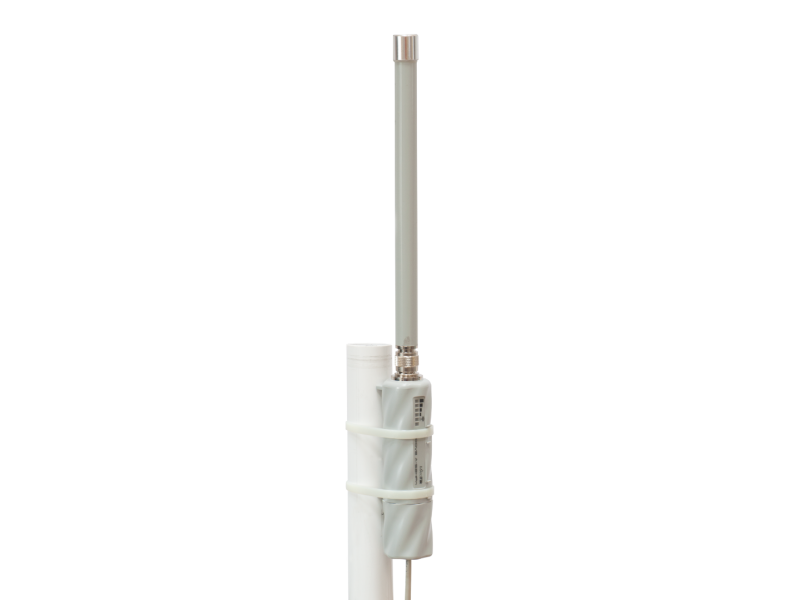

The Groove A (AP model) comes with Level 4 license and includes a Dual Band 2.4/5GHz Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz), so you can use the unit right out of the box, or use your own antenna.

- RBGrooveGA-52HPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)

Specifications
Product code RBGrooveGA-52HPacn
Architecture MIPSBE
CPU QCA9556
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 177 x 44 x 44 mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Powering
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 5 W
Wireless
Antenna gain dBi for 5 GHz/2.4 GHz 6
Wireless 5 GHz/2.4 GHz standards 802.11b/g/n, 802.11a/n/ac
Wi-Fi generation 4
Wireless 5 GHz/2.4 GHz Max data rate 433 Mbit/s
Wireless 5 GHz/2.4 GHz number of chains 1
Wireless 5 GHz/2.4 GHz chip model QCA9889
Ethernet
10/100/1000 Ethernet ports 1
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 24 -97
11MBit/s 21 -91
6MBit/s 24 -93
54MBit/s 21 -77
MCS0 24 -93
MCS7 20 -72
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -93
54MBit/s 21 -78
MCS0 26 -93
MCS7 21 -74
MCS9 19 -69
Specifications
Product code RBGrooveGA-52HPacn
Architecture MIPSBE
CPU QCA9556
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 177 x 44 x 44 mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Powering
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 5 W
Wireless
Antenna gain dBi for 5 GHz/2.4 GHz 6
Wireless 5 GHz/2.4 GHz standards 802.11b/g/n, 802.11a/n/ac
Wi-Fi generation 4
Wireless 5 GHz/2.4 GHz Max data rate 433 Mbit/s
Wireless 5 GHz/2.4 GHz number of chains 1
Wireless 5 GHz/2.4 GHz chip model QCA9889
Ethernet
10/100/1000 Ethernet ports 1
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 24 -97
11MBit/s 21 -91
6MBit/s 24 -93
54MBit/s 21 -77
MCS0 24 -93
MCS7 20 -72
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -93
54MBit/s 21 -78
MCS0 26 -93
MCS7 21 -74
MCS9 19 -69
