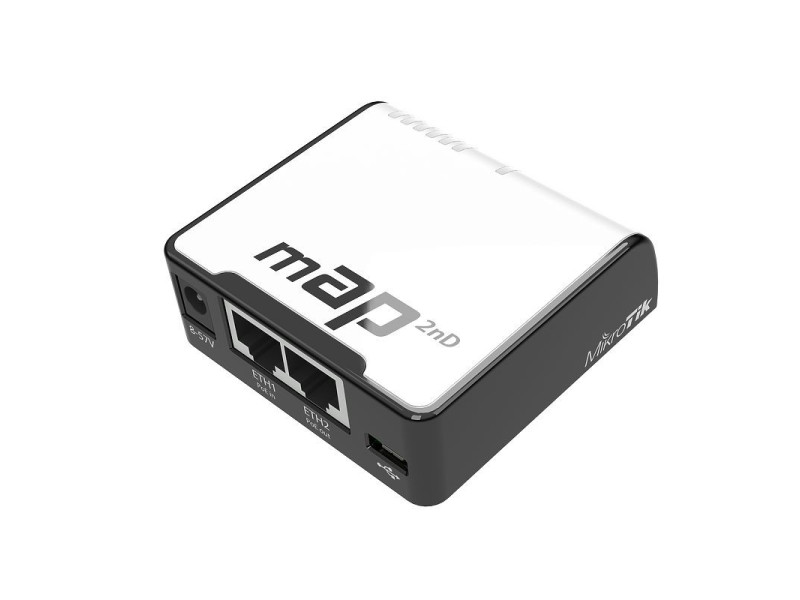

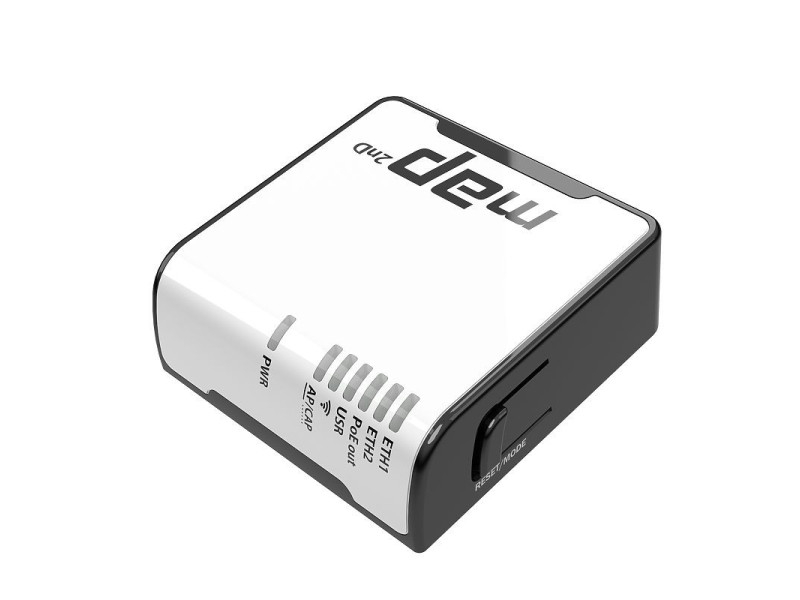

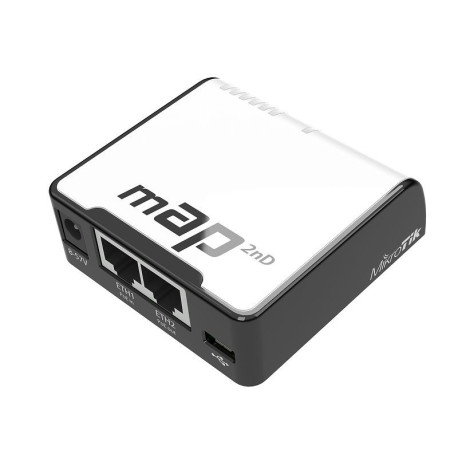

The mAP is a tiny size wireless 2.4GHz Access Point with full RouterOS capabilities.
It is very portable, since it accepts power from a wide variety of sources - USB, Passive or Active PoE (802.3af and 802.3at) and power jack.
It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
Specifications |
Product code |
RBmAP2nD |
Architecture |
MIPSBE |
CPU |
QCA9531 |
CPU core count |
1 |
CPU nominal frequency |
650 MHz |
Dimensions |
68x68x19mm |
License level |
4 |
Operating System |
RouterOS |
Size of RAM |
64 MB |
Storage size |
16 MB |
Storage type |
FLASH |
Tested ambient temperature |
-20°C to 70°C |
Powering |
MicroUSB input Voltage |
5-5 V |
PoE in |
802.3af/at |
PoE out |
Passive PoE |
PoE in input Voltage |
12-57 V |
Number of DC inputs |
3 (DC jack, MicroUSB, PoE-IN) |
DC jack input Voltage |
8-57 V |
Max out per port output (input < 30 V) |
0.5 A |
Max total out (A) |
0.5 A |
Max power consumption |
5 W |
Wireless |
Antenna gain dBi for 2.4 GHz |
1.2 |
Wireless 2.4 GHz standards |
802.11b/g/n |
Wi-Fi generation |
4 |
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz chip model |
QCA9531 |
Ethernet |
10/100 Ethernet ports |
2 |
Peripherals |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
microUSB type AB |
Max USB current (A) |
1 |
Other |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Wireless specifications |
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
1MBit/s |
22 |
-96 |
11MBit/s |
22 |
-89 |
6MBit/s |
20 |
-93 |
54MBit/s |
18 |
-74 |
MCS0 |
20 |
-93 |
MCS7 |
16 |
-71 |
