TP-Link Omada AP EAP225 Outdoor, WIFI5, AC1200, 2x2, 1 GbE, Utomhus

Artikelnummer: EAP225-Outdoor
Leveranstid: Obekräftat
Datablad
Tålig, väderbeständig hölje för Wi-Fi-applikationer utomhus Upp till 1200 Mbps1 med 2×2 MIMO-teknik Omada Mesh Technology möjliggör trådlös anslutning mellan AP:er för utökad räckvidd, vilket gör trådlösa distributioner mer flexibla och bekväma Stöder ... läs mer
1 249 kr
  • Tålig, väderbeständig hölje för Wi-Fi-applikationer utomhus
  • Upp till 1200 Mbps1 med 2×2 MIMO-teknik
  • Omada Mesh Technology möjliggör trådlös anslutning mellan AP:er för utökad räckvidd, vilket gör trådlösa distributioner mer flexibla och bekväma
  • Stöder sömlös roaming för att smidiga videouppspelningar och röstsamtal när förflyttning mellan platser
  • Hög sändningseffekt och högförstärkningsantenner ger ett täckningsområde med lång räckvidd
  • Molncentraliserad hantering och Omada-app för extrem bekvämlighet och enkel hantering
  • Captive-portalen tillhandahåller en bekväm metod för gästautentisering
  • Facebook Wi-Fi och SMS-autentisering hjälper till att stärka ditt företag
  • 802.3af/Passive PoE (PoE-adapter ingår) kompatibel och enkel monteringsdesign möjliggör flexibel användning och bekväm installation
HARDWARE FEATURES

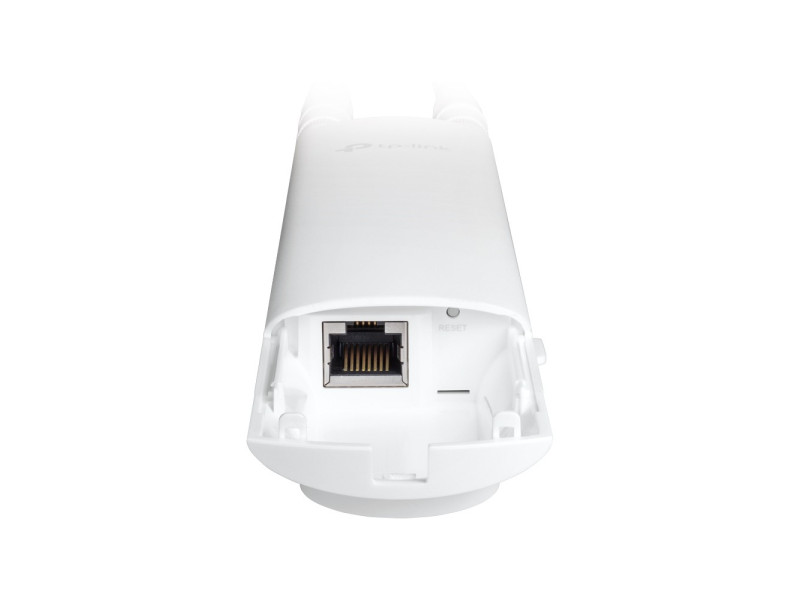

Interface 1x Gigabit Ethernet RJ-45 port
Button Reset
Power Supply 802.3af PoE and 24 Passive PoE(PoE injector included)
Power Consumption 10.5W
Dimensions ( W x D x H ) 8.5 × 1.8 × 1.1in.
(215 × 46 × 27 mm)
Antenna 2.4GHz: 2 × 3dBi
5GHz: 2 × 4dBi
Weatherproof Enclosure IP65
Mounting Pole/Wall mount (mounting kit included)
WIRELESS FEATURES
Wireless Client Capacity 220+**
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification FCC
RoHS
Package Contents AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
Passive PoE Injector
Power Cord
Mounting Kits
Installation Guide
Waterproof Rubber Insert
Waterproof Antenna
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment Operating Temperature: -30℃~70℃ (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
HARDWARE FEATURES
Interface 1x Gigabit Ethernet RJ-45 port
Button Reset
Power Supply 802.3af PoE and 24 Passive PoE(PoE injector included)
Power Consumption 10.5W
Dimensions ( W x D x H ) 8.5 × 1.8 × 1.1in.
(215 × 46 × 27 mm)
Antenna 2.4GHz: 2 × 3dBi
5GHz: 2 × 4dBi
Weatherproof Enclosure IP65
Mounting Pole/Wall mount (mounting kit included)
WIRELESS FEATURES
Wireless Client Capacity 220+**
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification FCC
RoHS
Package Contents AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
Passive PoE Injector
Power Cord
Mounting Kits
Installation Guide
Waterproof Rubber Insert
Waterproof Antenna
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment Operating Temperature: -30℃~70℃ (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
