TP-Link

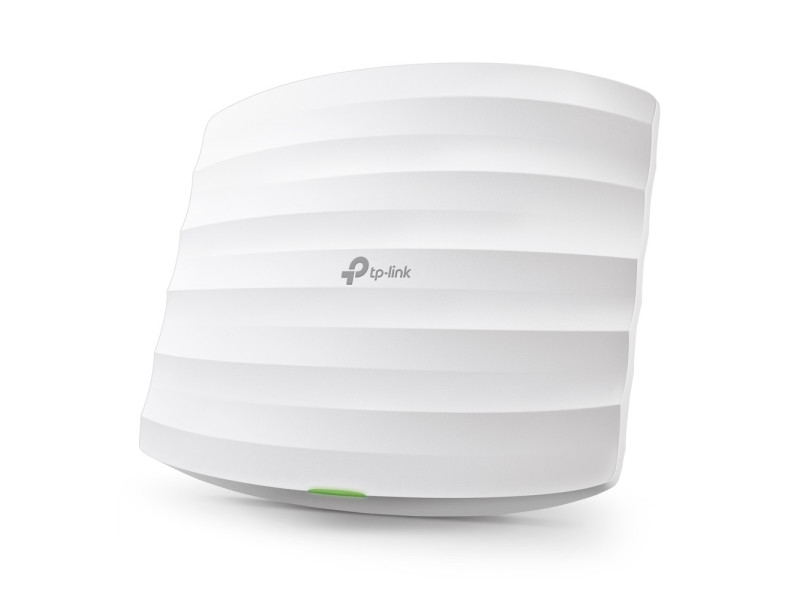

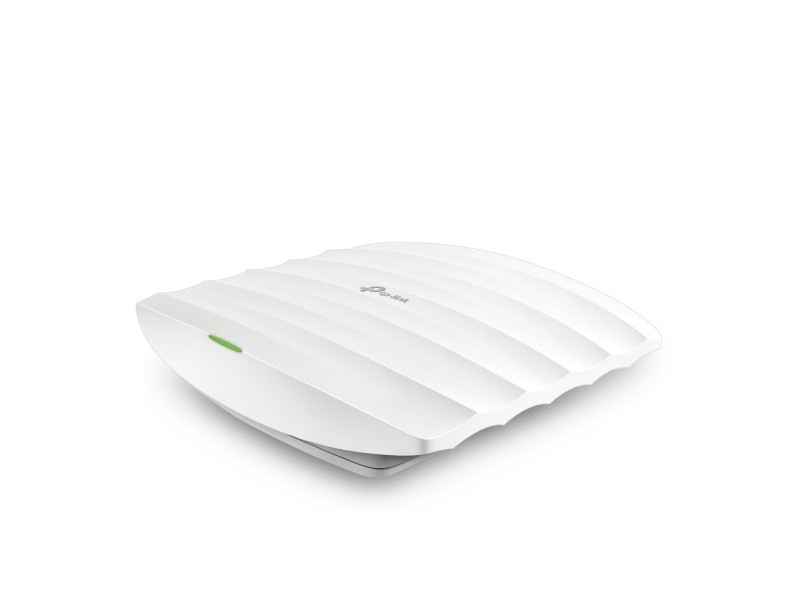

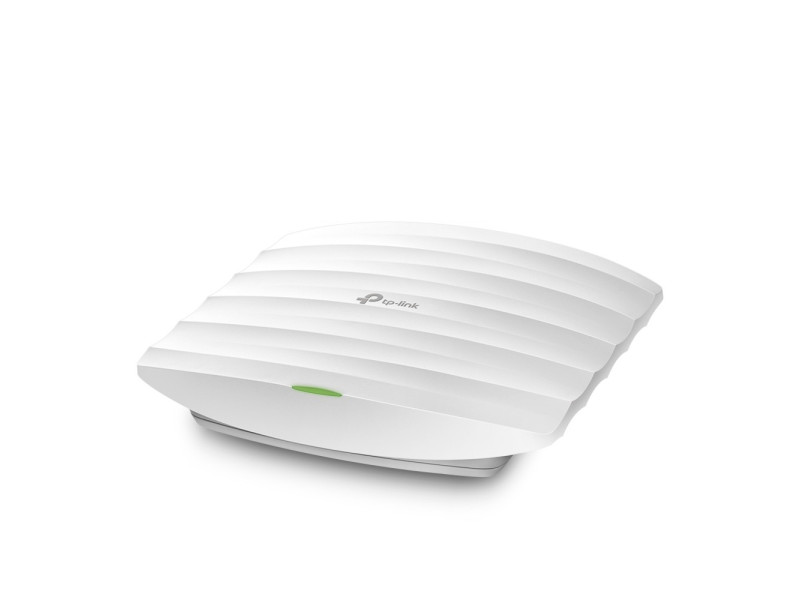

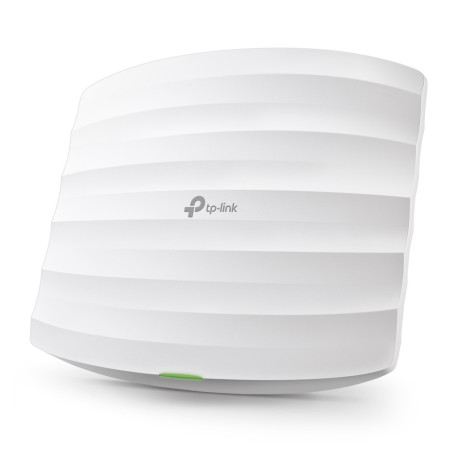

TP-Link Omada AP EAP245, WIFI5, AC1750, 4x4, 1 GbE, Inomhus

Artikelnummer: EAP245
Leveranstid: Obekräftat
Datablad
Överlägsna Wi-Fi-hastigheter och prestanda QCA-kretsuppsättningar i företagsklass, dedikerad högeffektsförstärkare och professionell antenn tillsammans med den senaste generationens 802.11ac Wave 2 MU-MIMO-teknik säkerställer överlägsna 1750 Mbps Wi-Fi-hastigheter o... läs mer
1 325 kr

Överlägsna Wi-Fi-hastigheter och prestanda

QCA-kretsuppsättningar i företagsklass, dedikerad högeffektsförstärkare och professionell antenn tillsammans med den senaste generationens 802.11ac Wave 2 MU-MIMO-teknik säkerställer överlägsna 1750 Mbps Wi-Fi-hastigheter och långdistanstäckning över 2,4 GHz och 5 GHz trådlöst band.

Sömlös roaming

802.11k/802.11v sömlös roaming växlar klienter automatiskt till åtkomstpunkten med den optimala signalen med en sömlös övergång vid förflyttning.§ Detta tillåter känsliga applikationer som VoIP och videokonferenser att gå utan avbrott.< /p>

  • Samtidiga 450 Mbps på 2,4 GHz och 1300 Mbps på 5 GHz ger totalt 1750 Mbps Wi-Fi-hastigheter
  • Gratis EAP Controller Software låter administratörer enkelt hantera hundratals EAP:er
  • Stöd Power over Ethernet(802.3at) för bekväm och prisvärd installation
  • Captive-portalen tillhandahåller en bekväm metod för gästautentisering
  • Bandstyrning flyttar automatiskt dubbla bandenheter till det bredare 5GHz-bandet för snabbare anslutningar
  • Belastningsbalans säkerställer att ett stort antal användare får smidiga nätverksupplevelser i affärsnätverk med hög täthet
HARDWARE FEATURES

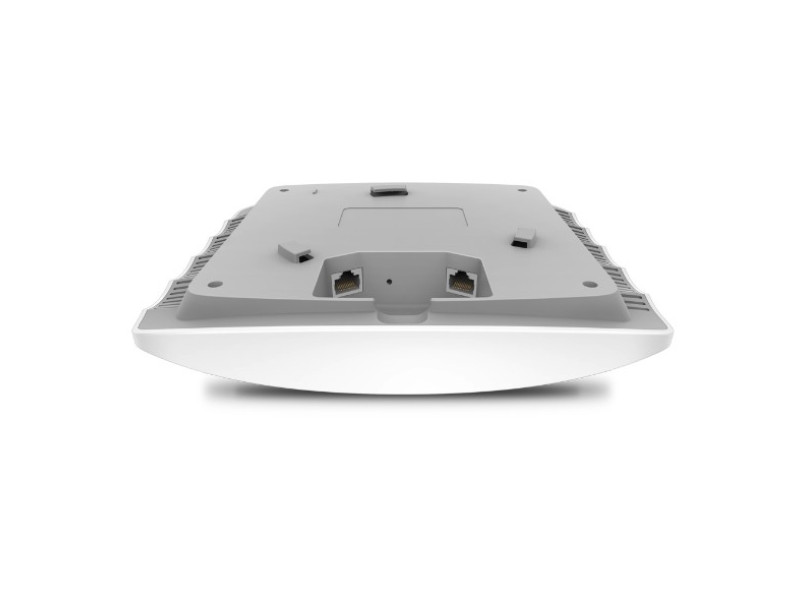

Interface 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af PoE and Passive PoE)
Physical Security Lock Yes
Button Reset
Power Supply • 802.3af/at PoE
• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter sold separately)
Power Consumption 12.3 W
Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna Type Internal Omni
• 2.4 GHz: 3× 3.5 dBi
• 5 GHz: 3× 4 dBi
Mounting Ceiling/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate • 5 GHz:Up to 1300 Mbps
• 2.4 GHz:Up to 450 Mbps
Wireless Functions • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise,
• WPA-PSK / WPA2-PSK
Transmission Power • CE:
≤20 dBm (2.4GHz)
≤23 dBm (5GHz)
• FCC:
≤24 dBm (2.4 GHz)
≤24 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents • 5 EAP245 Access Points
• 5 Mounting Kits
• 1 Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
