Ubiquiti NanoBeam 5GHz AC 19dBi Gen2
Ubiquiti NanoBeam 5GHz AC 19dBi Gen2
Ubiquiti NanoBeam 5GHz AC 19dBi Gen2
Ubiquiti

Ubiquiti NanoBeam 5GHz AC 19dBi Gen2

Artikelnummer: NBE-5AC-GEN2
Leveranstid: Obekräftat
Management Wi-Fi Radio The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. Improved Surge Protection The NanoBeam® AC features enhanced protection against ESD events. Superior Processing Ubiquiti's airMAX® engine with c... läs mer
Fri frakt
1 490 kr

Management Wi-Fi Radio
The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoBeam® AC features enhanced protection against ESD events.

Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance
The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Installation

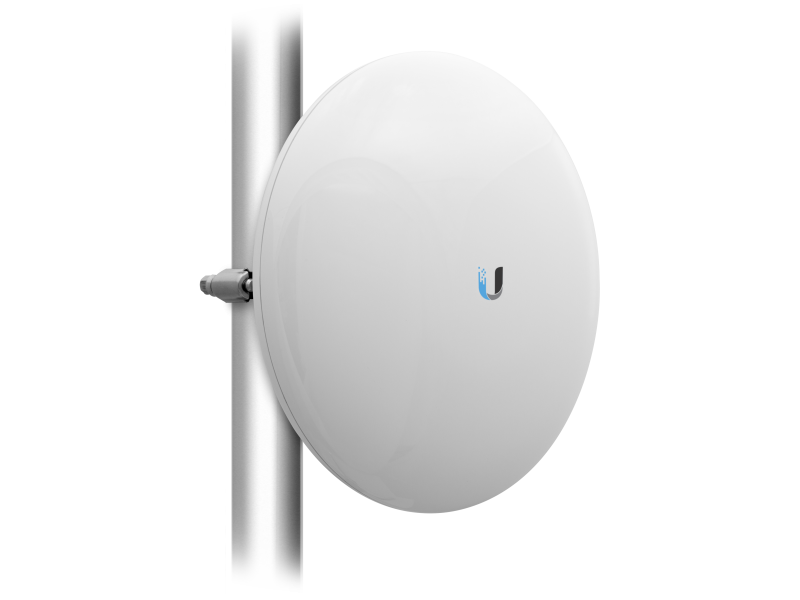

The NanoBeam® AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Data transmission
Maximal dataöverföringshastighet 450  Mbit/s
Antenn
Antenn ökningsnivå (max) 19  dBi
Trådlös LAN
Frekvensband 2.412 - 2.472,
5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85  GHz
Modulator 16-QAM,64-QAM,256-QAM,BPSK,QPSK
Anslutningar
Antalet Ethernet (RJ-45) anslutningar 1
Nätverksansluten (Ethernet) Ja
Bevakning
Kryptering/säkerhet WPA2
Management features
Webbaserad adminstraion Ja
Egenskaper
Produktens färg White
Indikationer LAN,Power,Signal strength
Internminne 128  MB
Miljökrav
Omgivningstemperatur vid drift -40 - 80  ° C
Omgivningstemperatur vid drift -40 - 176  ° F
Intervall för relativ operativ luftfuktighet 5 - 95  %
Certifikat
Certifiering CE, FCC, IC, RoHS
Vikt & dimension
Vikt 530  g
Produktstorlek (BxDxH) 189 x 189 x 125  mm
Data transmission
Maximal dataöverföringshastighet 450  Mbit/s
Antenn
Antenn ökningsnivå (max) 19  dBi
Trådlös LAN
Frekvensband 2.412 - 2.472,
5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85  GHz
Modulator 16-QAM,64-QAM,256-QAM,BPSK,QPSK
Anslutningar
Antalet Ethernet (RJ-45) anslutningar 1
Nätverksansluten (Ethernet) Ja
Bevakning
Kryptering/säkerhet WPA2
Management features
Webbaserad adminstraion Ja
Egenskaper
Produktens färg White
Indikationer LAN,Power,Signal strength
Internminne 128  MB
Miljökrav
Omgivningstemperatur vid drift -40 - 80  ° C
Omgivningstemperatur vid drift -40 - 176  ° F
Intervall för relativ operativ luftfuktighet 5 - 95  %
Certifikat
Certifiering CE, FCC, IC, RoHS
Vikt & dimension
Vikt 530  g
Produktstorlek (BxDxH) 189 x 189 x 125  mm
