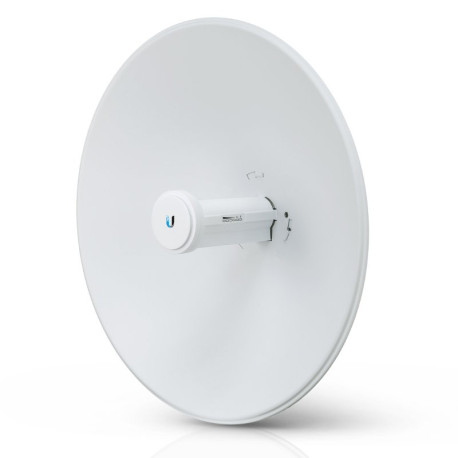

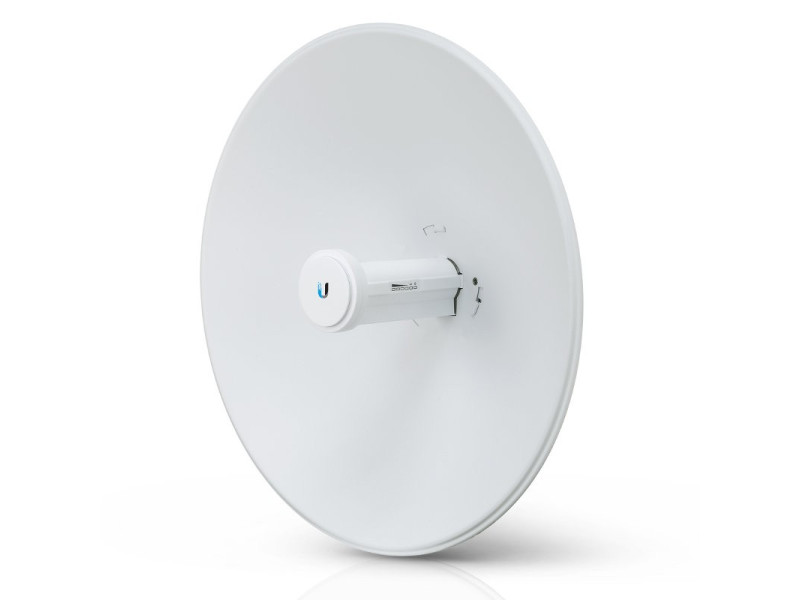

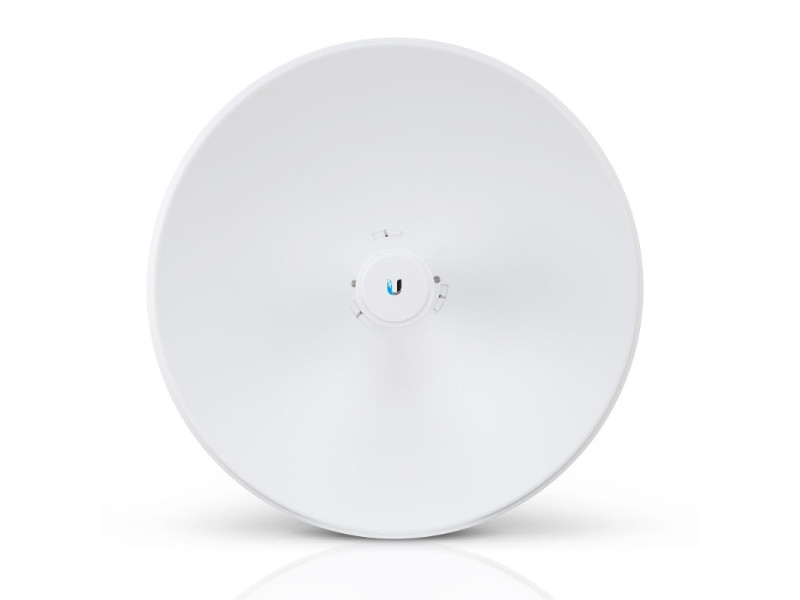

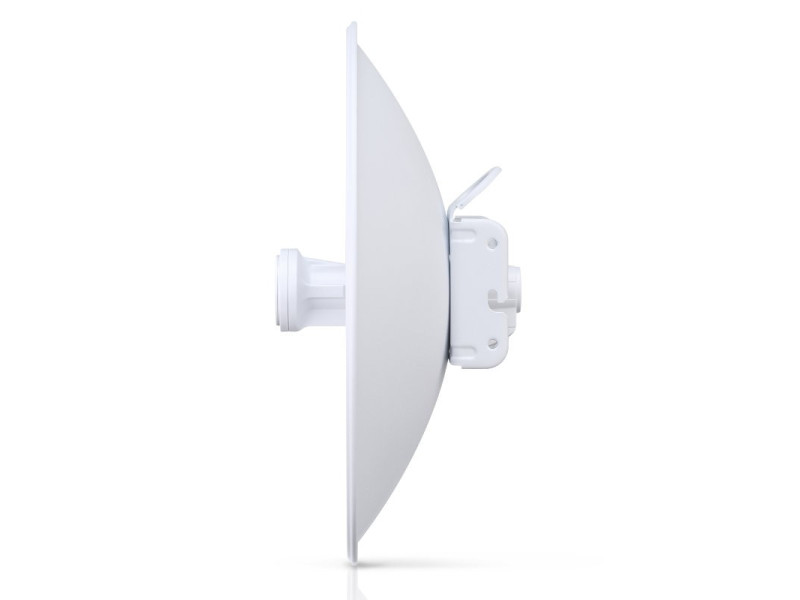

Ubiquiti PowerBeam AC Gen2

Management Wi-Fi Radio The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. Improved Mounting and Surge Protection Featuring enhanced protection against ESD events, the PowerBeam® AC offers a more robust mount with a conveni... läs mer
Artikelnummer: PBE-5AC-Gen2
Lagersaldo: 4st
Redo för omgående leverans.


Datablad
1 690 kr

Management Wi-Fi Radio
The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the PowerBeam® AC offers a more robust mount with a convenient lifting loop or handle.

Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Plug and Play Installation
The PowerBeam® AC requires no tools for assembly; only a single wrench is required for pole-mounting.

Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance
The form factor of the PowerBeam® AC features the highest gain for its size. The PowerBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Skriv ut produktsidan

Technical specification
Dimensions 420 x 420 x 230mm (16.54 x 16.54 x 9.06")
Weight 2.22 kg (4.89 lb)
Gain 25 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor MIPS 74Kc
Enclosure Characteristics Antenna Feed: Outdoor UV Stabilized Plastic
Dish Reflector: Powder-Coated SPCC
Max. Power Consumption 8.5W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20 to 26VDC
Wind Loading 380 N @ 200 km/h (85.4lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Certifications CE, FCC, IC
Mounting Pole-Mount (Kit Included)
Operating Temperature -40 to 70 C (-40 to 158 F)
Operating Humidity 5 to 95% Noncondensing
Operating Frequency Worldwide: 5150-5875 MHz
USA: U-NII-1: 5150-5250 MHz, U-NII-2-A: 5250-5350 MHz, U-NII-2C: 5470-5725 MHz, U-NII-3: 5725-5850 MHz
