Ubiquiti

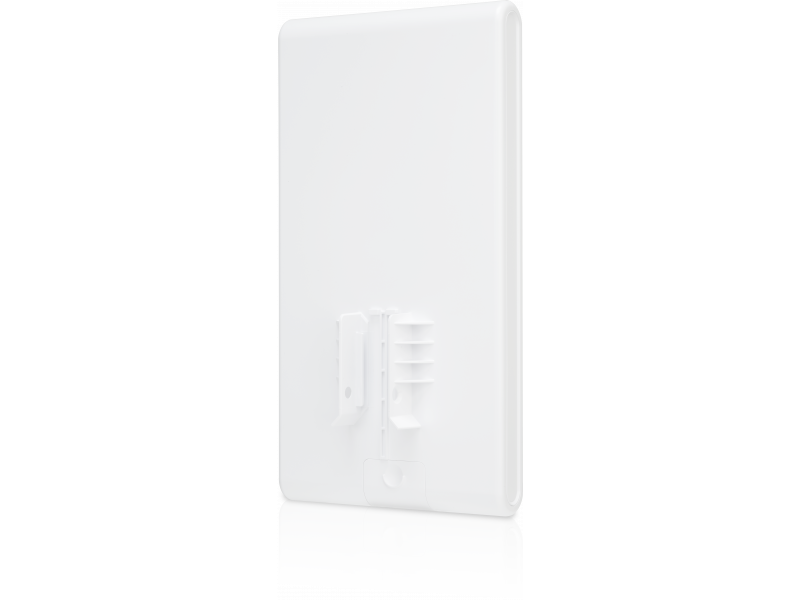

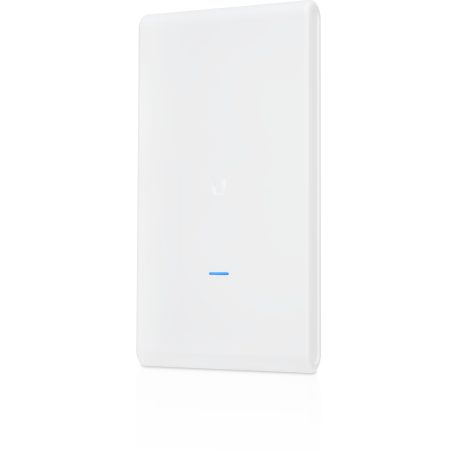

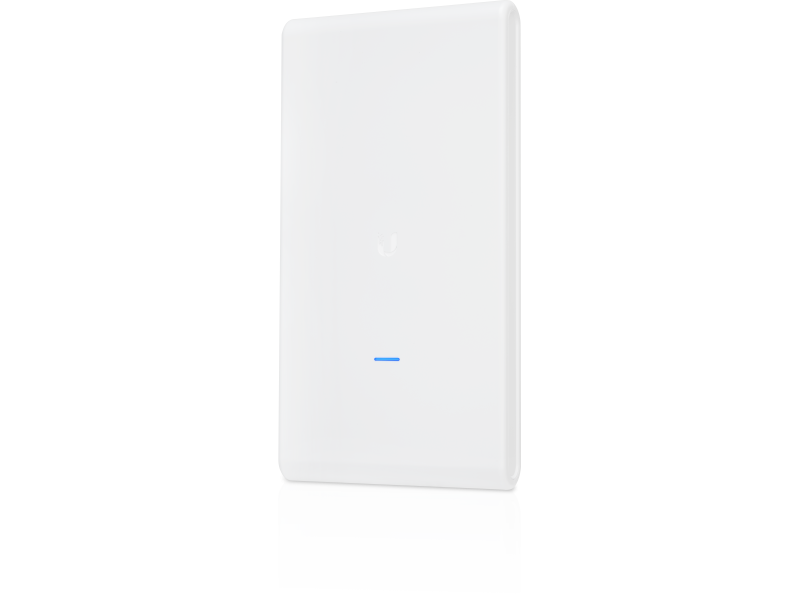

UniFi AC Outdoor AP Mesh Pro Dual-omni ant

UniFi AC Outdoor AP Mesh Pro Dual-omni ant Ubiquiti UAP-AC-M-PRO is the pro version of their mesh access points. It can provide coverage to large outdoor areas, such as a park, using a mesh network comprised of mesh access points. This UAP-AC-M-PRO is ideal for applications re... läs mer
Artikelnummer: UBI-UAP-AC-M-PRO
Leveranstid: Obekräftat
Fri frakt
2 499 kr

UniFi AC Outdoor AP Mesh Pro Dual-omni ant

Ubiquiti UAP-AC-M-PRO is the pro version of their mesh access points. It can provide coverage to large outdoor areas, such as a park, using a mesh network comprised of mesh access points. This UAP-AC-M-PRO is ideal for applications requiring 3x3 MIMO data rates for close-in omni coverage. The nature of these devices allows for quick outdoor installations and takedowns, without needing prior infrastructure.

Product Features

  • Weather-Resistant Form Factor: The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it deal for outdoor deployment.
  • LED: Unique provisioning LED provides administrator location tracking and alerts for each device.
  • Powerful Coverage: Built-in dual-band omnidirectional antennas deliver expanded range coverage outdoors.
  • Mounting Flexibility: The UniFi AC Mesh Pro AP can be mounted on a wall or pole. (all accessories are included).
  • Dual Gigabit Ethernet Ports: The primary port is for data and PoE; the secondary port is for bridging.
  • Multiple Power Options: You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter. We recommend powering your UniFi devices with a UniFi PoE Switch.


Product Specifications

  • Dimensions: 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37 ")
  • Weight: 633 g (1.40 lbs)
  • Networking Interface: (2) 10/100/1000 Ethernet Ports
  • Buttons: Reset
  • Power Method: 802.3af PoE (Supported Voltage Range: 44 to 57 VDC)
  • Power Supply: 48V, 0.5A PoE Gigabit Adapter (Included)
  • Maximum Power Consumption: 9 W
  • Maximum TX Power:
    2.4 GHz: 22 dBm
  • 5 GHz: 22 dBm
  • Antennas: (3) Internal Dual-Band Antennas, 8 dBi
  • Wi-Fi Standards: 802.11a/b/g/n/ac
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • BSSID: Up to Four per Radio
  • Mounting: Wall/Pole (Pole Kit Included)
  • Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Operating Humidity: 5 to 95% non-condensing
  • Certifications: CE, FCC, IC


Advanced Traffic Management

  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guest Traffic Isolation: Supported
  • WMM: Voice, Video, Best Effort, and Background
  • Concurrent Clients: 200+'


Supported Data Rates (Mbps)

  • 802.11ac: 6.5 to 1300 Mbps (MCS0 - MCS9 NSS1/2/3/, VHT 20/40/80)
  • 802.11n: 6.5 to 450 Mbps (MCS0 - MCS23, HT 20/40)
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b: 1, 2, 5.5, 11 Mbps
