Ubiquiti

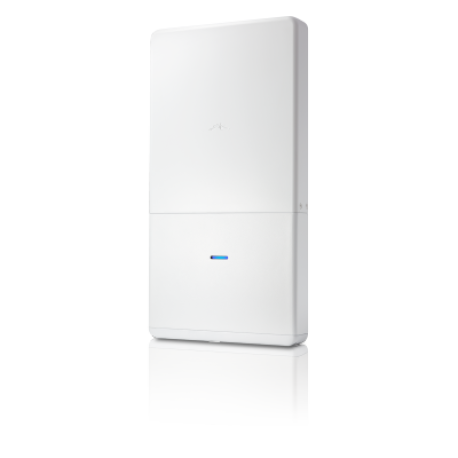

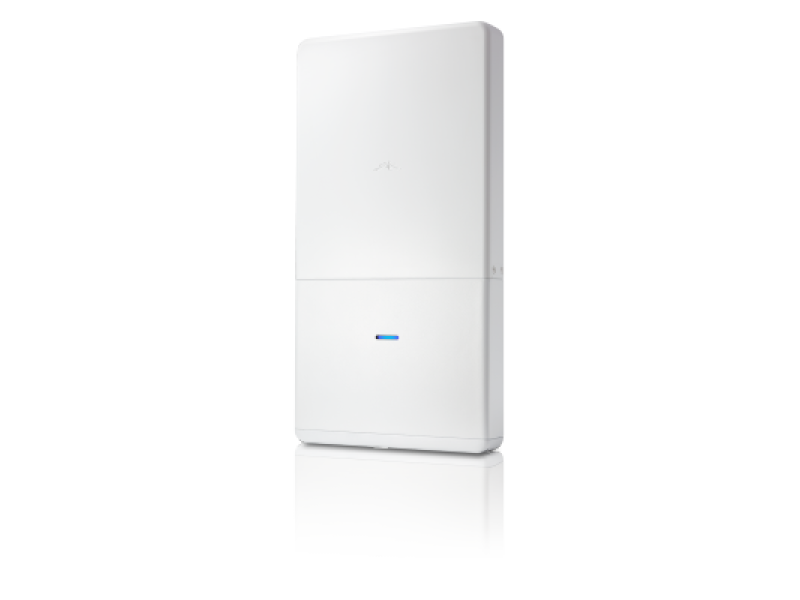

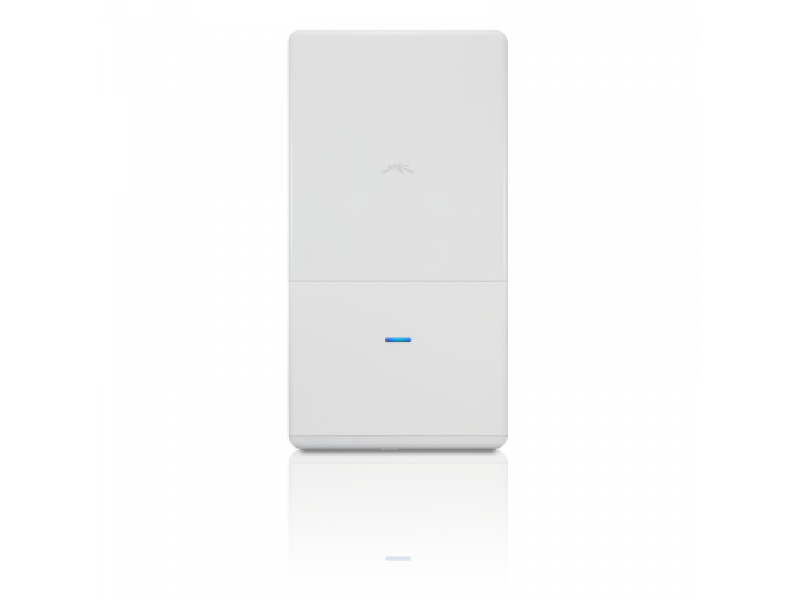

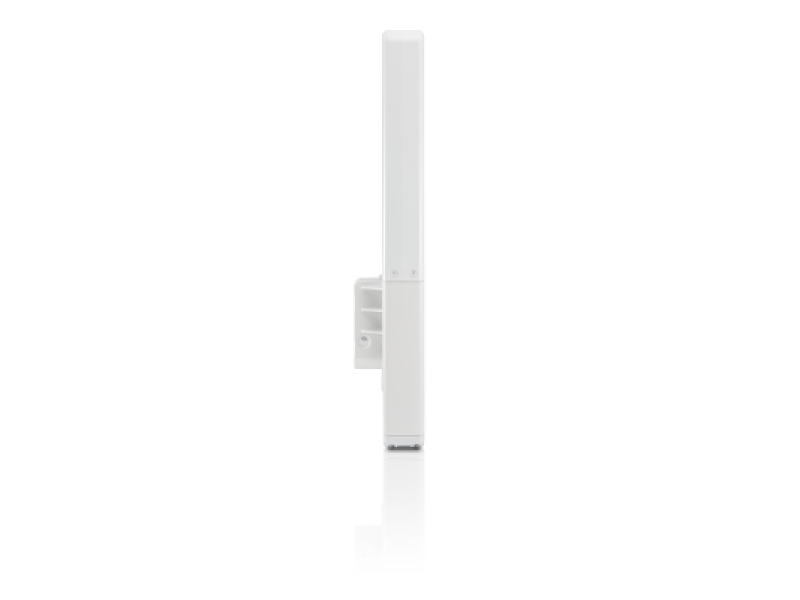

UniFi outdoor AC model AP 3x3 MIMO

MIMO Outdoor AP Featuring Wi-Fi 802.11ac and a weather-resistant case for outdoor installation, the UniFi® AP-AC Outdoor is a Ubiquiti Networks® Access Point (AP), ideal for deployment of high-performance wireless networks. UniFi AP-AC Outdoor Specifications Dimen... läs mer
Artikelnummer: UAP-OUTDOOR-AC
Leveranstid: 2-3 Dagar
Fri frakt
5 299 kr

MIMO Outdoor AP

Featuring Wi-Fi 802.11ac and a weather-resistant case for outdoor installation, the UniFi® AP-AC Outdoor is a Ubiquiti Networks® Access Point (AP), ideal for deployment of high-performance wireless networks.

UniFi AP-AC Outdoor Specifications

  • Dimensions 340 x 180 x 65 mm (13.39 x 7.09 x 2.56 in)
  • Weight 1.55 kg (3.42 lb) with Wall Mount 2 kg (4.41 lb) with Pole Mount

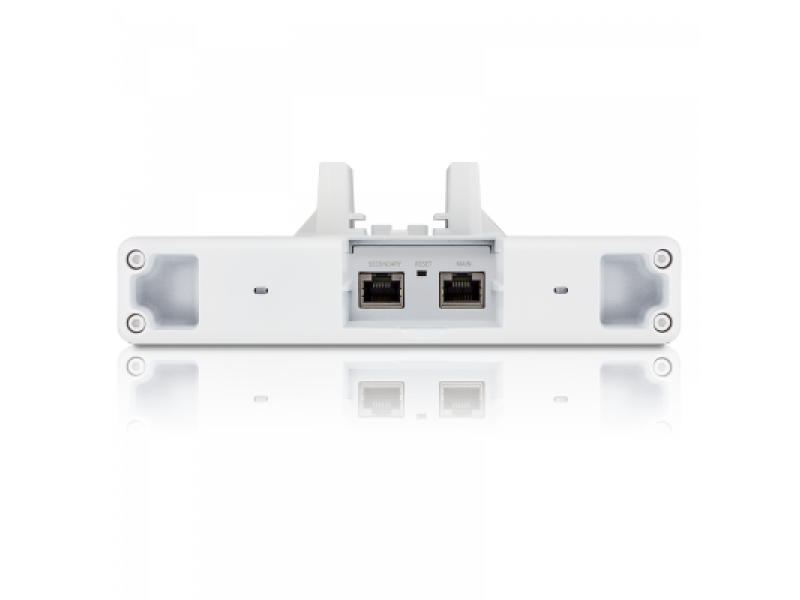

  • Networking Interface (2) 10/100/1000 Ethernet Ports
  • Buttons Reset
  • Wi-Fi Standards 802.11 a/b/g/n/ac
  • Power Method Passive Power over Ethernet (48V), 802.3at Supported
  • (Supported Voltage Range: 39 to 57VDC)
  • Power Supply 48V, 0.5A PoE Gigabit Adapter (Included)
  • Maximum Power Consumption 22 W
  • BSSID Up to Four Per Radio
  • Power Save Supported
  • Wireless Security WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
  • Certifications CE, FCC, IC

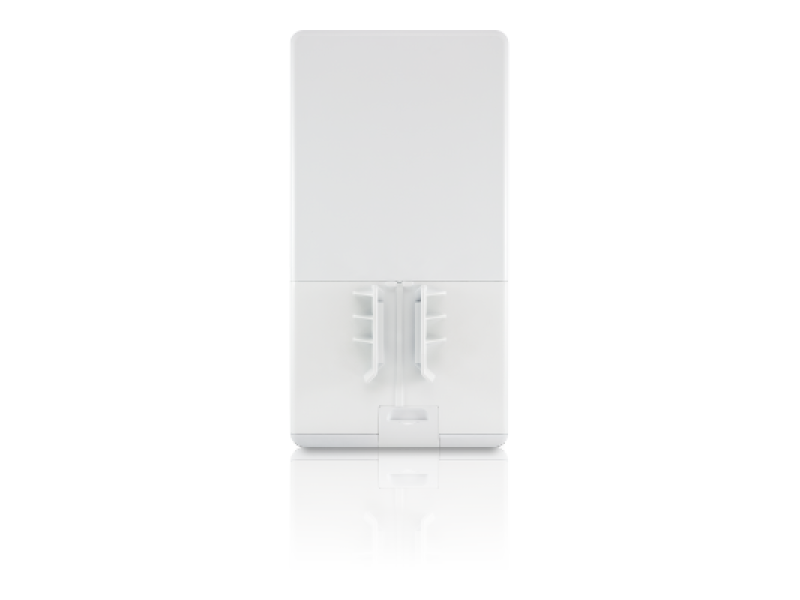

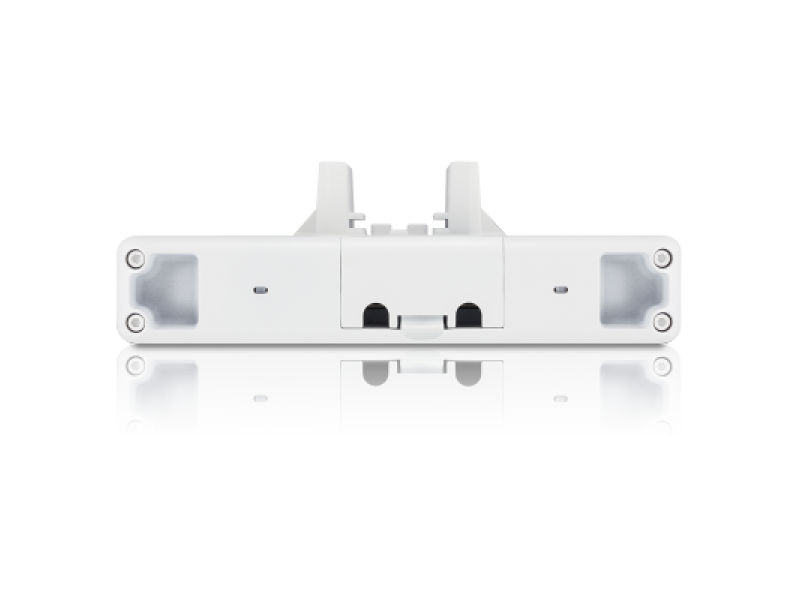

  • Mounting Wall and Pole (Kits Included)
  • Operating Temperature -30 to 60 °C (-22 to 140 °F)
  • Operating Humidity 5 - 80% Non-Condensing

Antennas

  • 2.4 GHz - Integrated 5 dBi Omni (Supports 3x3 MIMO with Spatial Diversity)
  • 5 GHz - Integrated 5 dBi Omni (Supports 3x3 MIMO with Spatial Diversity)

Maximum TX Power

  • 2.4 GHz - 28 dBm
  • 5 GHz - 28 dBm

Advanced Traffic Management

  • VLAN 802.1Q
  • Advanced QoS Per-User Rate Limiting
  • Guest Traffic Isolation Supported
  • WMM Voice, Video, Best Effort, and Background
  • Concurrent Clients 200+

Supported Data Rates (Mbps)

  • 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
  • 802.11ac 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
  • 802.11b 1, 2, 5.5, 11 Mbps
  • 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
