Air802 - Direct DC Insertion to Power-Over-Ethernet (PoE) Adapter
Lagersaldo: 5st
Denna PoE-adapter möjliggör tillförsel av ström från en DC-källa direkt in på en RJ45 kabel. Passar bra att strömförsörja accesspunkter, kameror eller annan PoE utrustning i tex båtar, fordon eller andra platser där 220v saknas men tex +12v dc finns.

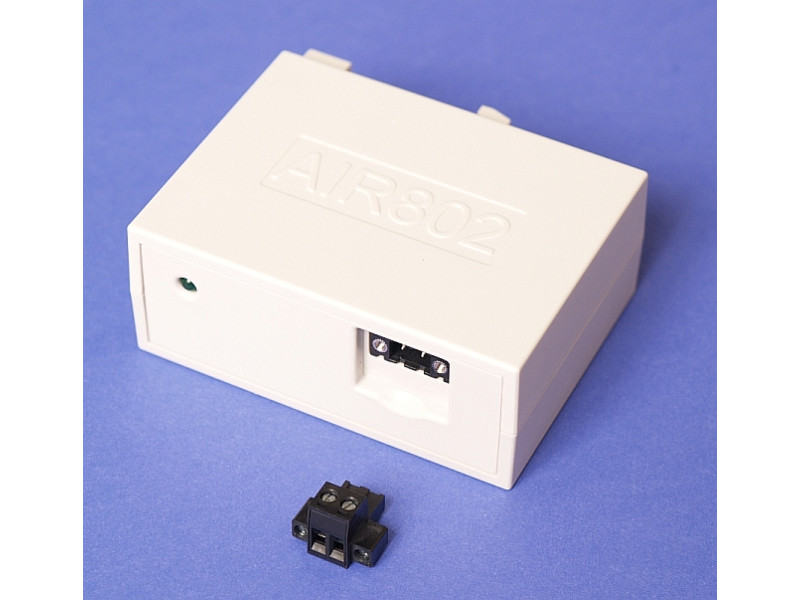

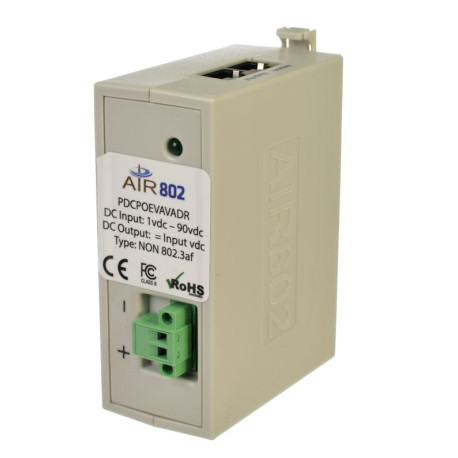

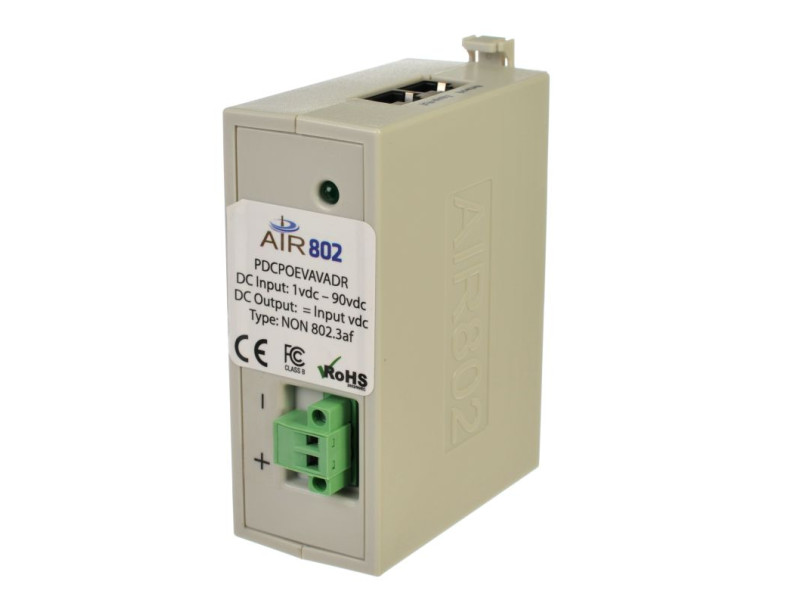

The model PDCPOEVAVADR is a dc voltage to Power-over-Ethernet (PoE) kit. It provides a simple clean way to connect a DC power source and have it exit as PoE. No voltage conversion takes place. Whatever voltage is connected to the DC power screw terminals simply passes through and out the device's PoE port. The green LED will indicate detection of voltage. This model is designed for din rail mounting. AIR802 offers short sections of DIN Rail mount for our customers.

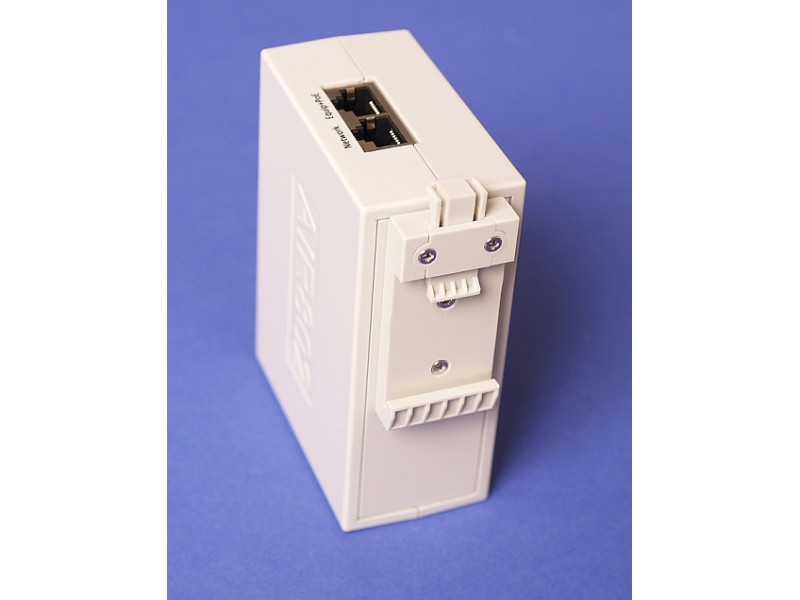

There are two shielded Ethernet jacks on the top of the device. One jack is labeled, "Network" for network connectivity and will ordinarily connect to a switch, router, computer or other device, if used. The other jack is labeled, "Equip + PoE" and is the output jack. The output voltage equals the input voltage. Internally the data pins 1,2,3 and 6 are internally connected together between the two jacks. Pins 4 and 5 (+vdc) and pins 7 and 8 (-vdc - ground) are switched between the external dc connector or the Network jack to the Equip + PoE jack. This is compliant with IEEE 802.3af Mode B specifications. If the equipment uses the 802.11af Mode A specification it will not work properly.
Applications of the Direct DC Insertion to Power-Over-Ethernet (PoE) Adapter:
- Powering access points from direct dc source
- Powering IP cameras from direct dc source
Terminology Note: Due to various use of terminology, this product maybe referred to as: power-over-ethernet injector, poe injector, dc-dc converter, dc inserter, dc-dc conversion with poe, dc to poe conversion kit
POWER INPUT | |
---|---|
Input DC Voltage Range | Any DC voltage |
Input Option | Direct Screw Terminal |
POWER OUTPUT | |
Output DC Voltage | Same voltage as input |
ENVIRONMENTAL | |
Operating Temperature | -30° to 60° (-22º to 140ºF) |
Storage Temperature | -30° to 70° (-22º to 158ºF), Humidity 5 to 90% RH |
MECHANICAL | |
Mounting | DIN rail |
Dimensions (HxDxW) | 10cm (3.8") x 9cm (3.5") x 4cm (1.5") *from DIN rail mount to edge of DC connector |
Weight | 120 grams (4.2 ounces) |
Enclosure Material | PC UL 94 V-0 |
POWER INPUT | |
---|---|
Input DC Voltage Range | Any DC voltage |
Input Option | Direct Screw Terminal |
POWER OUTPUT | |
Output DC Voltage | Same voltage as input |
ENVIRONMENTAL | |
Operating Temperature | -30° to 60° (-22º to 140ºF) |
Storage Temperature | -30° to 70° (-22º to 158ºF), Humidity 5 to 90% RH |
MECHANICAL | |
Mounting | DIN rail |
Dimensions (HxDxW) | 10cm (3.8") x 9cm (3.5") x 4cm (1.5") *from DIN rail mount to edge of DC connector |
Weight | 120 grams (4.2 ounces) |
Enclosure Material | PC UL 94 V-0 |
