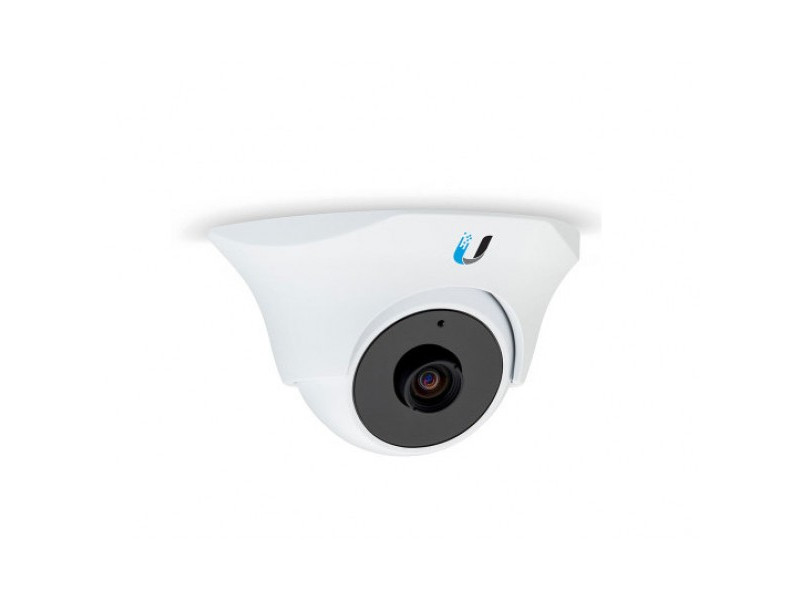

UniFi UVC Dome IR
Ubiquiti

UniFi UVC Dome IR

Artikelnummer: UBI-UVC-DOME
Utgått ur sortimentet

Ersättare
UniFi camera DOME G3 1080p IR

The UniFi® Video Camera Dome is part of the UniFi Video surveillance management system. It records 720p HD video, day or night, indoors.

UVC-Dome Specifications

  • Dimensions 111 x 96 x 96 mm (4.4 x 3.8 x 3.8")
  • Weight 178 g (6.28 oz)
  • Ports (1) 10/100 Ethernet, MicroSD Card Slot
  • Sensor ¼" CMOS Image Sensor
  • Lens 1.96 mm/F2.0
  • Power LED Amber
  • Link/Activity LED Green
  • Night Mode IR LED with Mechanical IR Cut Filter
  • Microphone Yes
  • Buttons Factory Reset Button
  • Power Method Passive Power over Ethernet (12-24V)
  • Power Supply 24V, 0.5A PoE Adapter Included
  • Maximum Power Consumption 4 W
  • Certifications CE, FCC, IC
  • Mounting Ceiling Mount
  • Operating Temperature 0 to 40° C (32 to 104° F)
  • Operating Humidity 20 - 90% Noncondensing

Video

  • Video Compression H.264
  • Resolution 720p HD (1280 x 720)
  • Maximum Frame Rate 30 FPS
  • Image Setting Brightness, Contrast, Sharpness, Saturation, Mirror, Flip, Noise Reduction, 50/60 Hz

General

  • Processor ARM 1136J-S 528 MHz
  • Memory 256 MB DDR3
  • Flash Memory Support (1) MicroSD Card Slot
  • View Angle:
  • 88.8° (H)
  • 63.0° (V)
  • 98.2° (D)
