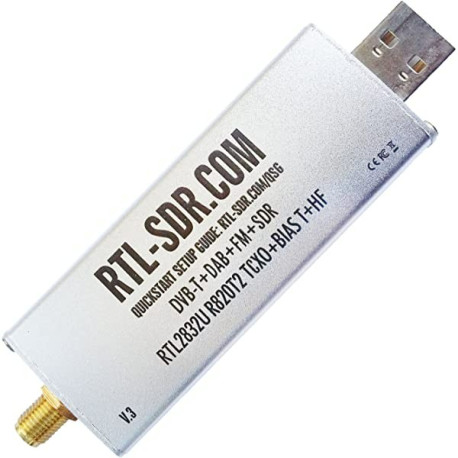

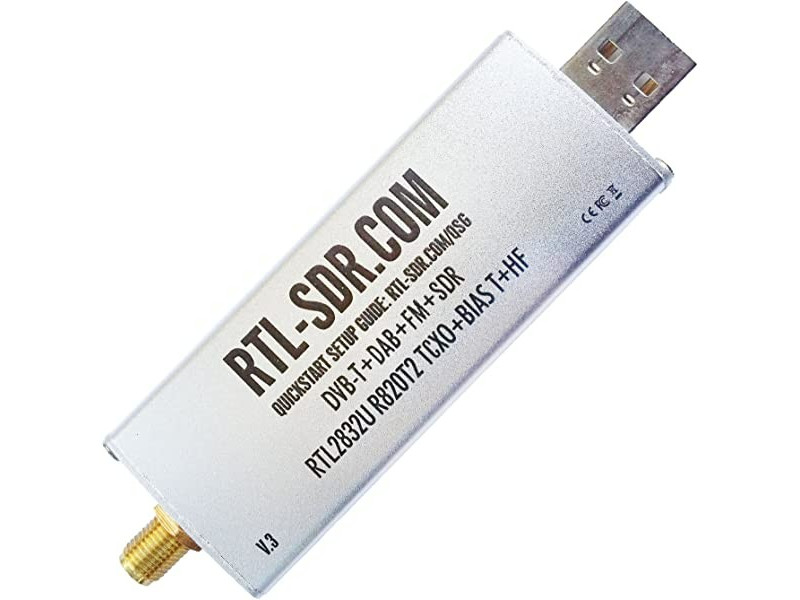

RTL-SDR R820T2 RTL2832U 1PPM TCXO SMA SDR (Silver)
RTL-SDR

RTL-SDR R820T2 RTL2832U 1PPM TCXO SMA SDR (Silver)

Artikelnummer: R820T2RTL2832U-SILVER
Lagersaldo: 14st
En väldigt populär usb-sticka för att komma igÃ¥ng med Software Defined Radio, SDR. Detta är en originalsticka i silver. Denna mottagare kan ta frekvenser frÃ¥n 24Mhz till 1,5Ghz. 1 PPM temperature compensated oscillator (TCXO) – Accurate tuning and almost zeroÂ... läs mer
329 kr

En väldigt populär usb-sticka för att komma igång med Software Defined Radio, SDR. Detta är en originalsticka i silver.

Denna mottagare kan ta frekvenser från 24Mhz till 1,5Ghz.

  • 1 PPM temperature compensated oscillator (TCXO) – Accurate tuning and almost zero temperature drift (2 PPM initial offset, 1 PPM temperature drift)
  • SMA female antenna port – Most dongles use the less common MCX or PAL antenna ports. Ours use SMA which is much more common so more adapters and antennas are available for it. It is also more durable and has lower insertion losses.
  • R820T2 tuner – More sensitive/lower noise floor than the older R820T tuner. 100% compatible with software for the older R820T.
  • Improved component tolerances – Allows the RTL-SDR to work more optimally over all frequencies.
  • Experimental: 4.5V USB powered bias tee - Can be enabled by soldering two pads on the PCB together. This allows the RTL-SDR to power LNA’s (like the LNA4ALL and HABAMP) and active antennas through the coax cable.
  • Experimental: Break out pads for direct sampling - Allows easier soldering to pins 4 & 5 on the RTL2832U for enabling the direct sampling mod.

Mer information om denna SDR-sticka, och även fri mjukvara.

Några av de mjukvaror som kan användas:

SDR#  ("SDR sharp")
HDSDR
SDR-RADIO.COM V2
Linrad (linux)
GQRX(linux)
