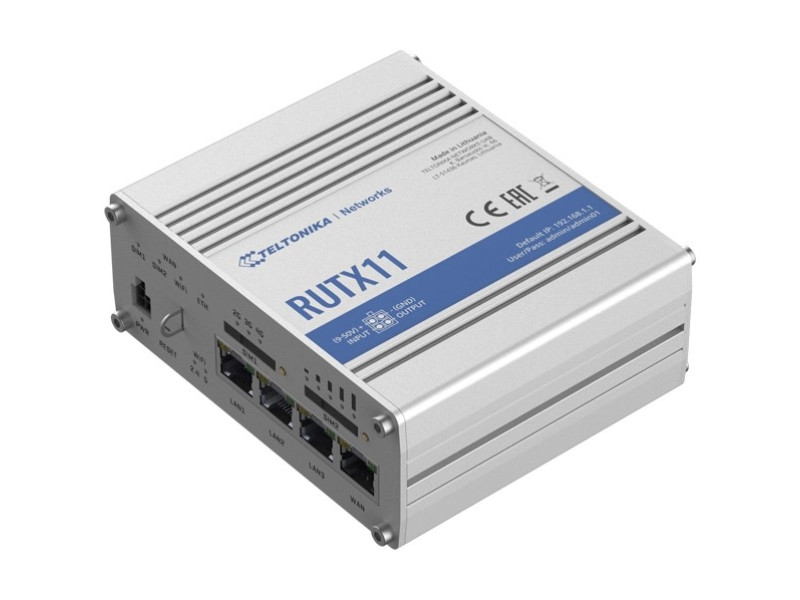

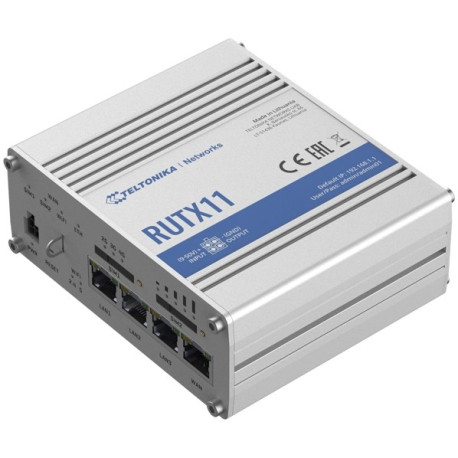

Teltonika RUTX11 LTE Cat6 router med dubbla SIM-kort och WiFi
Lagersaldo: 1st - Passa på Start Guide v2.3
Datablad
RUTX11 Flyer
RUTX11 från Teltonika, driftsäker LTE Cat6 3G/4G router med WiFi
Routern har 3st Gigabit LAN-portar för anslutning till dator/skrivare eller annat. 1st WAN-port för anslutning av tex. ADSL-modem eller liknande ökar tillförlitligheten. Gåt tex fiber-uppkopplingen ner så tar 3G/4G automatiskt över. Denna router har 2st platser för SIM-kort, routern kan alternera mellan simkorten baserat på tillgänglighet. WAN porten går också att konfigurera som en LAN port för att få totalt 4st LAN-portar.
Kan bryggas för att ge publika IP från mobila brebbandet till en underliggande enhet, tex dator eller router. Teltonika RUTX11 har även en inbyggd GPS-mottagare för att kunna leverera GPS-position för visning i antingen routerns adminsida eller till en tredjepartsapplikation
OpenVPN server och Site-To-Site VPN över GRE eller IPSEC
Inbyggda vpn-servrar för att slippa en extra vpn-låda i ditt nätverk. Du kan antingen använda OpenVPN-server för att ansluta klienter direkt till routern, eller konfigurera Site-To-Site VPN över GRE / IPSEC tunnlar, eller kombinera dessa. Givetvis stödjer routern även VPN-passthrough för eventuell befintlig VPN-server.
Riktigt stabil i drift
Produkten är byggt för att vara så stabil och driftsäker som möjligt. En inbyggd watchdog kontrollerar såväl hårdvara som mjukvara och kan starta om routern ifall tex. nätåtkomst skulle tappas. Du kan även starta om den via sms. Möjlighet finns även till att koppla in en extra internetkälla förutom 3G/4G. Du väljer själv vilken som är primär, och går den ena ner tar den andra automatiskt över.
Stöd för DDNS
Dynamiskt uppdatera ett domännamn för att alltid ha samma adress till routern. Alla tjänster som följer DDNS-standard stödjs.
Ping reboot
Konfigurera enheten till att automatiskt starta om vid förlust av internetuppkoppling.
Övrigt

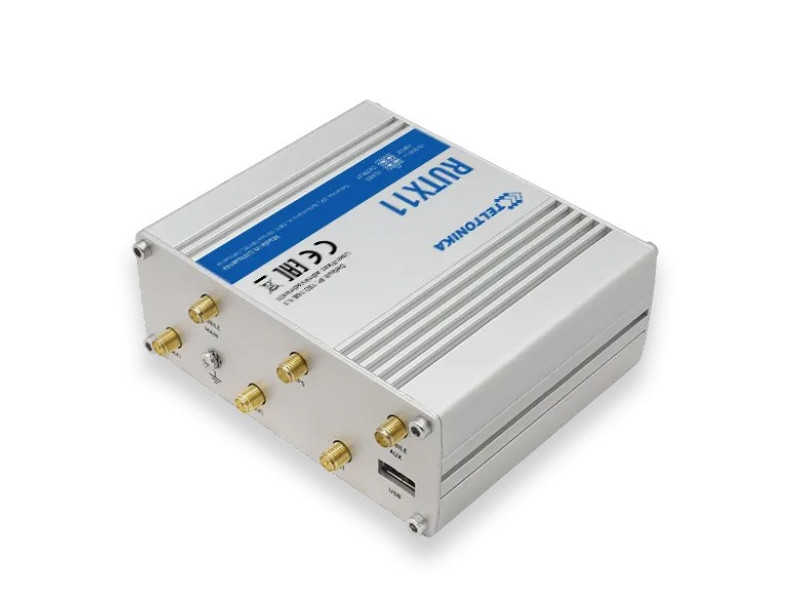

SMA-kontakter (2st main+aux) för 3G/4G-antenn
5 antenner medföljer (2st 3G/4G / 2st WiFi / 1st GPS)
MOBILE | |
---|---|
Mobile module | 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps |
SIM switch (planed) | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
Status | Signal strength, SINR, RSRP, RSRQ, Bytes sent/received |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed) |
Black/White list | Operator black/white list |
Multiple PDN (planed) | Possibility to use different PDNs for multiple network access and services |
Band management | Band lock, Used band status display |
ETHERNET | |
WAN | 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
LAN | 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
NETWORK | |
Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
NetSnapper (optional) | Mobile connection management, data compression VPN client (not available in standard FW) |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT |
VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forwards, traffic rules, custom rules |
DHCP | Static and dynamic IP allocation, DHCP Relay, Relayd |
QoS | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
DDNS | Supported >25 service providers, others can be configured manually |
Network backup | VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover |
Load balancing | Balance your Internet traffic over multiple WAN connections |
SSHFS (optional) | Possibility to mount remote file system via SSH protocol (not available in standard FW) |
SECURITY | |
Authetication | Pre-shared key, digital certificates, X.509 certificates |
Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN | Port based and tag based VLAN separation |
Mobile quota control | Set up custom data limits for both SIM cards |
WEB filter | Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only |
Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN | |
OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
IPsec | IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
GRE | GRE tunnel |
PPTP, L2TP | Client/Server services can run simultaneously |
Stunnel (planed) | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
DMVPN | Method of building scalable IPsec VPNs |
MONITORING & MANAGEMENT | |
WEB UI | HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
FOTA | Firmware update from server, automatic notification |
SSH | SSH (v1, v2) |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
TR-069 (planed) | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
SNMP | SNMP (v1, v2, v3), SNMP trap |
JSON-RPC | Management API over HTTP/HTTPS |
Modbus (planed) | Modbus TCP status/control, master and slave modes |
MQTT | MQTT Broker, MQTT publisher |
RMS | Teltonika Remote Management System (RMS) |
SYSTEM CHARACTERISTICS | |
CPU | Quad-core ARM Cortex A7, 717 MHz |
RAM | 256 MB, DDR3 |
FLASH memory | 256 MB SPI Flash |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA | Update FW/configuration from server |
RMS | Update FW/configuration for multiple devices |
Keep settings | Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION | |
Operating system | RutOS (OpenWrt based Linux OS) |
Supported languages | Busybox shell, Lua, C, C++ |
Development tools | SDK package with build environment provided (planed) |
LOCATION TRACKING | |
GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
NMEA | NMEA 0183 |
Server software | Supported server software: TAVL, RMS |
Mobile Network Geolocation | Get approximate device location on RMS based on mobile cell tower position (without using GPS) |
Geofencing | Configurable multiple geofence zones |
USB | |
Data rate | USB 2.0 |
Applications | Samba share (planed), custom scripts (planed) |
External devices | Possibility to connect external HDD, flash drive, additional modem, printer |
Storage formats | FAT, FAT32, NTFS |
INPUT/OUTPUT | |
Input | 1 x Digital Input |
Output | 1 x Digital Output |
Events | SMS, Email, RMS |
POWER | |
Connector | 4 pin industrial DC power socket |
Input voltage range | 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection |
PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards |
Power consumption | 11 W Max |
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
I/Os | 1 Digital Input, 1 Digital Output on 4 pin power connector |
Status LEDs | 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED |
SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
Power | 4 pin DC connector |
Antennas | 2 x SMA for LTE, 1 x SMA for GNNS |
USB | USB A port for external devices |
Reset | Factory reset button |
PHYSICAL SPECIFICATION | |
Casing material | Full aluminium housing |
Dimensions | 115 mm x 95 mm x 44 mm (H x W x D) |
Weight | 456 g |
Mounting options | DIN rail (can be mounted on two sides), flat surface placement |
OPERATING ENVIRONMENT | |
Operating temperature | -40 C to 75 C |
Operating humidity | 10 % to 90 % non-condensing |
Ingress Protection Rating | IP30 |
REGULATORY & TYPE APPROVALS | |
Regulatory | CE/RED, EAC, RoHS, WEEE |
EMI IMMUNITY | |
Standards | Draft EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0 |
EN61000-4-2:2009 | ESD |
RS | EN 61000-4-3:2006 + A1:2008 + A2:2010 |
EFT | EN 61000-4-4:2012 |
Surge protection | EN 61000-4-5:2014 |
CS | EN 61000-4-6:2014 |
DIP | EN 61000-4-11:2014 |
RF | |
Standards | EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.2, EN303 413 V1.1.1 |
SAFETY | |
Standards | IEC 62368-1:2014, EN 62368-1:2014 + A11:2017 EN 50665:2017, EN 62311:2008 |
MOBILE | |
---|---|
Mobile module | 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps |
SIM switch (planed) | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
Status | Signal strength, SINR, RSRP, RSRQ, Bytes sent/received |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed) |
Black/White list | Operator black/white list |
Multiple PDN (planed) | Possibility to use different PDNs for multiple network access and services |
Band management | Band lock, Used band status display |
ETHERNET | |
WAN | 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
LAN | 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
NETWORK | |
Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
NetSnapper (optional) | Mobile connection management, data compression VPN client (not available in standard FW) |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT |
VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forwards, traffic rules, custom rules |
DHCP | Static and dynamic IP allocation, DHCP Relay, Relayd |
QoS | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
DDNS | Supported >25 service providers, others can be configured manually |
Network backup | VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover |
Load balancing | Balance your Internet traffic over multiple WAN connections |
SSHFS (optional) | Possibility to mount remote file system via SSH protocol (not available in standard FW) |
SECURITY | |
Authetication | Pre-shared key, digital certificates, X.509 certificates |
Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN | Port based and tag based VLAN separation |
Mobile quota control | Set up custom data limits for both SIM cards |
WEB filter | Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only |
Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN | |
OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
IPsec | IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
GRE | GRE tunnel |
PPTP, L2TP | Client/Server services can run simultaneously |
Stunnel (planed) | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
DMVPN | Method of building scalable IPsec VPNs |
MONITORING & MANAGEMENT | |
WEB UI | HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
FOTA | Firmware update from server, automatic notification |
SSH | SSH (v1, v2) |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
TR-069 (planed) | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
SNMP | SNMP (v1, v2, v3), SNMP trap |
JSON-RPC | Management API over HTTP/HTTPS |
Modbus (planed) | Modbus TCP status/control, master and slave modes |
MQTT | MQTT Broker, MQTT publisher |
RMS | Teltonika Remote Management System (RMS) |
SYSTEM CHARACTERISTICS | |
CPU | Quad-core ARM Cortex A7, 717 MHz |
RAM | 256 MB, DDR3 |
FLASH memory | 256 MB SPI Flash |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA | Update FW/configuration from server |
RMS | Update FW/configuration for multiple devices |
Keep settings | Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION | |
Operating system | RutOS (OpenWrt based Linux OS) |
Supported languages | Busybox shell, Lua, C, C++ |
Development tools | SDK package with build environment provided (planed) |
LOCATION TRACKING | |
GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
NMEA | NMEA 0183 |
Server software | Supported server software: TAVL, RMS |
Mobile Network Geolocation | Get approximate device location on RMS based on mobile cell tower position (without using GPS) |
Geofencing | Configurable multiple geofence zones |
USB | |
Data rate | USB 2.0 |
Applications | Samba share (planed), custom scripts (planed) |
External devices | Possibility to connect external HDD, flash drive, additional modem, printer |
Storage formats | FAT, FAT32, NTFS |
INPUT/OUTPUT | |
Input | 1 x Digital Input |
Output | 1 x Digital Output |
Events | SMS, Email, RMS |
POWER | |
Connector | 4 pin industrial DC power socket |
Input voltage range | 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection |
PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards |
Power consumption | 11 W Max |
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
I/Os | 1 Digital Input, 1 Digital Output on 4 pin power connector |
Status LEDs | 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED |
SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
Power | 4 pin DC connector |
Antennas | 2 x SMA for LTE, 1 x SMA for GNNS |
USB | USB A port for external devices |
Reset | Factory reset button |
PHYSICAL SPECIFICATION | |
Casing material | Full aluminium housing |
Dimensions | 115 mm x 95 mm x 44 mm (H x W x D) |
Weight | 456 g |
Mounting options | DIN rail (can be mounted on two sides), flat surface placement |
OPERATING ENVIRONMENT | |
Operating temperature | -40 C to 75 C |
Operating humidity | 10 % to 90 % non-condensing |
Ingress Protection Rating | IP30 |
REGULATORY & TYPE APPROVALS | |
Regulatory | CE/RED, EAC, RoHS, WEEE |
EMI IMMUNITY | |
Standards | Draft EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0 |
EN61000-4-2:2009 | ESD |
RS | EN 61000-4-3:2006 + A1:2008 + A2:2010 |
EFT | EN 61000-4-4:2012 |
Surge protection | EN 61000-4-5:2014 |
CS | EN 61000-4-6:2014 |
DIP | EN 61000-4-11:2014 |
RF | |
Standards | EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.2, EN303 413 V1.1.1 |
SAFETY | |
Standards | IEC 62368-1:2014, EN 62368-1:2014 + A11:2017 EN 50665:2017, EN 62311:2008 |
Förklaring av frekvensband
När du ska välja antenn, var uppmärksam på vilka frekvensband som antennen har stöd för. Beroende på vilken operatör och vart antennen kommer användas varierar frekvensbanden. Större städer använder sig av 2600MHz medan mindre orter använder sig av 800/900MHz med lite stödband emellan så som 1800/2100MHz.
Ett högre frekvensband ger en högre hastighet men har även kortare räckvidd. Detsamma gäller antennen, har du en basstation som sänder på 2600MHz så blir din antenn, antennkabel och placeringen av antennen viktigare än på ett lägre frekvensband. Förklaring av signalförlust går vi igenom snart. Högre frekvensband betyder även kortare räckvidd från basstation.
450MHz (täckningsband) även känt som Net1-bandet är det frekvensbandet som täcker mest yta i Sverige. Därför är Net1 kända för att kunna ha mottagning där andra operatörer inte har en chans, men med låg ned- och uppladdningshastigheter. Anledningen till varför detta band kallas för Net1 är pga. att företaget Net1 har ensamrätt på detta frekvensband.
800MHz (täckningsband) används av alla vanliga operatörer om man bortser från Net1. Det låga frekvensbandet gör så att 800MHz täcker mycket yta. Därför används bandet utanför storstäder eller mindre orter. 800MHz är det mest använda frekvensbandet runt om i Europa.
900MHz (täckningsband) är det bandet som Tele2 och Telenor inledningsvis använde som täckningsband. 900MHz är ett mer ovanligt LTE-band och i början orsakade bandet lite problem när klienterna (mobiltelefoner m.m.) inte kunde ansluta mot 900MHz. Idag så har mobiltillverkarna anpassat mobilerna för att kunna kommunicera på 900MHz.
1800MHz (kapacitetband) är det senaste frekvensbandet som lanserats. Alla operatörer använder idag detta band i storstadskärnor (bortsett från Net1).
2600MHz (kapacitetband) är ett väldigt välanvänt frekvensband runtom hela Europa. 2600MHz är det högsta frekvensbandet som används för LTE, detta innebär att bandet även har kortast räckvidd jämfört med 800/900MHz. På grund av den höga kapaciteten så används bandet i storstadsmiljöer där det krävs många basstationer för att täcka så mycket yta som möjligt och ha så hög kapacitet som möjligt.
Frekvensplan 4G
Frekvensband | Net1 | Tele2 | Telia | Telenor | Tre |
---|---|---|---|---|---|
450MHz (Band 31) | |||||
800MHz (Band 20) | |||||
900MHz (Band 8) | |||||
1800MHz (Band 3) | |||||
2600MHz (Band 38) |
