Stabilt mobilt bredband för hemmet, RUTX11 & Riktantenner

Artikelnummer: RUTX11-LPDA-A0092
Lagersaldo: Finns i lager
Ett fullfjädrat mobilt bredband där man inte kompromissar överhuvudtaget! Paketet är utrustat med 2st LPDA-A0092 riktantenner, 1st ±45° V-format polarisationsfäste för optimal MIMO och 1st Huawei B535-333 av uppdaterad variant med LTE Cat.13 stöd. Antennen LPDA-A00... läs mer
Fri frakt
7 458 kr
Ord. pris 8 019 kr

Ett fullfjädrat mobilt bredband där man inte kompromissar överhuvudtaget!

Paketet är utrustat med 2st LPDA-A0092 riktantenner, 1st ±45° V-format polarisationsfäste för optimal MIMO och 1st Huawei B535-333 av uppdaterad variant med LTE Cat.13 stöd.

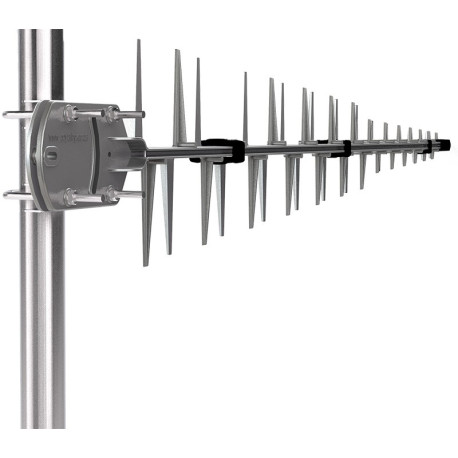

Antennen LPDA-A0092 från Poynting är en väldigt omtyckt och kraftfull antenn som funnits med på marknaden i många år. Det breda 3G/4G stödet gör denna antenn till herren på täppan och detta paket är verkligen att rekommendera för den som har plats på taket. Antennen har även stöd för 5G (3400-3800MHz) upp till 3dBi, lite lägre än andra motsvarigheter men med 4G i fokus så är denna antenn bäst i test.

  • Monteringsdetaljer för att montera på rörfäste medföljer. - Notera att byglarna används för fästet som är inkluderat i paketet och fästet kommer med egna skruvar som används för att sätta fast antennerna på fästet.
  • 7 meter HDF-195 Low Loss antennkabel med kontakt SMA-Hane.
  • Stödjer frekvenserna 698-960/1710-2700/3400-3800MHz.

Tillsammans med antennerna så använder man sig av en s.k. MIMO-konfiguration av antennerna, detta görs bäst och smidigast via en ±45° V-formats fäste för att optimera antennernas vinkel och undvika att elementen skulle skymma varann. Fästet gör även att installationen blir mycket enklare och "kråkboet" blir lite vackrare även för känsliga tittare.

Som Router har vi valt en riktigt stabil modell från tillverkaren Teltonika. RUTX11 erbjuder otroligt mycket olika funktioner som OpenVPN server och Site-To-Site VPN för GRE och IPSEC, DDNS, Ping reboot, SMS och mycket mer (se teknisk specifikation nedanför). Routern är av en LTE Cat.6 som ger en bra hastighet men det som ifrånsätter denna router mot många andra är just stabiliteten som den erbjuder. Dubbla SIM-portar för den som vill växla mellan olika operatörer utan något krångel. RMS-system vilket möjliggör att du från vart du än är i världen kan komma åt din router för att sköta anpassningar.

Och såklart har den 2st SMA-Honor, plug-n-play.

Paketet innehåller

1 st

Teltonika RUTX11 LTE Cat6 router med dubbla SIM-kort och WiFi

RUTX11 RUTX11 från Teltonika, driftsäker LTE Cat6 3G/4G router  med WiFi Routern har 3st Gigabit LAN-portar för anslutning till dator/skrivare eller annat
4083 kr/st 4390 kr ord. pris inkl.moms Finns i lager
2 st

Poynting Riktantenn 11dBi SMA med kabel 698-3800 MHz (3G, 4G, 5G)

LPDA-A0092 Vi rekommenderar varmt denna till alla som har möjlighet att montera den. Mycket populär och beprövad antenn för alla mobila bredbandsnät Ger fö
1293 kr/st 1390 kr ord. pris inkl.moms Finns i lager
1 st

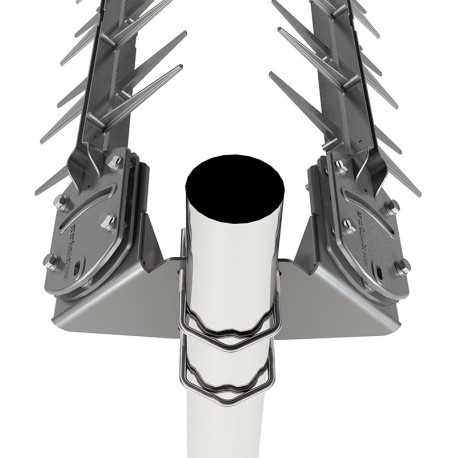

Poynting V-Form Horizontal/Vertical mount Bracket

A-BRKT-033 Poynting ±45° V-format polarisationsfäste i galvaniserat och laserskuret stål för LPDA-A0092 och OMNI-69/275/291. Detta speciella fäste tillåter Po
790 kr/st 849 kr ord. pris inkl.moms Finns i lager
Teknisk specifikation antenn
Frekvensband 698-960MHz
1710-2700MHz
3400-3800MHz
Förstärkning 11 dBi på 4G 2600-bandet
11 dBi på 4G 1800-bandet
11 dBi på 4G 800-bandet
11-12 dBi på 3G-banden
12 dBi på GSM-banden
3 dbi, 3400-3800 MHz (5G)
Impedans 50 Ohm
Fäste Mastfäste
Placering Utomhus
Max uteffekt 10W
Antennsladd 7 m
Kabelanslutning SMA-hane
Storlek 100 x 18 x 6 cm
Teknisk Specifikation Router
MOBILE
Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch (planed) 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed)
Black/White list Operator black/white list
Multiple PDN (planed) Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
ETHERNET
WAN 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover
Load balancing Balance your Internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
Authetication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port based and tag based VLAN separation
Mobile quota control Set up custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously
Stunnel (planed) Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
MONITORING & MANAGEMENT
WEB UI HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069 (planed) OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
Modbus (planed) Modbus TCP status/control, master and slave modes
MQTT MQTT Broker, MQTT publisher
RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH memory 256 MB SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided (planed)
LOCATION TRACKING
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server software Supported server software: TAVL, RMS
Mobile Network Geolocation Get approximate device location on RMS based on mobile cell tower position (without using GPS)
Geofencing Configurable multiple geofence zones
USB
Data rate USB 2.0
Applications Samba share (planed), custom scripts (planed)
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS
INPUT/OUTPUT
Input 1 x Digital Input
Output 1 x Digital Output
Events SMS, Email, RMS
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
Power consumption 11 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/Os 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 4 pin DC connector
Antennas 2 x SMA for LTE, 1 x SMA for GNNS
USB USB A port for external devices
Reset Factory reset button
PHYSICAL SPECIFICATION
Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 44 mm (H x W x D)
Weight 456 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory CE/RED, EAC, RoHS, WEEE
EMI IMMUNITY
Standards Draft EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0
EN61000-4-2:2009 ESD
RS EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge protection EN 61000-4-5:2014
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2014
RF
Standards EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.2, EN303 413 V1.1.1
SAFETY
Standards IEC 62368-1:2014, EN 62368-1:2014 + A11:2017
EN 50665:2017, EN 62311:2008
Teknisk specifikation antenn
Frekvensband 698-960MHz
1710-2700MHz
3400-3800MHz
Förstärkning 11 dBi på 4G 2600-bandet
11 dBi på 4G 1800-bandet
11 dBi på 4G 800-bandet
11-12 dBi på 3G-banden
12 dBi på GSM-banden
3 dbi, 3400-3800 MHz (5G)
Impedans 50 Ohm
Fäste Mastfäste
Placering Utomhus
Max uteffekt 10W
Antennsladd 7 m
Kabelanslutning SMA-hane
Storlek 100 x 18 x 6 cm
Teknisk Specifikation Router
MOBILE
Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch (planed) 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed)
Black/White list Operator black/white list
Multiple PDN (planed) Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
ETHERNET
WAN 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover
Load balancing Balance your Internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
Authetication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port based and tag based VLAN separation
Mobile quota control Set up custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously
Stunnel (planed) Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
MONITORING & MANAGEMENT
WEB UI HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069 (planed) OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
Modbus (planed) Modbus TCP status/control, master and slave modes
MQTT MQTT Broker, MQTT publisher
RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH memory 256 MB SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided (planed)
LOCATION TRACKING
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server software Supported server software: TAVL, RMS
Mobile Network Geolocation Get approximate device location on RMS based on mobile cell tower position (without using GPS)
Geofencing Configurable multiple geofence zones
USB
Data rate USB 2.0
Applications Samba share (planed), custom scripts (planed)
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS
INPUT/OUTPUT
Input 1 x Digital Input
Output 1 x Digital Output
Events SMS, Email, RMS
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
Power consumption 11 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/Os 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 4 pin DC connector
Antennas 2 x SMA for LTE, 1 x SMA for GNNS
USB USB A port for external devices
Reset Factory reset button
PHYSICAL SPECIFICATION
Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 44 mm (H x W x D)
Weight 456 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory CE/RED, EAC, RoHS, WEEE
EMI IMMUNITY
Standards Draft EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0
EN61000-4-2:2009 ESD
RS EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge protection EN 61000-4-5:2014
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2014
RF
Standards EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.2, EN303 413 V1.1.1
SAFETY
Standards IEC 62368-1:2014, EN 62368-1:2014 + A11:2017
EN 50665:2017, EN 62311:2008

Skriv en recension
