Times Microwave Systems LMR-600 lösmeterkablage

LMR-600  Söker du kablage i anpassad kabellängd med kontakter på? Se denna länk.  Detta är en Times Microwave Systems LMR-600 originalkablage. LMR-600 Coaxial cable is and extremely popular product within the Times Microwave LMR coaxial cable range. The LMR range ... läs mer
Artikelnummer: LMR-600-X
Lagersaldo: Fler än 100st
Datablad
99 kr

LMR-600

Söker du kablage i anpassad kabellängd med kontakter på? Se denna länk

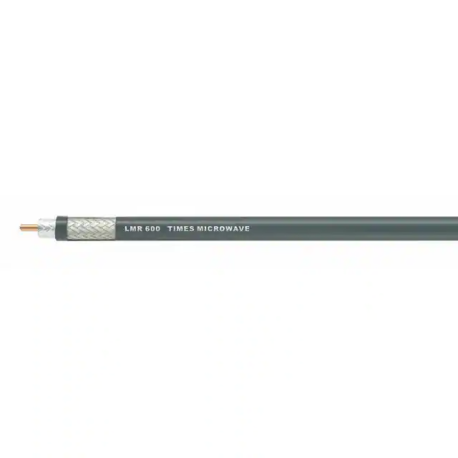

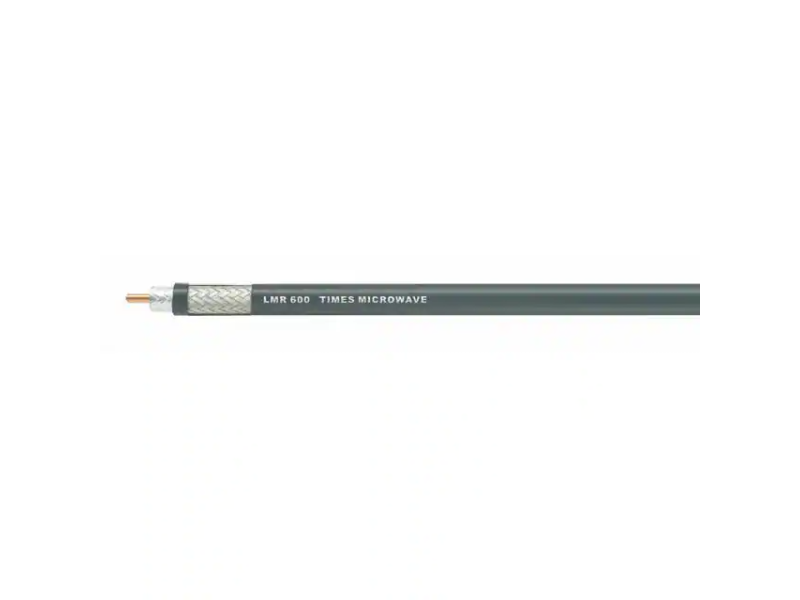

Detta är en Times Microwave Systems LMR-600 originalkablage.

LMR-600 Coaxial cable is and extremely popular product within the Times Microwave LMR coaxial cable range. The LMR range is recognised globally as the industry standard ultra low loss, flexible, low cost, lightweight, DC – 6GHz coaxial cable solution for many RF applications. This is also backed up by the best warranty and technical support in the business.

Why choose LMR-600?

LMR-600 is the most popular coaxial cable in the industry due to its excellent reliability, surpassed flexibility and ultra low attenuation. The LMR-600 cable has loss figures comparable to the extremely rigid corrugated coaxial cables however manages to achieve surpassed flexibility, making the cable much easier to install. Installing the connectors on the LMR-600 cable versus corrugated copper cables in much quicker and simpler.

How is the LMR-600 low loss figures achieved?

This is achieved due to the cable construction specifications. The centre conductor uses a high conductivity, Bare copper clad covered aluminium centre conductor material. The dielectric is nitrogen injected, foamed, closed cell, Polyethylene which helps achieve 85% Velocity of Propagation. The Dielectric has an Aluminium foil outer conductor, which is chemically bonded on to it. Due to the cable construction, The attenuation is significantly lower as compared to single shielded coaxial cables: RF shielding of LMR-600 is > 90 db.

Outer Jacket

All standard LMR coaxial cable comes with a UV resistant, PE Jacket. This helps to ensure the cable jacket can withstand harsh outside environments and UV rays from sunlight, this is designed to last for up to 20 years of outdoor service.

Frequency Operating Band

LMR-600 is designed to operate excellent from DC – 6GHz. For any frequency band at VHF and above LMR is the obvious choice.

 Applications

 LMR-600 Flexible Low Loss Communications Coaxial Cable is ideal for:

  • Jumper Assemblies in Wireless Communications Systems
  • Short Antenna Feeder runs
  • WLL
  • GPS
  • LMR
  • WLAN
  • WISP
  • WiMAX
  • SCADA
  • 3G or 4G repeaters
  • Radio antennas or receivers
  • VSAT Applications
  • TVRO
  • VHF Radio communications
  • UHF Radio communications

Attenuation dB figures per 100m

30 MHz : 1.4 dB

50 MHz : 1.8 dB

150 MHz : 3.2 dB

220 MHz : 3.9 dB

450 MHz : 5.6 dB

900 MHz : 8.2 dB

1500 MHz : 10.9 dB

2000 MHz : 12.8 dB

2500 MHz: 14.5 dB

5800 MHz: 23.8 dB

8000 MHz: 29.0 dB

Temperature range: -40⁰C – +85⁰C

Inner Conductor: Solid BCCAI (4.47mm)

Dielectric: Foam PE (11.56mm)

Outer conductor: Aluminium tape (11.71mm)

Overall Braid: Tinned copper (12.45mm)

Jacket: Black PE (14.99mm)

Mechanical Specifications

Bend Radius: installation 38.1mm

Bend Radius: repeated 152.4mm

Bending Moment: 3.73Nm

Weight lb/ft  0.20 Kg/M

Tensile Strength  158.9 Kg

Flat Plate Crush: 1.07Kg/mm
