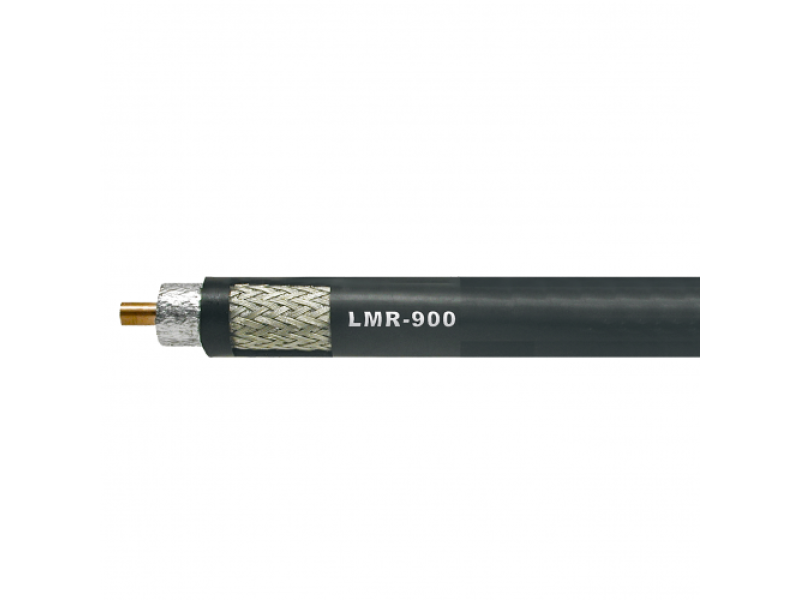

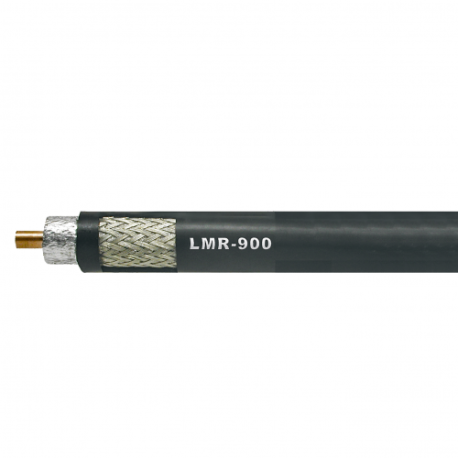

Times Microwave Systems LMR-900 lösmeterkablage

Artikelnummer: LMR-900-DB-X
Lagersaldo: 90st
Datablad
LMR-900-DB Söker du kablage i anpassad kabellängd med kontakter på? Se denna länk.  Detta är en Times Microwave Systems LMR-900-DB originalkablage. LMR-400 cable is a Flexible Low Loss Communications Coaxial cable, supplied in any length – manufactured by Times M... läs mer
299 kr

LMR-900-DB

Söker du kablage i anpassad kabellängd med kontakter på? Se denna länk

Detta är en Times Microwave Systems LMR-900-DB originalkablage.

LMR-400 cable is a Flexible Low Loss Communications Coaxial cable, supplied in any length – manufactured by Times Microwave Systems and available from McGill Microwave  – Authorised Distributor of all Times Microwave products.

LMR-400 Coaxial cable is the most popular product within the Times Microwave LMR coaxial cable range. The LMR range is recognised globally as the industry standard ultra low loss, flexible, low cost, lightweight, DC – 6GHz coaxial cable solution for many RF applications. This is also backed up by the best warranty and technical support in the business.

Why choose LMR-400?

LMR-400 is an extremely popular coaxial cable in the industry due to its excellent reliability, unsurpassed flexibility and ultra low attenuation. The LMR-400 cable has loss figures comparable to the extremely rigid corrugated coaxial cables however manages to achieve similar flexibility to that of high loss RG Cables. LMR-400 is around 40% lower attenuation than RG-8, RG 213, RG 214 and 9913 Air-Dielectric type Cables.

How is the LMR-400 low loss figures achieved?

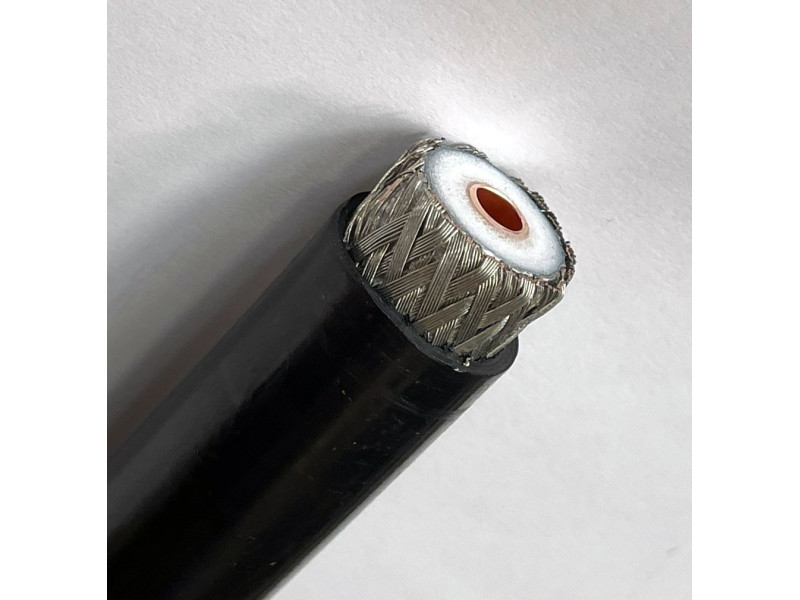

This is achieved due to the cable construction specifications. The centre conductor uses a high conductivity, Bare copper clad covered aluminium centre conductor material. The dielectric is nitrogen injected, foamed, closed cell, Polyethylene which helps achieve 84% Velocity of Propagation. The Dielectric has a Aluminium foil outer conductor, which is chemically bonded on to it. Due to the cable construction, The attenuation is significantly lower as compared to single shielded coaxial cables: RF shielding of LMR-400 is > 90 db as compared to 40 dB for RG8.

Outer Jacket

All standard LMR coaxial cable comes with a UV resistant, PE Jacket. This helps to ensure the cable jacket can withstand harsh outside environments and UV rays from sunlight, this is designed to last for up to 20 years of outdoor service.

Frequency Operating Band

LMR-400 is designed to operate excellent from DC – 6GHz. For any frequency band at VHF and above LMR is the obvious choice.

Should you find your RF system operates at above 1GHz, LMR is once again, your best option, as RG cable typically isn’t compatible with any frequency in excess of 1GHz.

 Applications

 LMR-400 Flexible Low Loss Communications Coaxial Cable is ideal for:

  •  Drop-in replacement with up to 40% Lower Attenuation for RG-8 , RG 213 ,RG 214 and 9913 Air-Dielectric type Cables
  •  Jumper Assemblies in Wireless Communications Systems
  •  Short Antenna Feeder runs
  • WLL
  • GPS
  • LMR
  • WLAN
  • WISP
  • WiMAX
  • SCADA
  • 3G or 4G repeaters
  • Radio antennas or receivers
  • VSAT Applications
  • TVRO

Attenuation dB figures per 100m

30 MHz : 2.2dB

50 MHz : 2.9dB

150 MHz : 5.0dB

220 MHz : 6.1dB

450 MHz : 8.9dB

900 MHz : 12.8dB

1500 MHz : 16.8dB

2500 MHz : 22.2dB

Temperature range: -40⁰C – +85⁰C

Inner Conductor: Solid BCCAI (2.74mm)

Dielectric: Foam PE (7.24mm)

Outer conductor: Aluminium tape (7.39mm)

Overall Braid: Tinned copper (8.13mm)

Jacket: Black PE

Mechanical Specifications

Bend Radius: installation 25.4mm

Bend Radius: repeated 101.6mm

Bending Moment: 0.68Nm

Weight lb/ft  0.10 Kg/M

Tensile Strength  72.6 Kg

Flat Plate Crush: 0.71Kg/mm
