Teltonika FM1120 GPS-tracker med inbyggt batteri inkl antenner
Teltonika

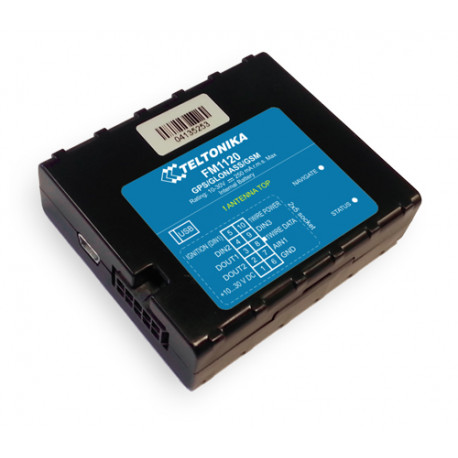

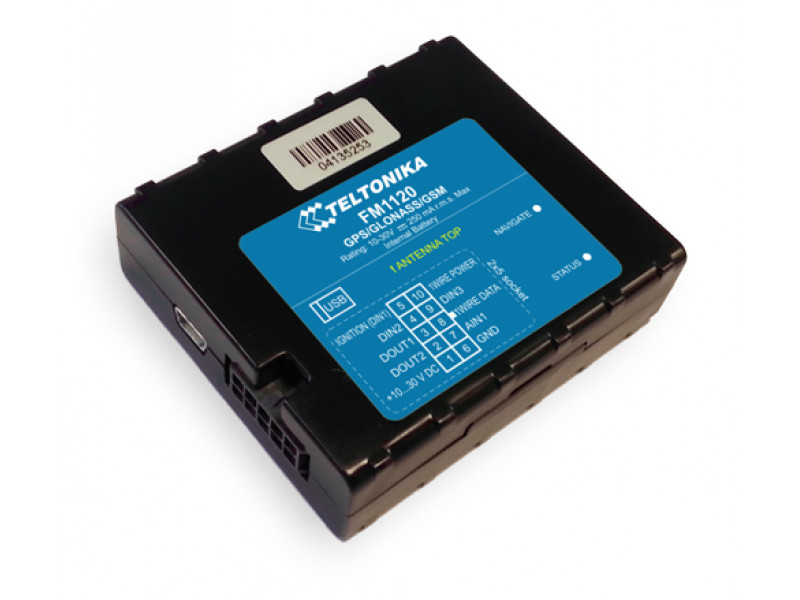

Teltonika FM1120 GPS-tracker med inbyggt batteri inkl antenner

Artikelnummer: FM1120
Utgått ur sortimentet

GPS spårare som skickar kordinater via SMS

  • Small size
  • Internal GPS/GSM antennas
  • Internal backup battery
  • Car tracking
  • Parametrized operation (acquire & send)
  • Integrated scenarios
  • Overspeeding
  • Authorized driving (50 iButton keys)
  • Immobilizer
  • Online tracking
  • Low energy consumption in deep sleep mode

FM1120 is light real-time tracking terminal with GPS/GLONASS and GSM connectivity, which is able to collect device coordinates and other useful data and transfer them via GSM network to server .
This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.
In case of losing connection FM1120 can store up to 8000 records, and once the connection is established the device will send stored data via GPRS.
So you won't lose your data (coordinates, sensors data and etc.).

FM1120 can perform tasks on remote objects, such as monitoring engine status, controlling truck's door etc.

GSM:

  • Quad-band 900/1800 MHz; 850/1900 MHz
  • GPRS class 10 (up to 85,6 kbps);
  • SMS (text/data)

GPS/GLONASS:

  • NMEA protocol compatible.

Messages:

  • GGA, GGL, GSA, GSV, RMC, VTG, TXT
  • 32 channel GPS/GLONASS receiver
  • Not less than -160 dBm

Interface:

  • 1 Digital Input Reserved for Ignition Status Monitoring
  • 2 Digital Inputs
  • 1 Analog Input (10V or 30V range)
  • 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
  • 1-Wire® temperature sensor
  • 1-Wire® iButton
  • Motion sensor
  • Power supply (+10...+30) V DC
  • Internal GSM antenna
  • Internal GPS/GLONASS antenna
  • Integrated backup battery
  • 2 Status LEDs
  • USB Port
  • Configuration and firmware upload (FOTA and via USB cable)


Features:

  • Small and easy to mount case
  • Internal  GSM  antenna  and  Internal  GPS/GLONASS antenna  allow  mount FM1120  much easier
  • GPS/GLONASS and I/O data acquisition
  • Real Time tracking
  • Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
  • Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
  • Smart algorithm of GPRS connections (GPRS traffic saving)
  • Operating in roaming networks (preferred GSM providers list)
  • Events on I/O detection and sending via GPRS or SMS.
  • Scheduled 24 coordinates SMS sending
  • 5 geofence zones (rectangular or circle)
  • Auto  Geofencing  crested  for  car  towing  detection  and  car  theft  prevention
  • Deep Sleep mode (less  than  2  mA power  consumption)
  • FOTA (firmware updating via GPRS)
  • 3  operational  modes (Home,  Roaming,  Unknown)  based  on  operator
  • Integrated  scenarios:
  • Over  speeding  to  secure  driver  and  prevent  penalties
  • Immobilizer  function
  • Authorized  driving  (1-Wire®  iButton  ID  keys  up  to  50  iButton  keys)use  to  prevent  stealing  or indicate  drivers
  • Trip  start  and  end  detection
  • FM1120  supports  a  remote  logs  reading
  • FM1120  supports  remote  diagnostic  logs  functionality  using  GPRS.
  • Possible  issues  resolving  becomes faster.
  • Manufacturer can  read  logs  remotely  using  SMS/GPRS  to  diagnose  the  FM1120  and  timely  respond to  the  fault

Application:

  • Track and trace
  • Road assistance
  • International logistics
  • Personal car's and van tracking
  • Fleet management
