Creasol Multi - Universal multi-frequency remote control duplicator

Artikelnummer: creMul
Utgått ur sortimentet

Universal multi-frekvens dubblerings fjärrkontroll

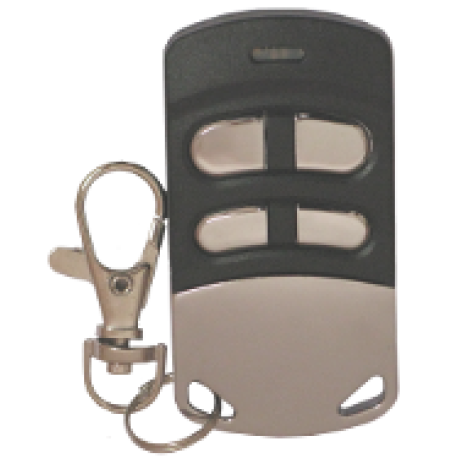

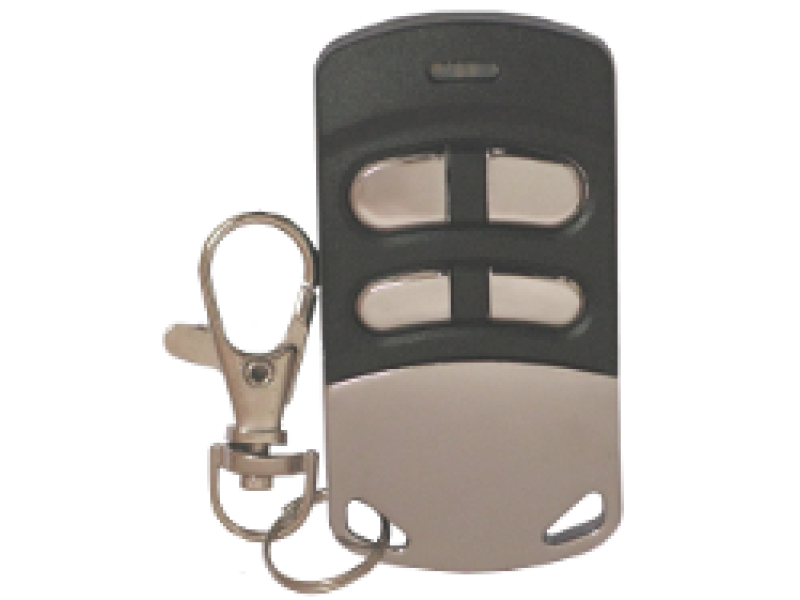

This device is able to duplicate several types of remote control for gates, garage doors, barriers, which transmit in frequencies between 286 and 868 MHz. Each button is independent, so it's possible to clone up to 4 different remote controls, even if they operates in different frequencies. creMul3_150

Duplication
Duplication is very very easy, and do NOT require any external equipment (frequency counter, programming machine, sniffer):
Press together buttons 1 and 2, until LED becomes green.
Release all buttons.
Press the button where you wish to duplicate the original remote control.
Start to transmit by pressing and holding the button on the original remote control, keeping it at 10cm from this device.
When duplication ends, LED flashes 2 times in case of fixed code, or 4 times in case of rolling code. Then LED becomes green and duplication procedure restart from point 3.

After duplication, each button should be pressed at least 2 times to assure that the gate or garage works correctly.

Creasol UniLock can be used to:
- Open the main entrance door by almost any type of remote control
- Open the pedestrian gate
- Open any system which uses an electric lock

Installing instructions

This device has 3 wires, one of which is used as antenna and should not be connected anywhere. Two wires should be connected to the existing switch, so a little current (20mA) will pass through the electric lock supplying Creasol UniLock.
Check the voltage on the existing switch: it should be in the range 9÷24Vdc or 9÷18Vac.
Measure the current through the existing switch: it should be in the range 0,5÷3.2Aac or 0.5÷3.5Adc.
Connect the 2 wires marked as Supply in parallel to the existing switch.
Configure the frequency you wish to use, pressing Prog button for 5 times: LED shows the current programmed frequency, for example it flashes twice to indicate 433.92 MHz. Then press again Prog button N times, as indicated in the frequency table (for example 3 times for 868.3 MHz).
Configure the number of pulses, pressing Prog button 6 times: LED flashes to indicate the current configuration. Press Prog button again to set the desired number.
Configure the pulse length, pressing Prog button 7 times: LED flashes to indicate the current configuration. Press Prog button again to set the desired length.

Learning remote controls
Press the Prog button twice to enable learning mode: then it's possible to press a button on the existing remote control, within 10s, to learn it. Every time a new code is learned, the 10s timeout is reload.
LED flashes 2 times if the remote control has been learned, 3 times if it was already learned, 6 times if memory is full.

Removing remote controls
Press the Prog button 3 times, then it's possible to transmit, within 10s, from the remote control that need to be removed: LED flashes 4 times indicating that the remote control has been removed.
Alternatively, to blank memory (remove all remote controls), press Prog button for 10 times, LED flashes 10 times, then press again Prog button 3 times.

Learning "master" remote controls
Press the Prog button 4 times and follow the same procedure to learn remote controls: in this case it's possible to learn one or more "master" remote control, which can be used only to enable the learning procedure remotely, without the need to press the Prog button. Note that "master" remote controls do NOT activate the door opener output.
To learn new remote controls in this way, put the "master" remote control in trasmission for 1-2 seconds, then start to transmit for 1-2 seconds from the new remote controls: every time a new remote control is learned, the 10s timer is reload to permit successive learnings.

?
