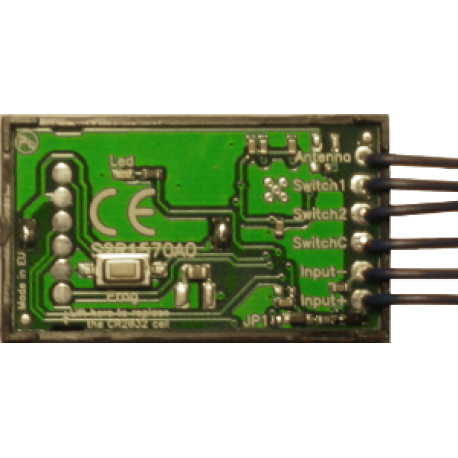

Creasol SenderBatt - Power failure monitor + 3 channels transmitter/duplicator
Creasol
Creasol SenderBatt - Power failure monitor + 3 channels transmitter/duplicator
Artikelnummer: creSenderBatt
Utgått ur sortimentet
Utgått ur sortimentet
Creasol SenderBatt - Blackout monitor and transmitter/duplicator (convert external switch/button into transmitters)
Strömavbrotts monitor + 3 kanals sändare
This compact transmitter, only 29x29x10mm, is able to copy up to 4 original remote controls which transmit a fixed code in the supported frequencies, listed in the Tab.1.
The transmission frequency, power (from 10uW to 10mW), length (number of telegrams that should be transmitted) and other parameters, can be simply configured, for any channel, using the Prog button: any channel is indipendent from the other, so it's possible, for example, to have one channel programmed to transmit at 433.92MHz, another one for 868.3 MHz, and so on.
Configuring for each channel the appropriate transmission power, it is possible to minimize interferences and collisions, or to maximize the distance: it has a very long range when the maximum transmission power is selected.
It can be used to open a gate, garage door or traffic barrier, as like as other home automations (domotic appliances). Four channels are available:
Channel 1: when external switch/button 1 is pressed
Channel 2: when external switch/button 2 is pressed
Channel 3: when both external switch/button 1+2 are pressed
Channel 4: when power failure has been detected (blackout, when external monitored voltage falls down from 9-24Vdc to 0V)
It's supplied by the internal CR2032 3V battery.
When one or both external switches are pressed (closed), the device start to transmit the code that was previously learned, or the random code that was factory programmed.
When external voltage falls down to 0V, the device start transmitting, to notify the blackout event to a domotic controller or other monitoring/alarm device. Normally, external monitored voltage should be in the range 9Vdc to 24Vdc.
Connection diagram from Creasol SenderBatt transmitter / power failure monitor
